Functions
Nr
Description
1
2
3
5
6
4
8
11
12
9
10
7
1 Close shutter
2 Open shutter
3 Button pressed indicator
4 Open Lens menu
5 Menu navigation keys
6 Move back one level in menu system
7 Open Source menu
8 Power on / Power off
Note: Only shifts power between Ready and ON
mode.
9 OSD menu on / off
10 Menu confirmation
11 Activate or deactivate the GUI menu.
Note: If pressed while the projector is in stand-by
mode, this will also power up the projector.
12 Open Test pattern menu

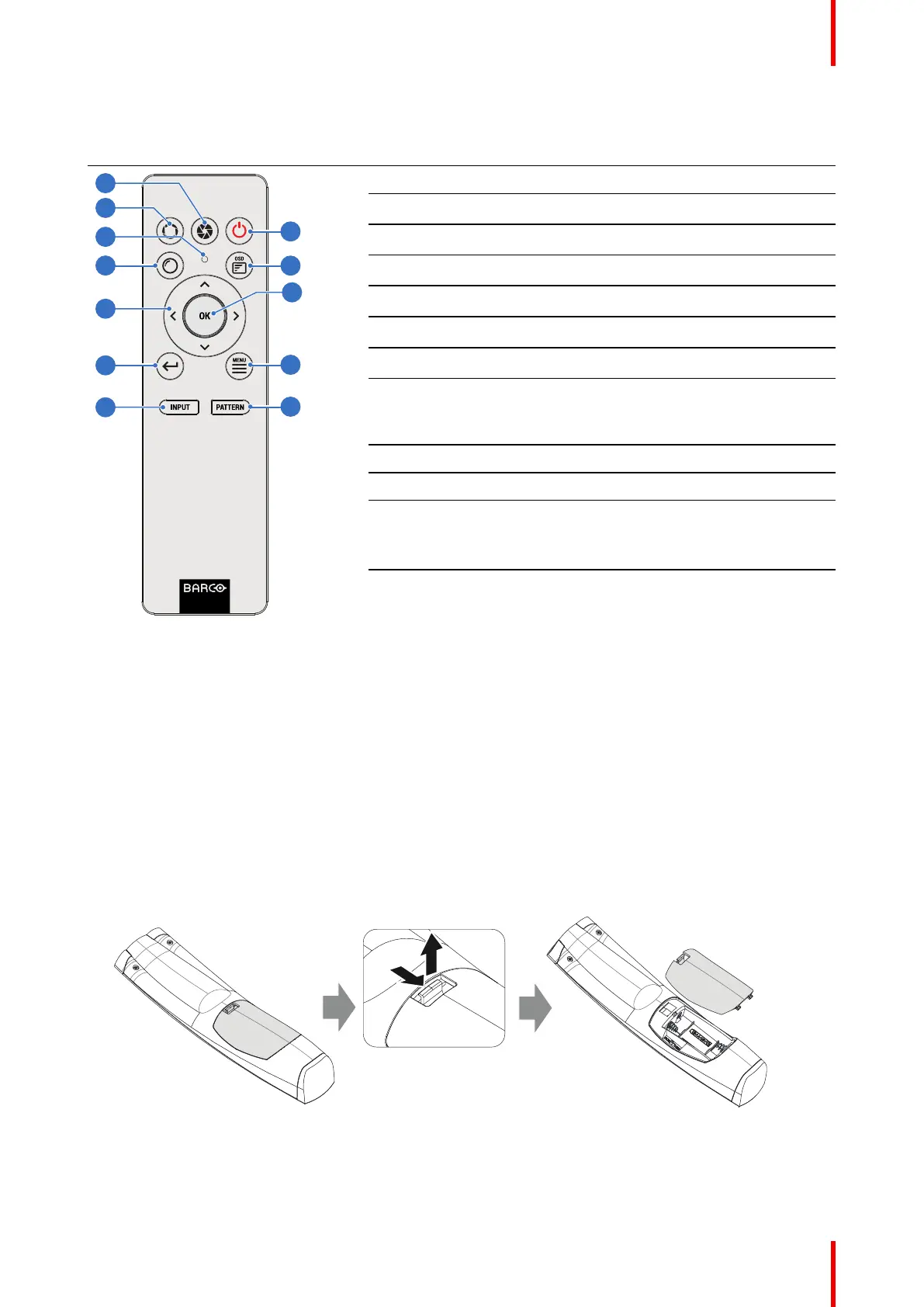

2.8 Platinum remote control unit
2.8.1 Remote control, battery installation
Where to find the batteries for the remote control ?
The batteries are not placed in the remote control unit to avoid control operation in its package, resulting in a
shorter battery life time. At delivery the batteries can be found in a separated bag attached to the remote
control unit. Before using your remote control, install the batteries first.
How to install
1. Push the battery cover tab with the fingernail a little backwards (1) and pull, at the same time, the cover
upwards (2).
1
2
Image 2–1
2. Insert the two AA size batteries, making sure the polarities match the + and - marks inside the battery
compartment.
Getting to know the projector.
