2.9.1 Controlling the projector
Why a projector address?
As more than one projector can be installed in a room, each projector should be separately addressable with
an RCU or computer. Therefore each projector has its own address.
Set up an individual Projector Address
The set up of a projector address can be done via the software.
Projector controlling
When the address is set, the projector can be controlled now:
• with the RCU: only for addresses between 1 and 31.
Broadcast Address
Every projector has a broadcast (common) address '0' or '1'. The default address is '0'.
The choice between '0' and '1' can be selected in the GUI: “System Settings” → “Communication” →“IR
Control “.
Placing new batteries in the remote control or plugging the remote to a projector via a cable will
automatically reset the address back to its default value '0'.

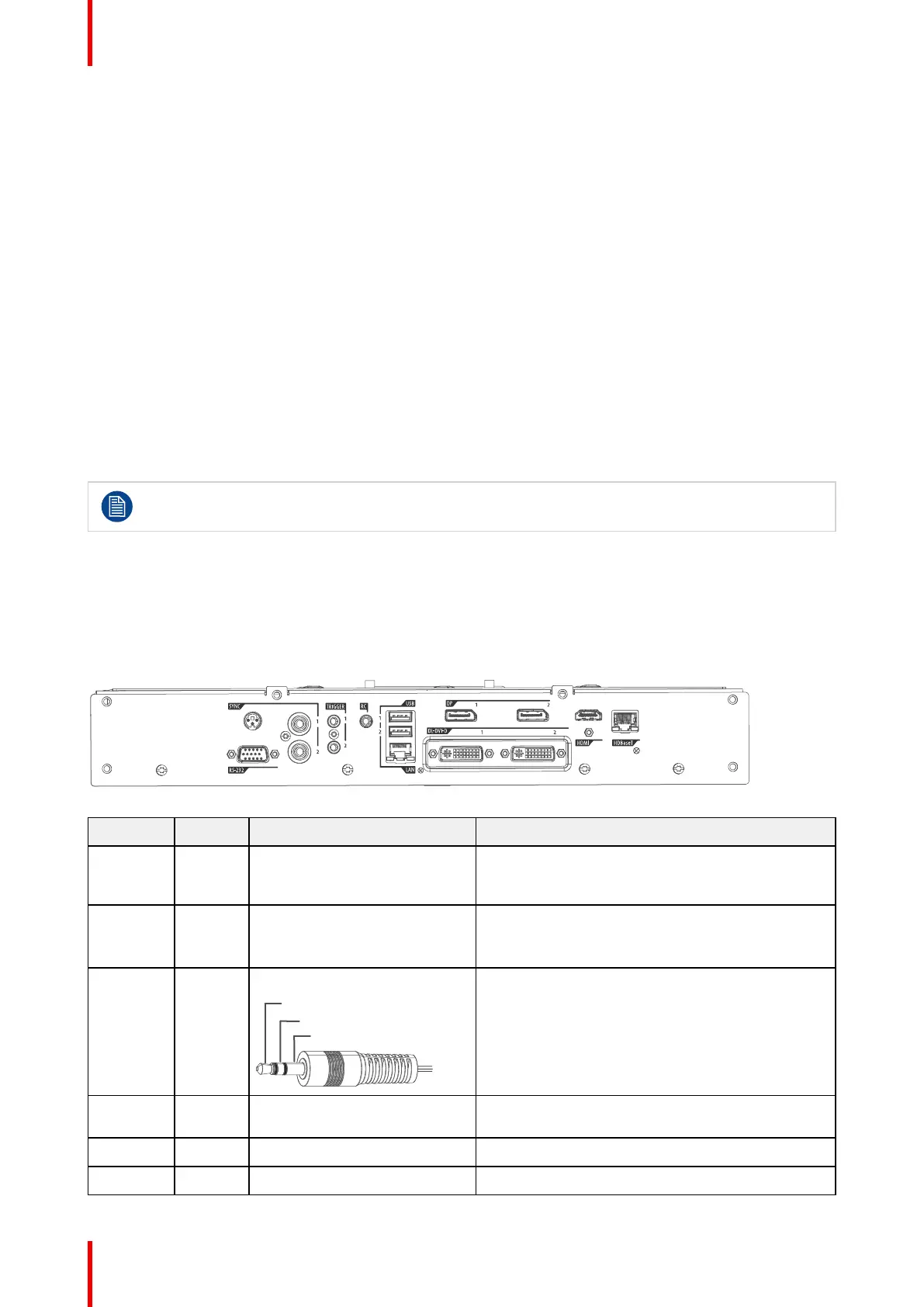

2.10 Connector panel
General
The source input panel is located at the back of the projector. For source specifications, see table below.
Image 2–1
Name Pcs
Description Purpose
RS-232 1 9–pin DB9 connector For Projector Control. Allows for wired remote
control and monitoring of many projector functions
used in installation environments
Sync 3 BNC Sync Port IN/OUT;
Bidirectional mini-DIN (1x 3D
sync Out, and 2x Sync In/Out)
For Projector ControlThis is mainly used in multiple
projector installations with requirement of
synchronization between the units
Trigger 2 12VDC - 0,5A (6W)
Trigger Out Voltage
No Connection
Ground
For Controlling Peripherals, like motorized
screens, curtains etc. Give 12V output when
activated. See API manual for activation info.
NOTE Disconnect the projector power cable
before connecting or removing the trigger
cable
RC 1 Jack connector for wired
remote
For Projector Control
USB 2 USB 2.0 type A, 4 pin For Software upgrade
LAN 1 Standard RJ45 connector For Projector Control
