6. Repackaging instructions
3
Protection buffer
7
Top box
4
Display
8
Display controller box
6.1 Replacin g the protection buffer
How to replace the protection buffer
1. Place the display on a stable surface.
2. Put the display in the lowest position and fasten the height mechanism, see "Unlocking the height mech-
anism", page 9 .
3. V ery important: Tilt the panel away from the foot before changing the orientation.
4. Turn the panel counterclockwise to put the panel in landscape orientation, see "Adjusting the display
position", page 9 .
5. Place the connector compartment cover in the protection buffer.
6. Slide the protection buffer over the foot of the display.
7. Tilt the panel back to the foot.

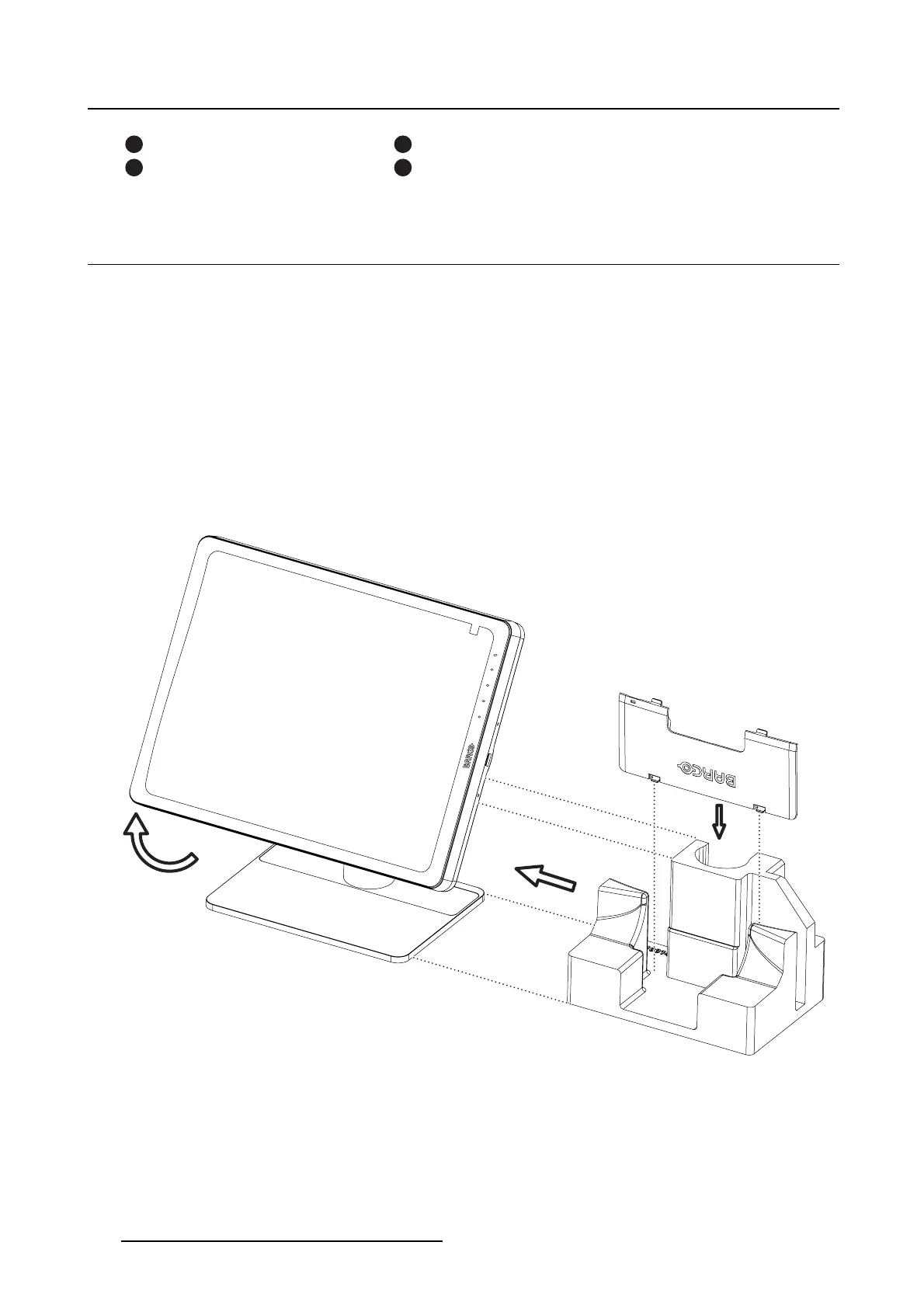

Image 6-2
Placing the protection buffer.
34 K5902060 CORONIS 3MP LED DISPLAY 01/10/2015
