1. DP4K-L series accessory kit
6. "Installing the plastic catch basin", page 12.
7. "Installing the castor wheels", page 13. (optional)

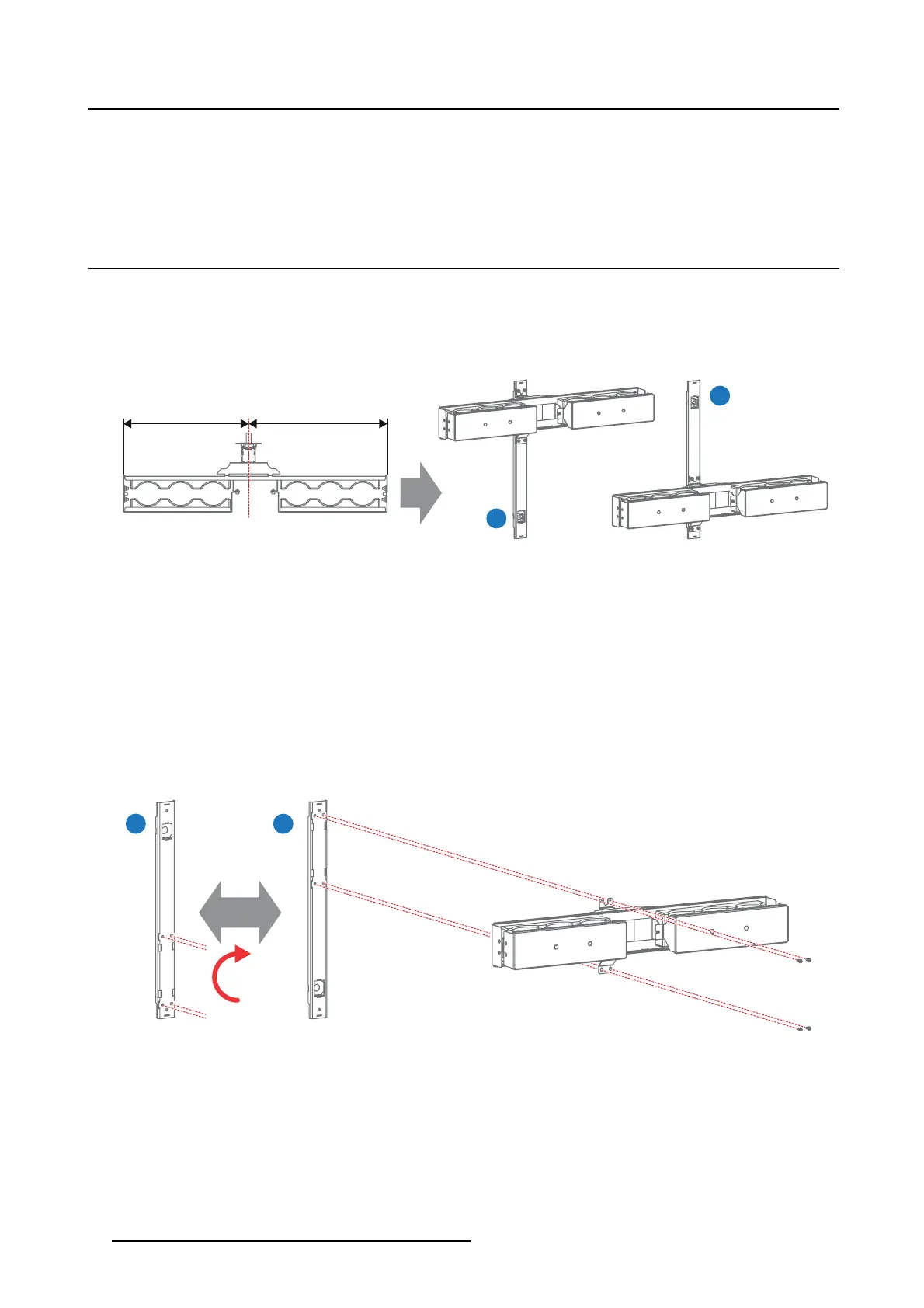

1.3 Assemb ling the supp ort f rame
What has to be done?
The hoses support frame has to be mounted on the bracket. The mounting orientation depends on the
direction, upwards or downwards, the hoses because the support frame is not symmetric. The left side
(L) of the support frame is shorter than the right side (R).
L
L
L
L < R
R
R
R
U
D
Image 1-7
U Support frame mounted on the b racket in case hoses goes upwards.
D Support frame mounted on the bracket in case hoses goes downw ards.
Necessary tools
3mmAllenwrench.
How to assemble the support frame for the hoses?
1. Remove the four screws from the bracket.
2. Place the support frame on the bracket and fasten with the four screws which were removed in step 1.
Caution: Ensure to orient the support frame correctly onto the bracket. In case the hoses goes down-
wards use position D as illustrated. In case the ho
ses goes upwards use position U as illus-
trated.
UD
180°
L
R
Image 1-8
6 R5905882 DP4K-L ACCESSORY KIT 06/09/2017

Barco DP4K-60L Specifications

General

Projector native resolution	DCI 4K (4096x2160)
AC input voltage	200 - 240 V
Power consumption (max)	6700 W
Service life of light source	30000 h

Weight and Dimensions

Depth	1445 mm
Width	744 mm
Height	706 mm
Weight	235000 g
