Barco ICMP User Manual

2. General
2. GENERAL
About this chapter
This chapter contains some general information on the ICMP (Integrated Cinema Media Processor) such
as the location of the main components, the LEDs status, the essential role of the battery in the ICMP, etc.
Overview
• ICMP Assembly overview
• ICMP status LEDs
• ICMP HDD status LEDs
• Introduction of ICMP battery
• ICMP reset
2.1 ICMP Assembly overview
Orientation and main compon ents
ICMP assembly is composed of three superposed cards, positioned behind a front face.

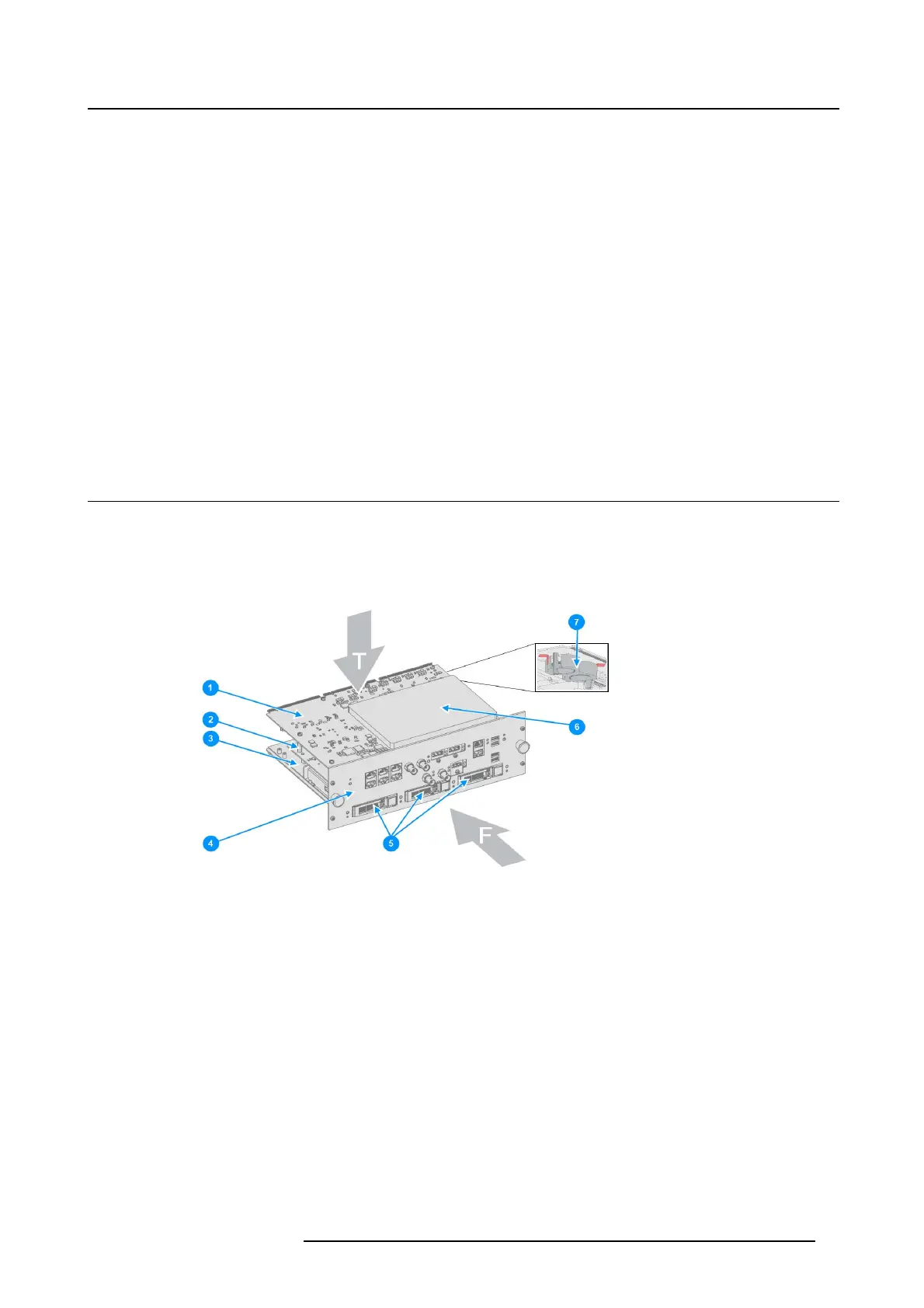

Image 2-1
T Top of the ICMP
F Front of the ICMP
1 Main b oard
2 Video mezzanine
3 HDD plate
4 Front face
5HDDs
6 Security Module
7Battery
