5. ICMP service procedure
Operating time
Replacement of the RAID controller, between ICMP board removal from the projector and ICMP board
installed back and operating should take approximately 30 minutes.
There is no extra time due to storage restore, because the replacement of the RAID con-
troller h as no incidence o n the HDDs content.
Concerned parts
Spare Part Kit Description
R7681136K Barco ICMP RAID controller kit
Necessary tools
• Torx T10 screwdriver
• Torx T15 screwdriver
• Phillips PH2 screwdriver (only to remove the ICMP from the projector)
• ESD wrist strap and anti-static mat
• Projector’s Dallas key if applicable
How to replace the RAID controller
1. Remove the ICMP from the projector. For details on the removing procedure, please refer to chapter
"Removing the ICMP", page 67.
2. Remove the 3 hard disks. For details on the removing procedure, please refer to chapter "Removing a
HDD from the ICMP", page 71.
Warning:Appling next steps of this procedure without removing the hard disks may lead to severe
damages of the system.
3. Open the ICMP to get access to the RAID controller:
a) Put the ICMP upside down.
b) The bottom layer of the ICMP is constituted by the metal plate (without the 3 hard disks), the hard
disks backplane and the security board.
c) Separate the modules by removing that bottom layer (which is at the top, following step a). You will
need to loosen the 4 x T15 screws and remove 2 of the 3 long spacers that hold the security board
with5xT10onthemetalplate,asshowninimage5-23.

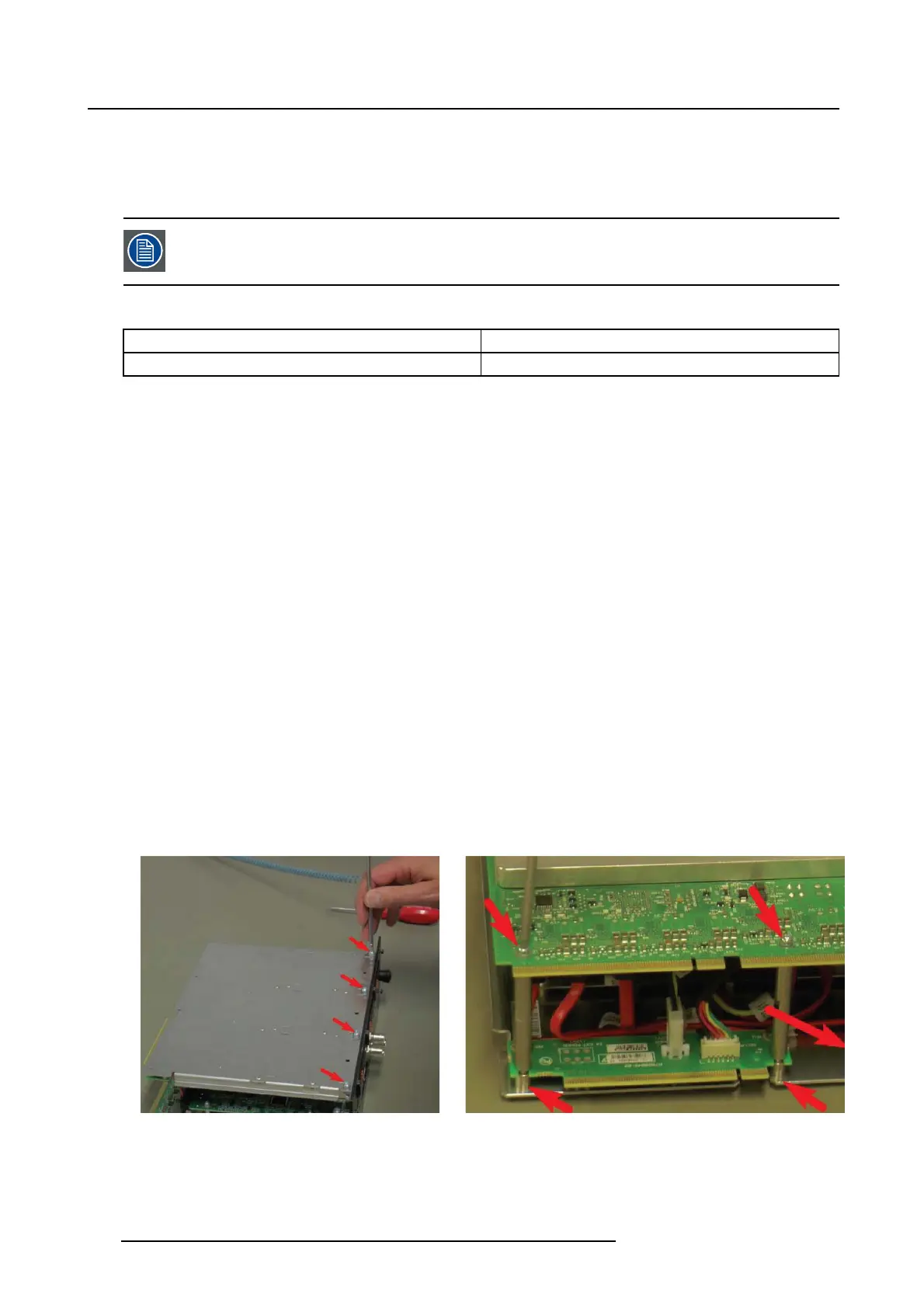

Image 5-23
80 R5906594 ICMP 09/11/2016
