5. ICMP service procedure
5.4 Installing a HDD into the ICMP
This procedure a ssumes that the H DD slot of the ICMP i s empty. If not, see procedure
"Removing a HDD from the ICMP", page 71.
CAUTION: Always use a new empty spare part HDD from Barco to replace a ma lfunction
HDD. Do not use a HDD from another ICMP HDD set.
CAUTION: Always make sure that all HDDs in the ICMP HDD set have the same storage
capacity. See label on top of the HDD to know the storage c apacity.
How to install a HDD ?
1. Ensure that the projector is switched off.
2. Prepare the HDD for insertion by moving the latch towards the left and push the unlock button to open
the handle.

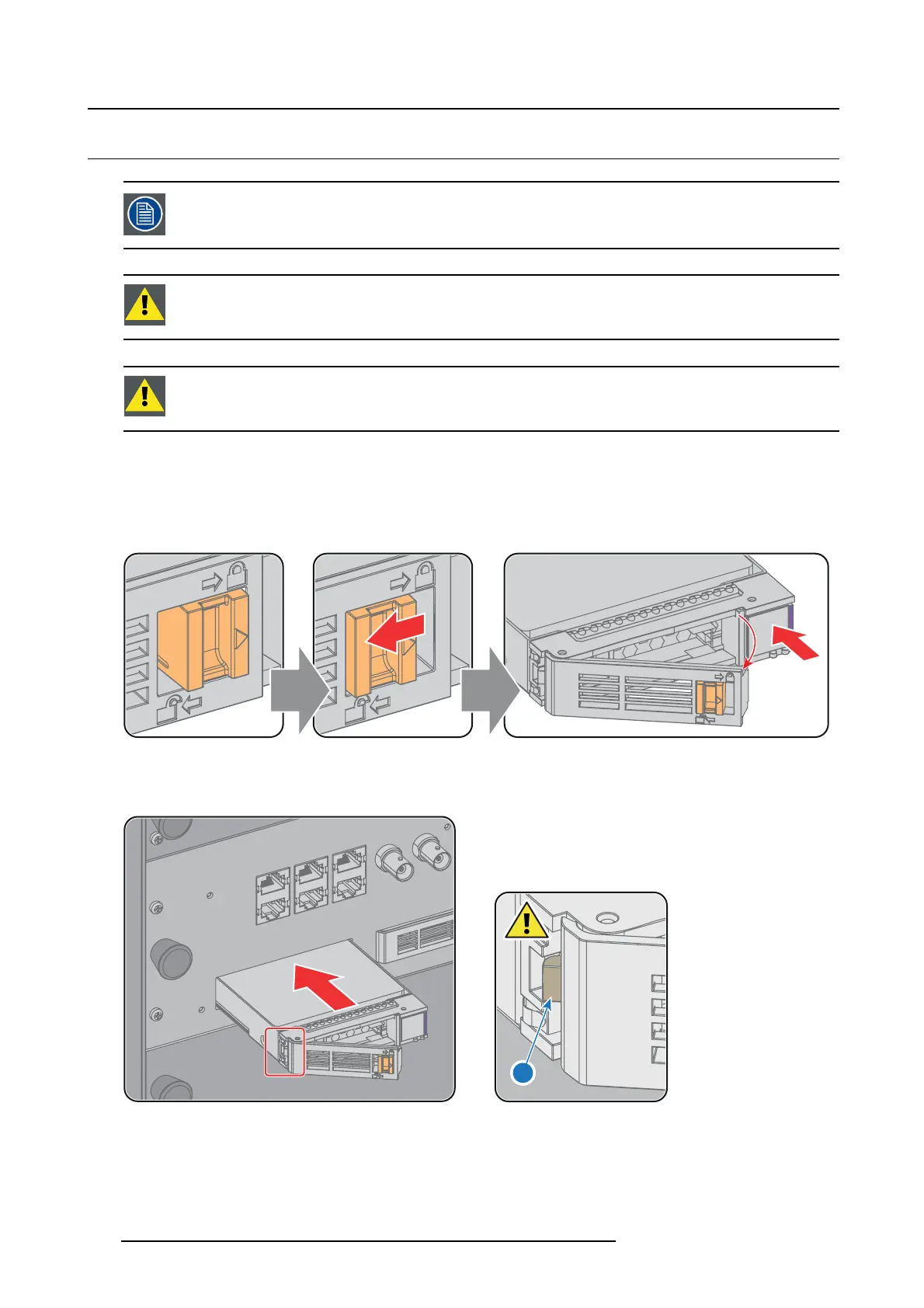

Image 5-8
3. Insert the HDD into the HDD slot. Ensure that the handle
is sufficiently open so that the hook (reference
1) of the handle can pass the front plate of the ICMP.
1
Image 5-9
4. Push the HDD completely and firmly inside its slot, close the handle, and move the latch towards the
right.
72
R5906594 ICMP 09/11/2016
