5. ICMP service procedure

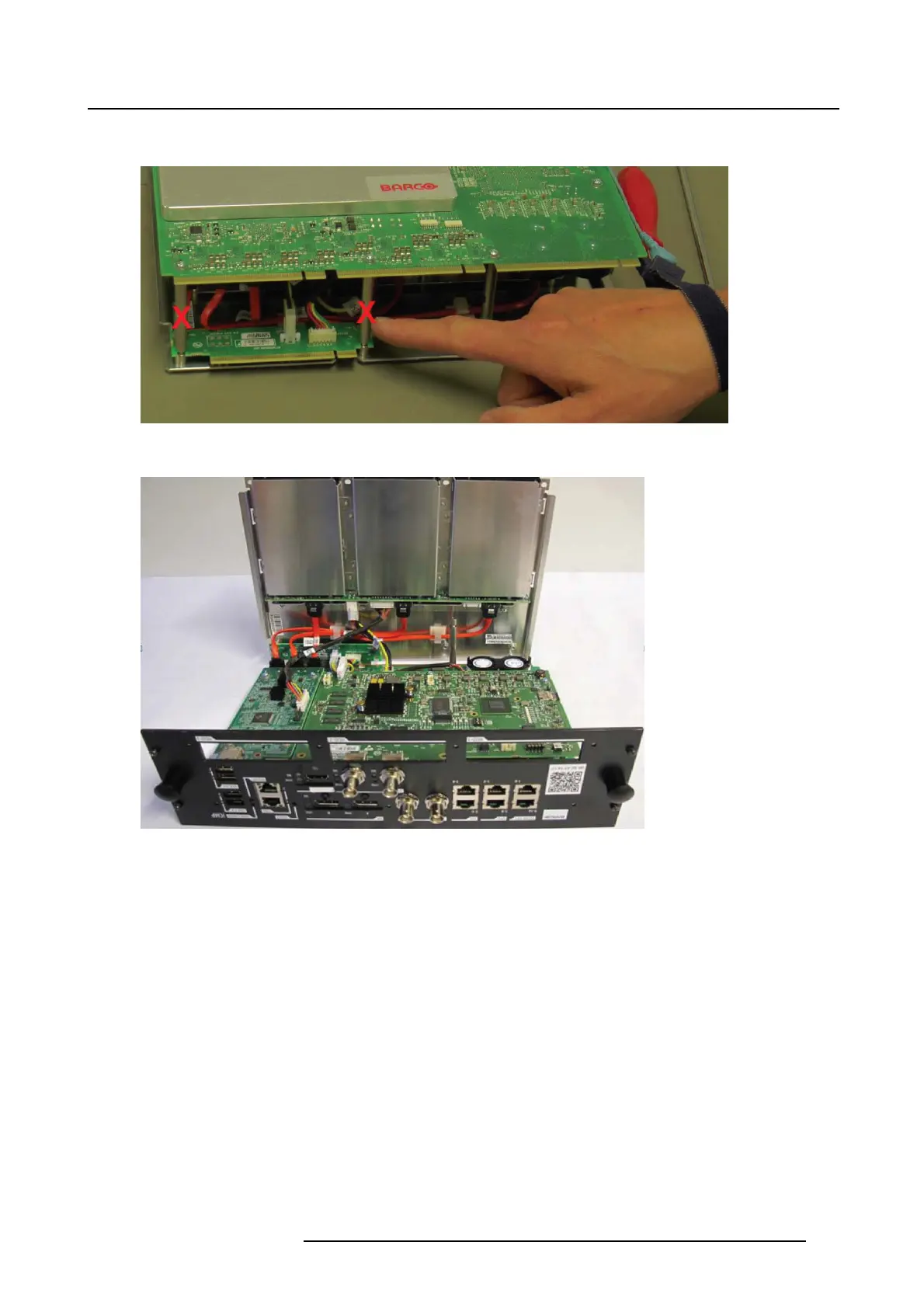

d) Remove the 2 long spacers as shown in image 5-24. For this you need to loosen 5 x T10 screws.
Image 5-24
e) Carefully, put the bottom board of the ICMP upwards, as show n on image 5-25.
Image 5-25
4. Removal of the RAID controller module.
