Parts, controls and connectors
Front

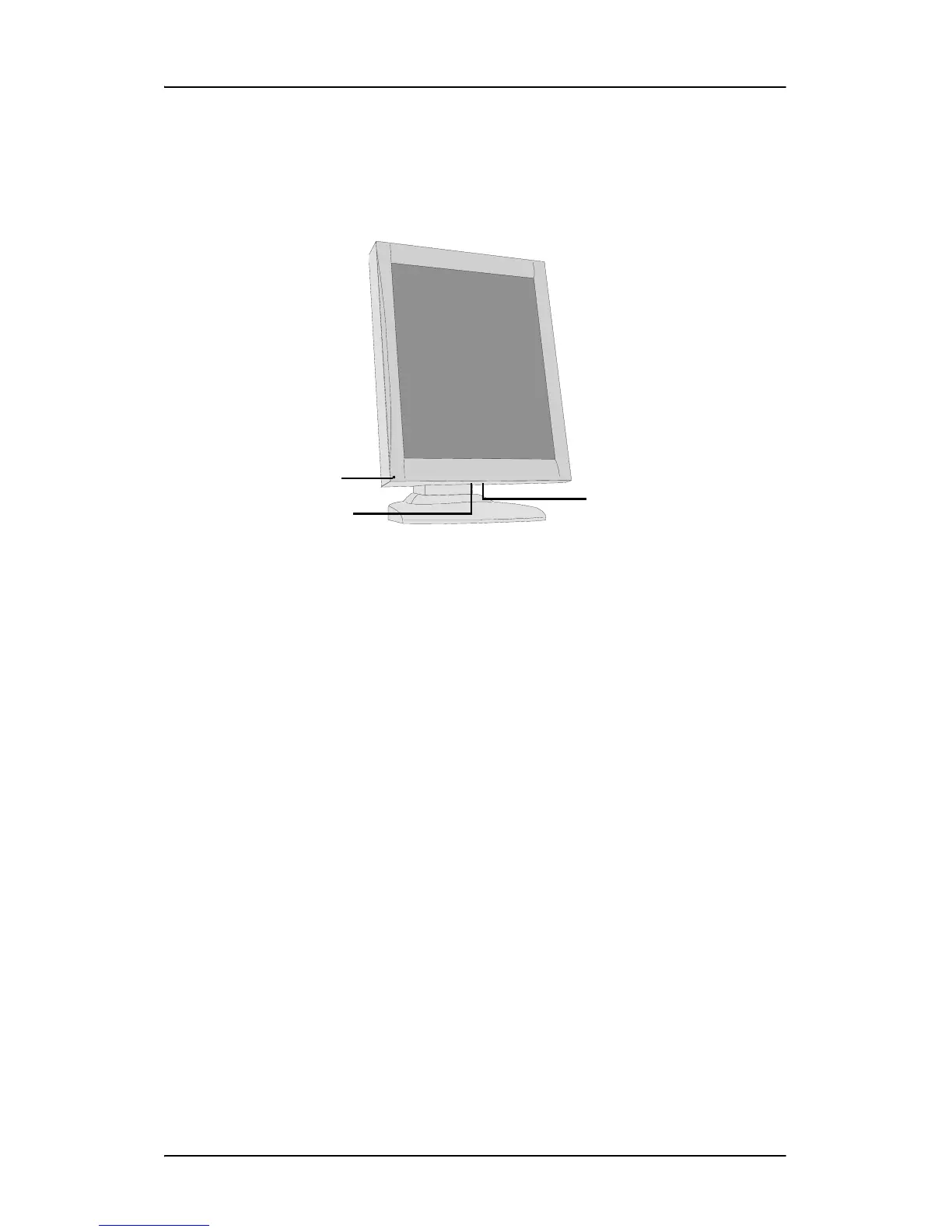

Figure 1
1. Power LED
The LED is off when the display is disconnected from the power.
The LED is also off when the LED function is disabled in the on-
screen display (OSD).
The LED is green when the display is on (when enabled in the on-
screen menus).
The LED is orange when the display is in Stand-by power-saving
mode.
2. USB downstream port. See also item “4.” on page 21
3. Control wheel
The control wheel can be pressed like a push button and rotated
like a knob.
It allows to put the display in stand-by, navigate through the on-
screen display (OSD) menus and change values in the OSD.
