Connector pin assignments
87
Connector pin assignments

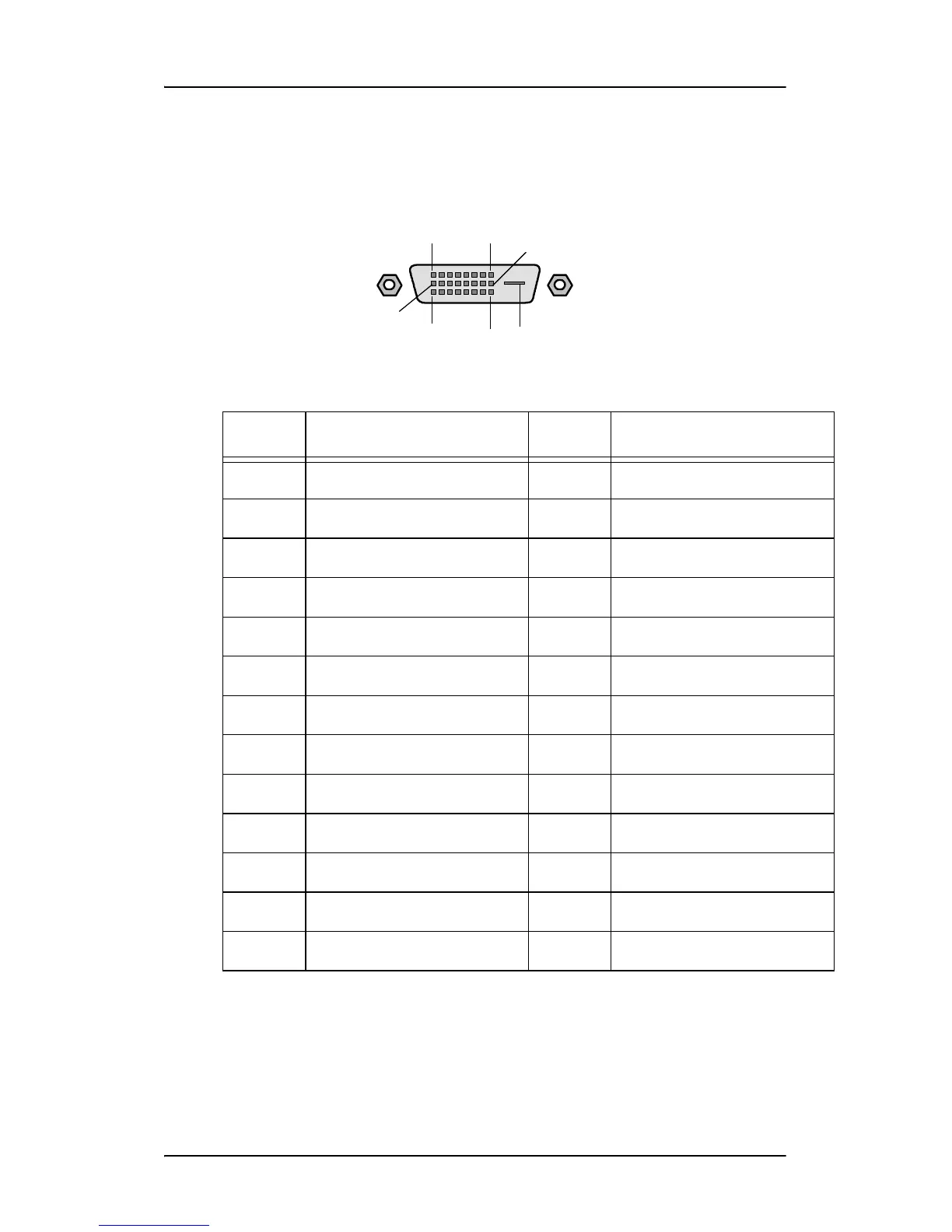

DVI connector:
Pin no. Signal Pin no. Signal
1 TMDS DATA 2- 14 +5V POWER
2 TMDS DATA 2+ 15 GND
3GND 16HOT PLUG DETECT
4 TMDS DATA 4- 17 TMDS DATA 0-
5 TMDS DATA 4+ 18 TMDS DATA 0+
6 DDC CLOCK 19 GND
7 DDC DATA 20 TMDS DATA 5-
8NC 21TMDS DATA 5+
9 TMDS DATA 1- 22 GND
10 TMDS DATA 1+ 23 TMDS CLOCK-
11 GND 24 TMDS CLOCK+
12 TMDS DATA 3- 25 GND
13 TMDS DATA 3+
18
17
24 25
9
16
