Display parts, controls and connectors
18 Nio display systems
Display parts, controls and connectors
Front view

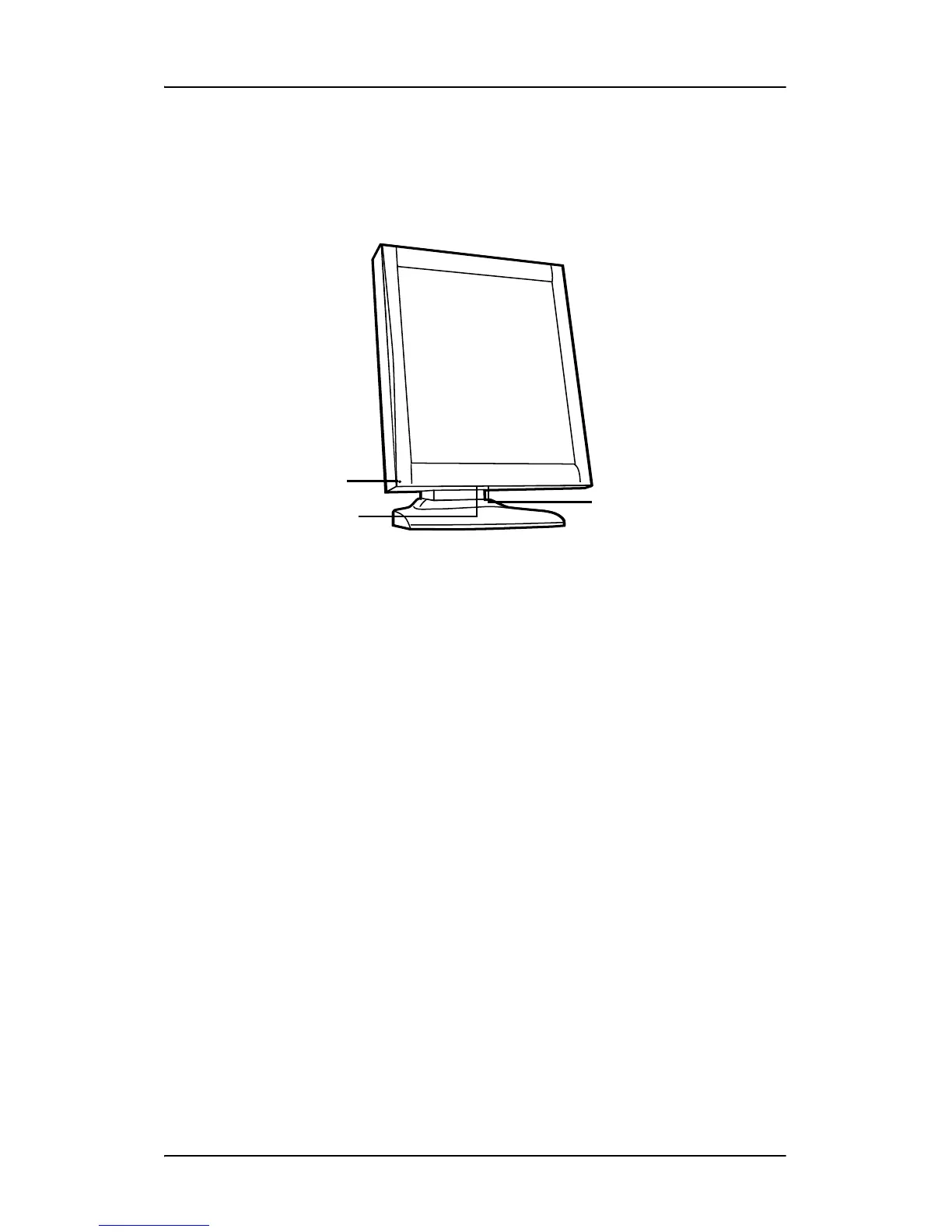

Figure 1: Front side
1. Power LED
The LED is off when the display is disconnected from the power.
The LED is also off when the LED function is disabled in the on-
screen display (OSD).
The LED is green when the display is on (when enabled in the on-
screen menus).
The LED is orange when the display is in Stand-by power-saving
mode.
2. USB downstream port. See also item “7.” on page 19
Note: This connector is not available on MDNC-3120.
3. Control wheel
The control wheel can be pressed like a push button and rotated
like a knob.
It allows to put the display in stand-by, navigate through the on-
screen display (OSD) menus and change values in the OSD.
