Display parts, controls and connectors
20 Nio display systems
Connect the external power supply, delivered with the display, to
this connector.
9. Tilt & swivel foot clip
The display is shipped with this clip in the foot to protect the tilt &
swivel mechanism during transport. After unpacking, you should
remove this clip.
Do not throw the clip away! Should the display have to be packed
and shipped later, the clip must be applied to the foot again.

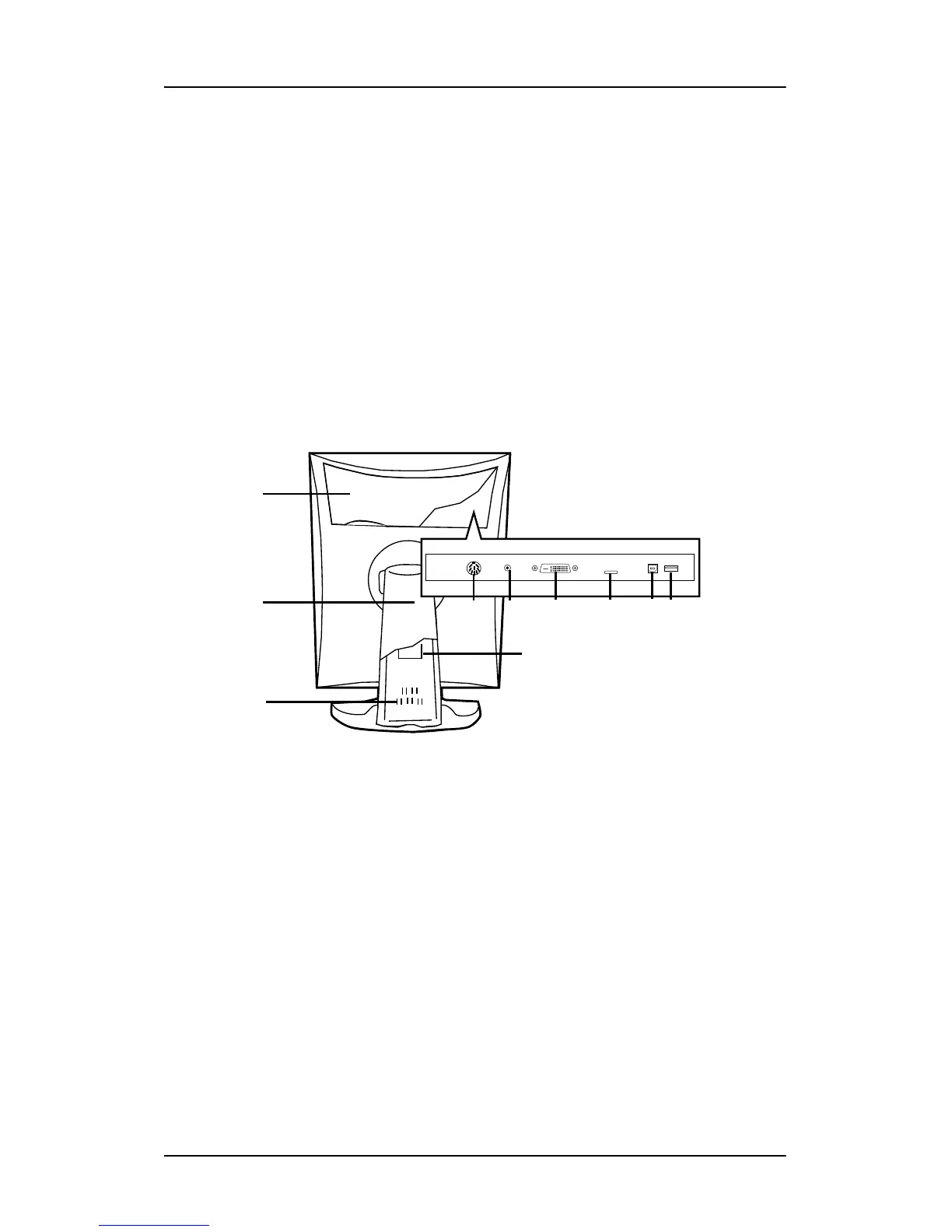

Rear view of MDNC 3120
Figure 3: Rear side
1. Connector compartment cover
To get access to the connectors, remove the cover by pulling down
the 2 clips at the top of the cover.
2. Tilt & swivel foot cover
This cover is packed in a separate box when the display is shipped
to the customer.
3. Tilt & swivel foot
4. DC power input
c
d
e
fg h i jk
l
