Barco PGWU-61B - Projector Connections

19
PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12
3. Installation
3.3 Connecting the Projector

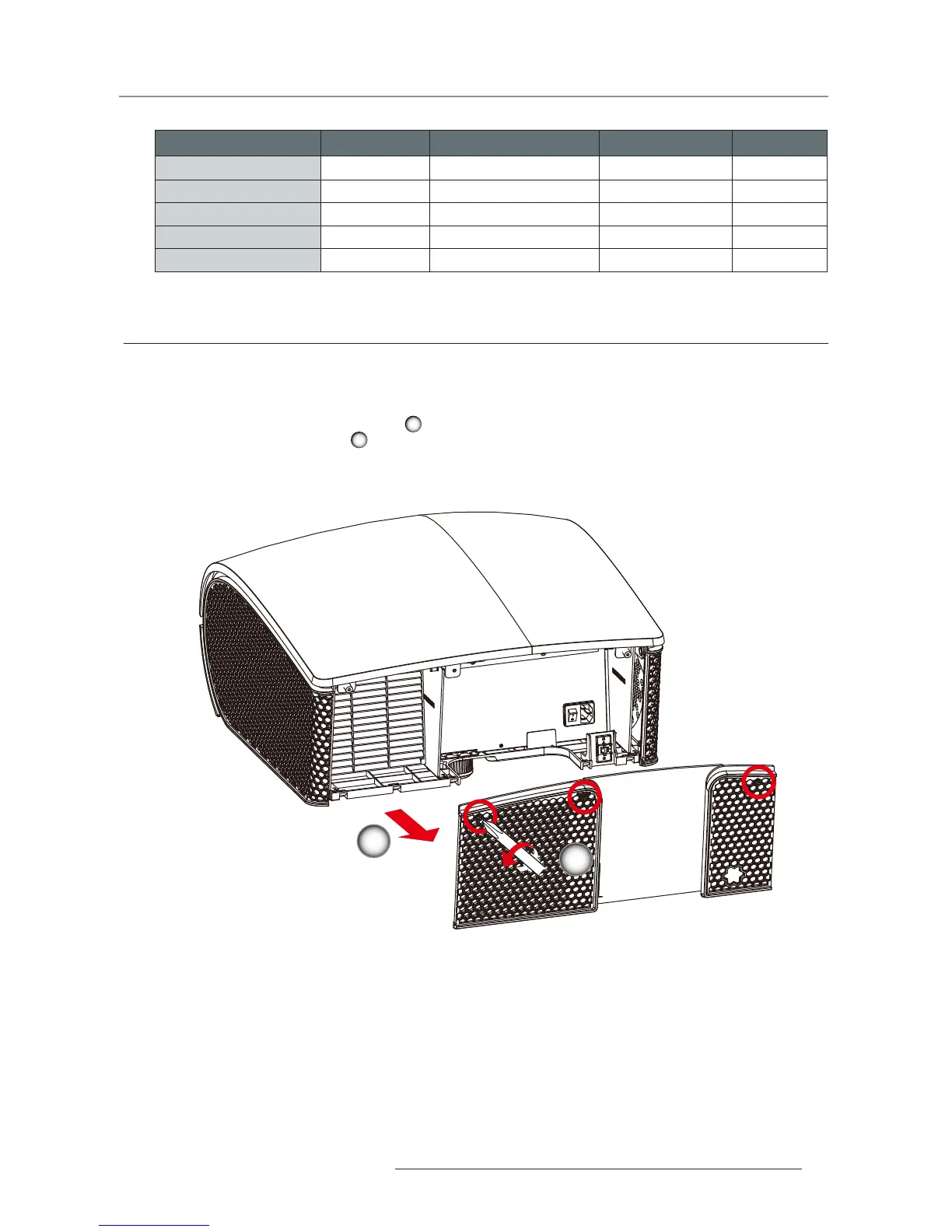

3.3.1 Removing the rear cover
Procedure
Unscrew the three crews on the cover. 1.
1
Lift up and remove the cover. 2.
2
To install the rear cover, reverse the previous steps.3.
1
2
Projection Lens P/N R9832755 R9832753 R9832754 R9832756
Lens Type Wide Zoom Standard XGA/WXGA Standard WUXGA Long Zoom
Throw Ratio (XGA) 0.99-1.26 1.26-1.58 --- 1.58-3.00
Throw Ratio (WXGA) 1.00-1.28 1.28-1.61 --- 1.60-3.07
Throw Ratio (WUXGA) 0.95-1.22 --- 1.22-1.53 1.52-2.92
Zoom Ratio 1.28X 1.25X 1.25X 1.9X
Lens Specication
