Bard MC5000 Series User Manual

Manual 2100-746
Page 10 of 55

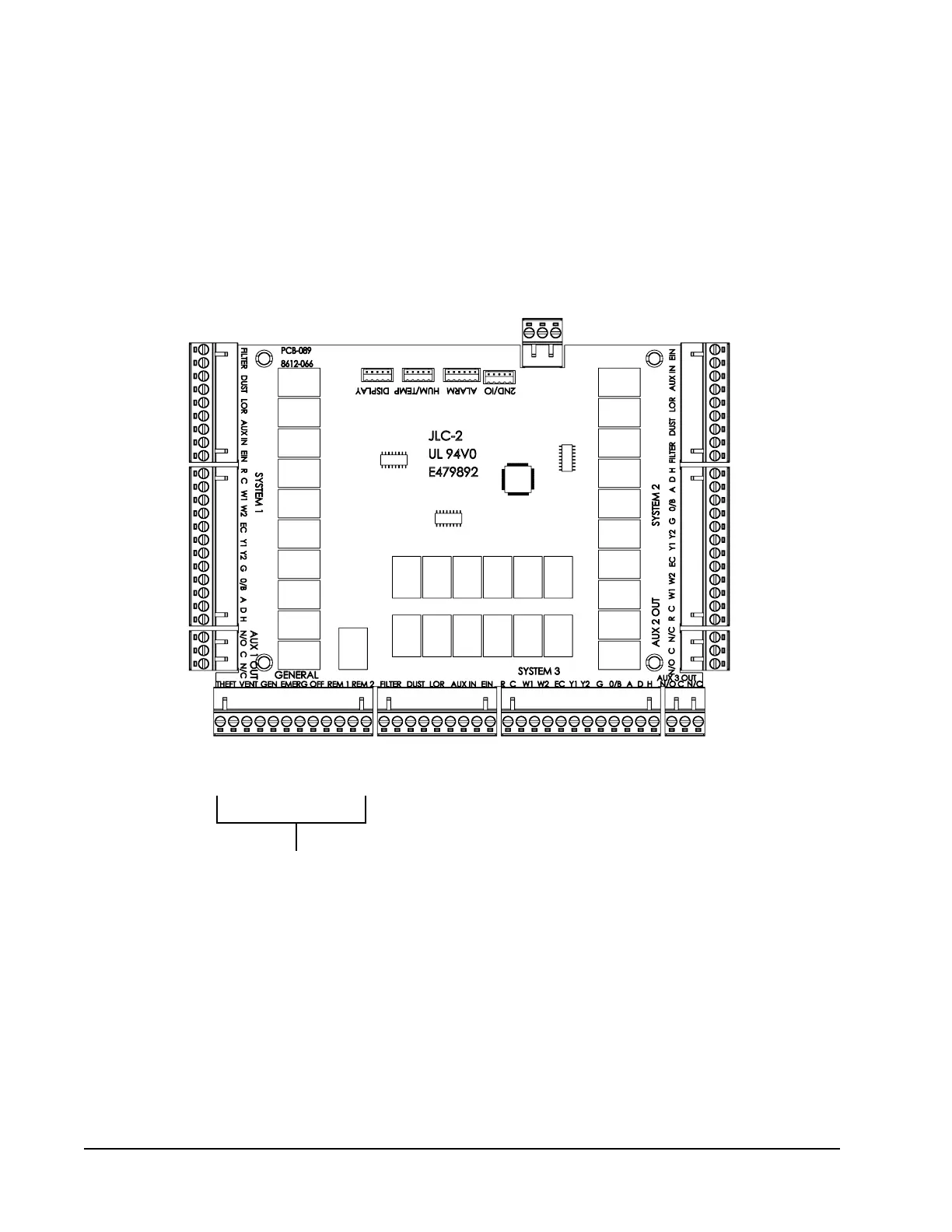

Main Control Board (All MC5300 and MC5600 Models)
Connection points are provided for one to three wall-mount air conditioners or heat pumps. Units can include
optional mechanical dehumidification, electric heat strips, economizer and ventilation. Inputs are also provided for
theft, vent, generator, emergency off and two remote temperature sensors. The shelter inputs (theft, vent, generator,
emergency off and remote sensor 1 and 2) are connected to the main control board next to Unit 3 terminal strip.
There are no shelter inputs available on the secondary I/O control board (P/N 8612-067) that is required for units 4
through 6.
MIS-4188
FILTER IN
DUST IN
LOR IN
AUX 1 IN
ECON
ECON
AUX 2 IN
LOR IN
DUST IN
FILTER IN
R
C
W1
W2
EC
Y1
Y2
G
O/B
A
D
H
H
D
A
O/B
G
Y2
Y1
EC
W2
W1
C
R
NO
COM
NC
NC
COM
NO
AUX 1
OUT
AUX 2
OUT
FILTER IN
DUST IN
LOR IN
AUX 3 IN
ECON
R
C
W1 W2
EC
Y1 Y2
G
O/B
A
D
H
NO
COM
NC
AUX 3
OUT
THEFT
VENT
GEN
EMERG OFF
REM 1 IN REM 2 IN
Unit 1
Connections
Unit 2
Connections
Unit 3
Connections
REMOTE DISPLY LOCAL HUM/TEMP 1ST ALARM BOARD 2ND I/O BOARD
Shelter Inputs
