Bard MC5000 Series User Manual

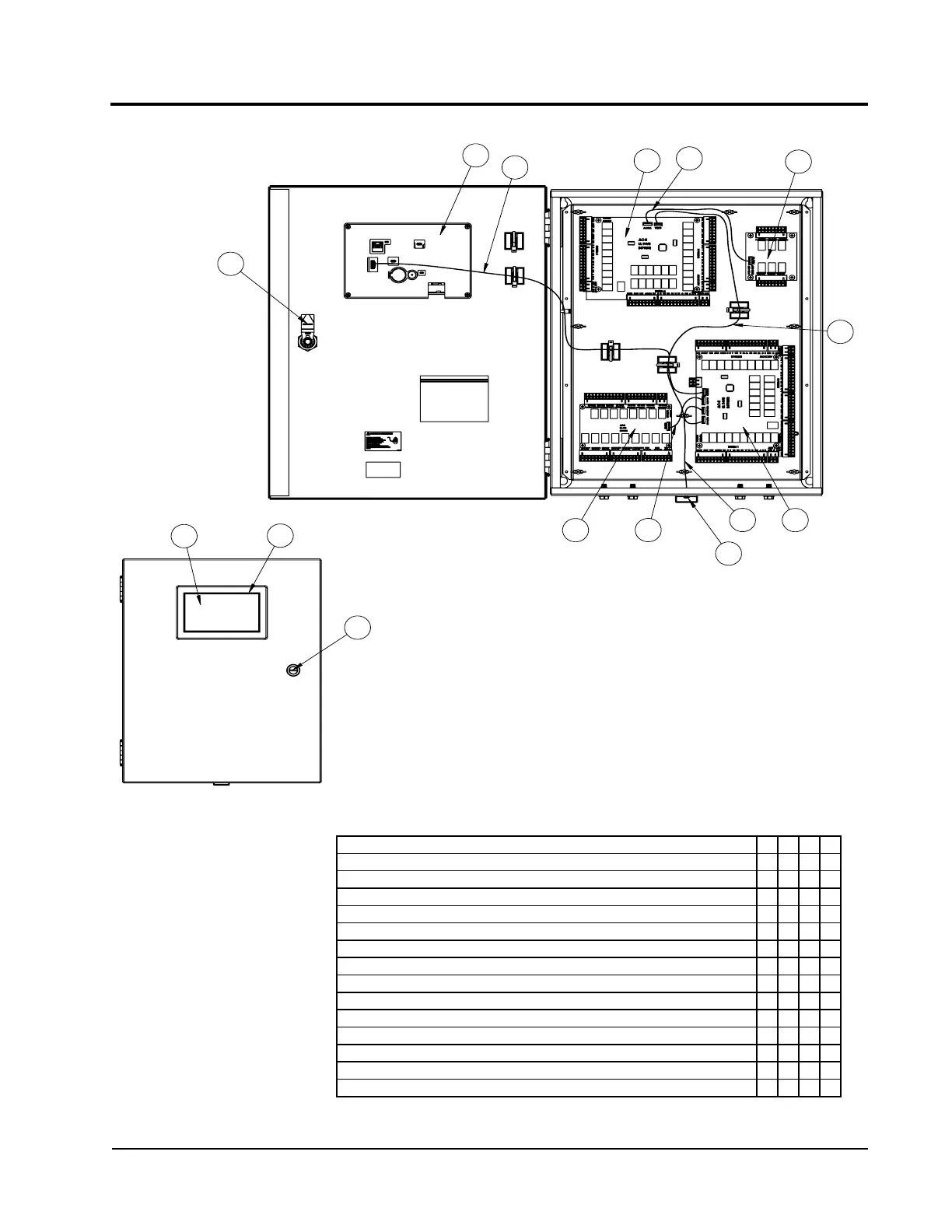

MC5000 SERIES CONTROLLER REPLACEMENT PARTS LIST
Manual 2100-746
Page 55 of 55
1
6
10
8
4
2
7
3
5
9
14
13
14
11
12
SEXP-1026
Dwg. No. Part No. Description
1 8612-065 Display Board w/Ethernet
1
X X X X
2 8612-066 Main I-O Board X X X X
3 8612-067 Secondary I-O Board X X
4 8612-068 Main Alarm Board X X
5 8612-069 Secondary Alarm Board X
6 8301-092 Bezel Front X X X X
7 8301-093 Bezel Back X X X X
8 8301-094 Cover for Humidity/Temperature Sensor X X X X
9 1171-073 1/4 Turn Latch Cam X X X X
10 1171-074 1/4 Turn Latch X X X X
11 8408-059 Humidity/Temperature Sensor w/11" Cable X X X X
12 3020-026 36" Cable for Display to I-O X X X X
13 3020-024 18" Cable for Secondary I-O X X
14 3020-025 11" Cable for Alarm Board X 2
NC 8611-269 Snap-in Standoff - Nylon (PCB Retainer) 4 8 12 16
MC5300-C MC5300-BC MC5600-C MC5600-BC
1
Batteries for control boards are field supplied (supplier part number CR2032).
1
6
10
8
4
2
7
3
5
9
14
13
14
11
12
SEXP-1026
