Bard MC5000 Series User Manual

16.34"
20.50"
6.22"
0.875"
KNOCKOUTS
10 PLACES
1.125"
KNOCKOUTS
10 PLACES
1.70"
3.32"
3.32"
3.32"
3.32"
3.32"
1.70"
2.36
BOTH SIDES OF
CONTROL BOX
HAVE SAME
DIMENSIONS FOR
KNOCKOUTS
2.00"
4.00"
4.00"
4.00"
2.45
BOTTOM VIEW
14.50"
18.39"
.500"
20.00"
4.00"
4.00"
4.00"
.250"
.500"
TOP VIEW
BACK VIEW
CONTROLLER ENCLOSURE SPECIFICATIONS:
16-GAUGE POST-PAINTED GALVANIZED •
20.50" H X 16.34" W X 6.22" D •
KNOCKOUTS •
10 TOTAL 7/8" KNOCKOUTS •
10 TOTAL 1-1/8" KNOCKOUTS •
NOTES:
GROUND LUGS ARE LOCATED ON THE INSIDE OF THE ENCLOSURE; DIMENSIONS
FOR KNOCKOUTS ARE THE SAME ON LEFT AND RIGHT SIDES OF ENCLOSURE
FRONT VIEW
MIS-4187
Manual 2100-746
Page 7 of 55
Conduit is recommended for all wiring. Route
connection wiring in conduit separate from unit wiring
and/or high voltage wiring.
The MC5000 series controller is not weatherproof and
is intended for use in a weather tight structure.
Mounting the MC5000 Series Controller
The MC5000 series controller can be installed in any
indoor location that has wall space for hanging. It is
suggested that the controller be hung at eye level. Four
(4) mounting holes are provided for mounting to the wall.
Use mounting hardware capable of holding the weight
of the controller such as 1/4" diameter fasteners with
flat washers that are 1" outside diameter (OD) or less.
Knockouts provided on the base, sides and top of the
controller can be used for conduit connections (see
Figure 2).
The power (24VAC) for the control system comes from
the units connected. Therefore, a separate power
supply is not required. There are ground lugs located
inside on the bottom of the control; an equipment
ground is required (see Figure 3 on page 8). Conduit is
recommended for control wiring protection.
Electrical shock hazard.
Disconnect VAC power supplies before
servicing.
Failure to do so could result in electric shock
or death.
!
WARNING
IMPORTANT: When working with circuit board
components,
Bard recommends the use of
an anti-static wrist strap to prevent static
electricity shorts to electronic controls.
MC5000 Series Controller
The MC5000 series controller is used to control up
to six wall-mount air conditioners or heat pumps.
The front display controller provides an easy-to-read
interface with a touch screen LED graphical display
while providing redundancy for the structure.

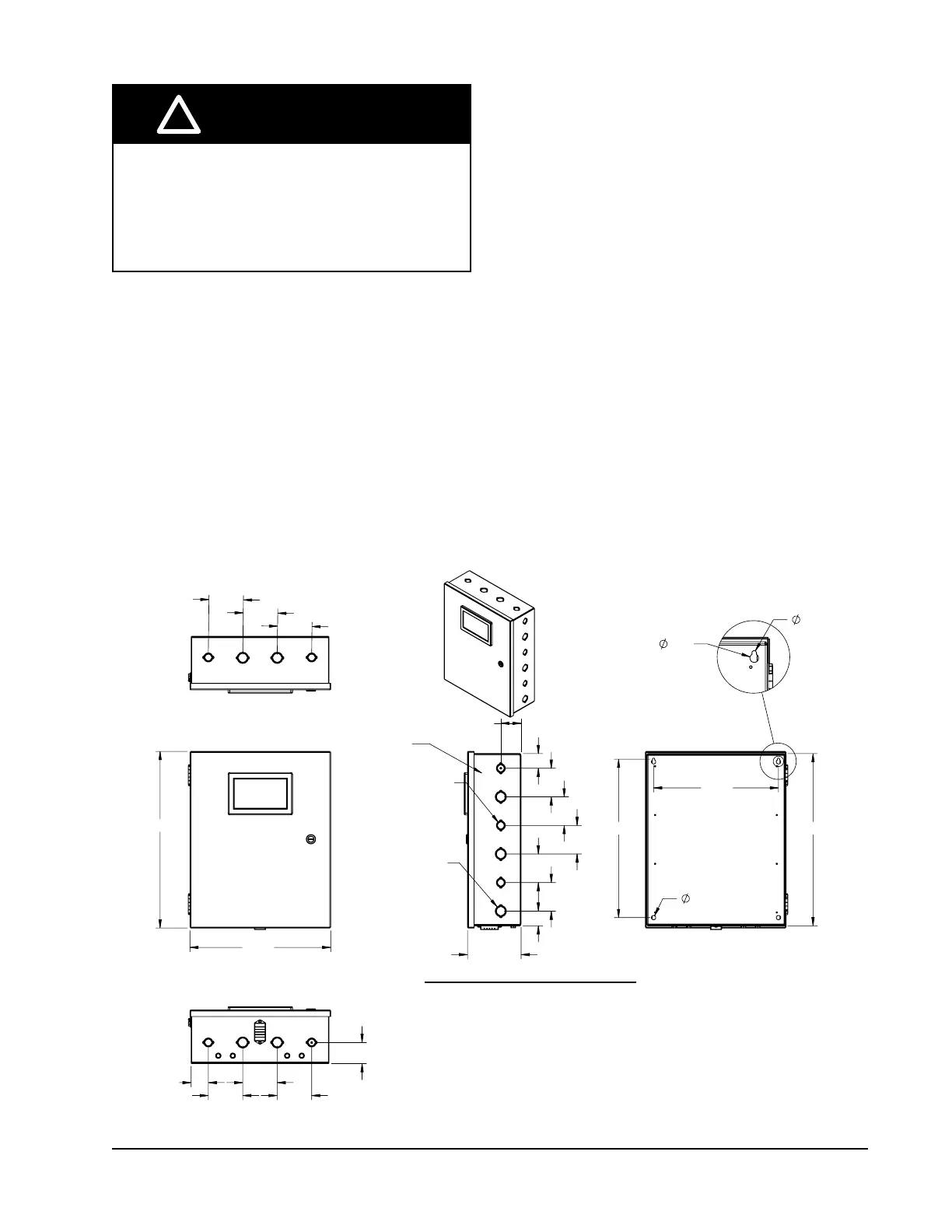

FIGURE 2
MC5000 Series Controller Dimensional Drawing
