2100-444-003A
Page 53

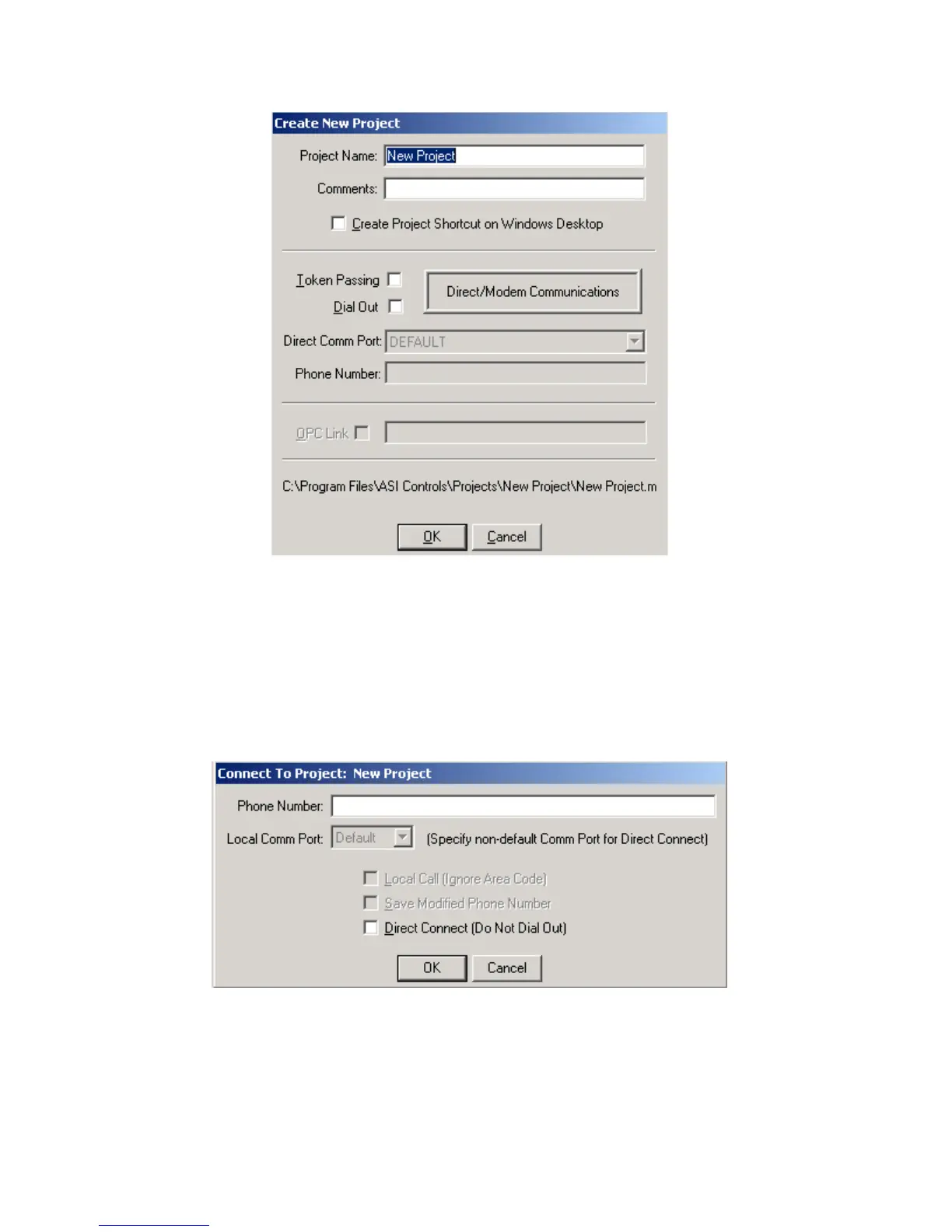

Type a new name for the project. Add any comments about the project. If a short cut is desired on
the Windows desktop check the Create Project Shortcut on Windows Desktop box. Check the Dial Out
checkbox even if this is a direct connect site. A dial out project can also be used to direct connect to the
site. Click OK. The Connect to Project Window will appear.
6.3.2.3 Direct Connection
This section deals with directly connecting to the TCS controller via a computer cable. For
remote connection information skip to section 6.3.2.4.
For direct connection to the TCS controller, check the direct connect check box and then click
OK. The Find It screen will appear. Make sure the ASIC/2 button is checked. Click the Find It button to
establish communications with the controller. Go to section 6.3.2.5 Downloading Controller
Information.
