61-101-00802.EF2 (REV. G) CH. 2
January 7, 2015 Page 5 of 44

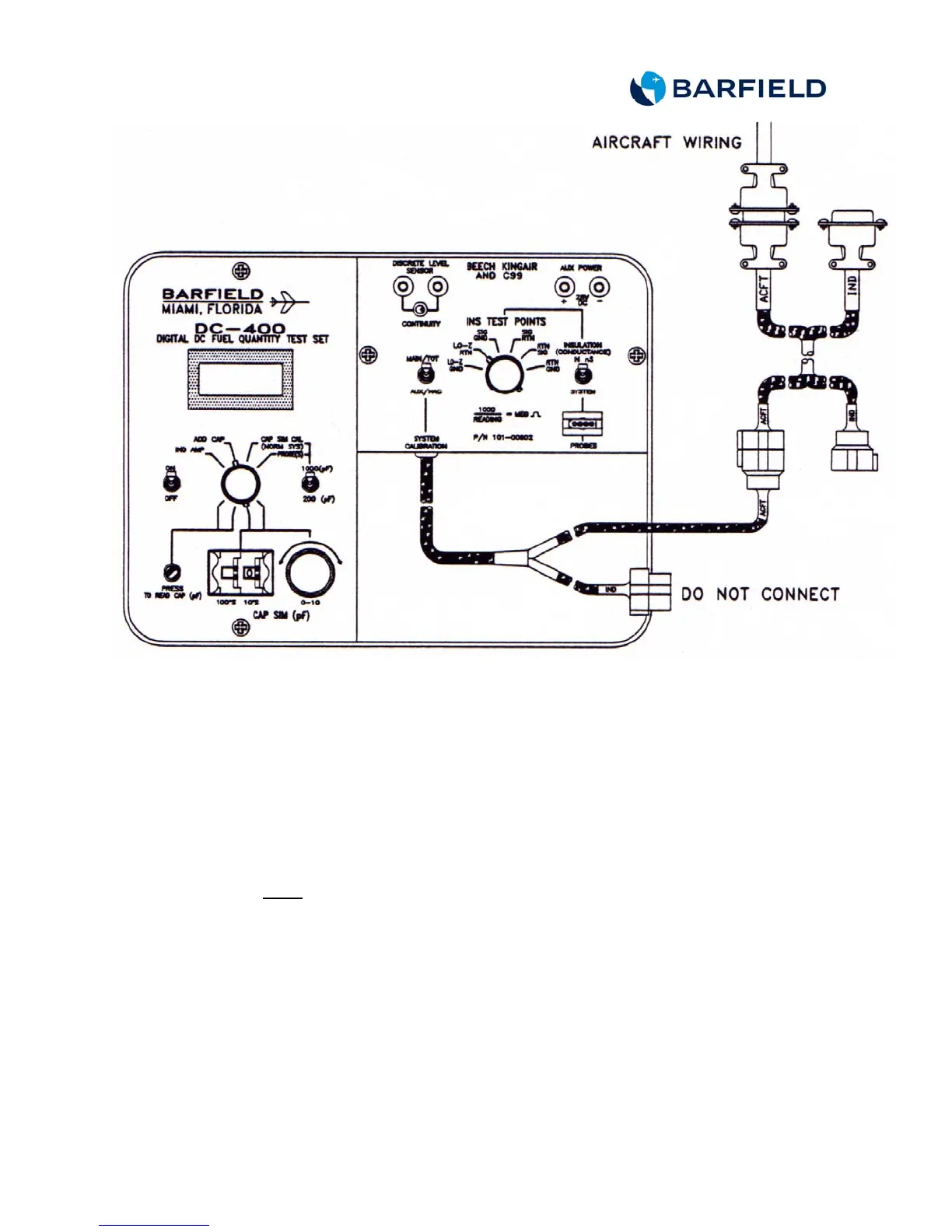

Figure 2 Insulation Test Connector Setup
D. Test
(1) Set the test set ON/OFF switch to ON.
(2) Allow time for the test set display to stabilize.
(3) Verify that the test set reading is less than 50nS.
Note: The display reading is in nS (nano Siemens). To get an
equivalent MΩ (megaohms) measurement, divide 1000 by the
test set display reading.
