C. Connecting Test Set
(1) Connect the T/S as shown in Figure 7 or Figure 8.
(2) Connect the appropriate Probe Selector Unit to the Interconnect Fuel
Line Receptacle connector (if testing 1900/1900C, UA and UB) or to
the Main Harness disconnect and Aux Harness disconnect (if testing
UC and UE).
(3) Connect the adapter cable to the Probe Selector Unit.
(4) Connect the T/S ACFT connector to the adapter cable. Do not
connect the T/S IND connector.

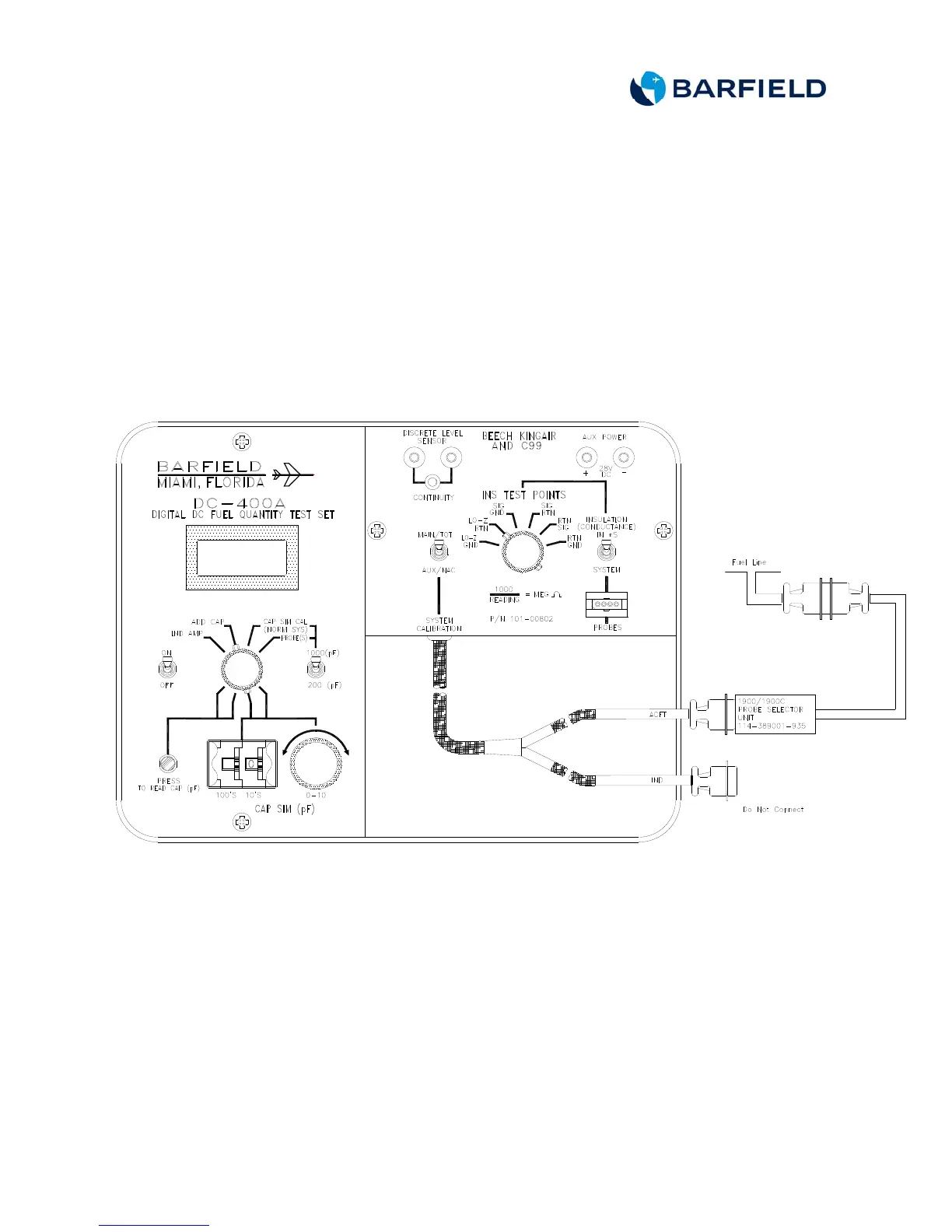

Figure 7 Capacitance Test 1900 / 1900C, UA and UB Individual Probes
