2.2 Tool Display and Icons

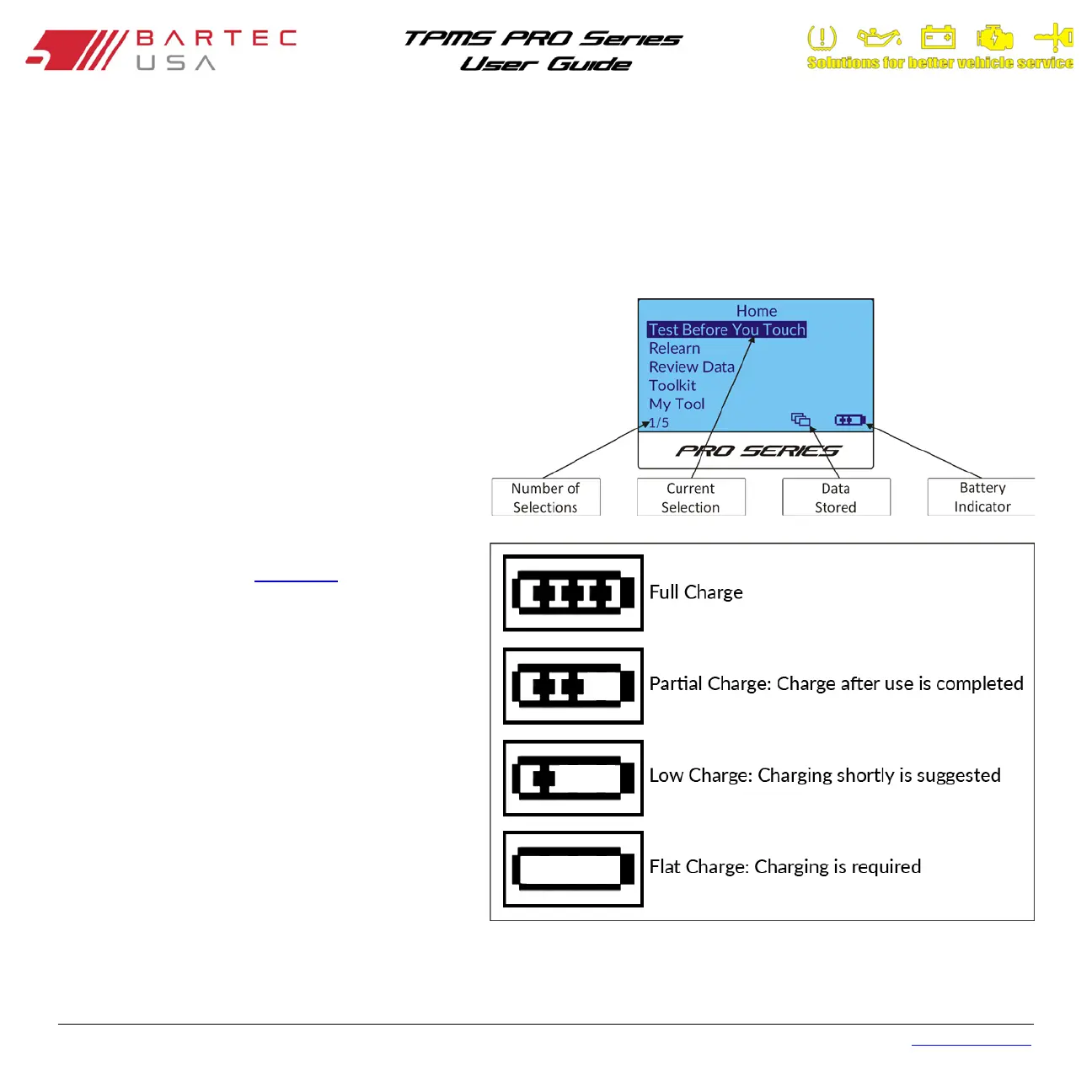

2.2.1 Menus
The PRO Series tool’s menu system provides a hierarchy of instructions and commands. The top line of the display will always
indicate the current menu selected. The Home key will always return to the Home menu with Test Before You Touch
highlighted.
Number of Selections: Indicates the menu item
currently displayed. The first number indicates the
item selected, and the second number indicates the
total number of menu selections available.
Current Selection: Highlighted items will be actioned
when pressing the Enter key.
Data Stored: Indicates data is currently stored on the
tool.
Battery Indicator: Indicates the remaining charge
status of the battery (see Section 1.3
for details).
NOTE:
Because different TPMS systems use different levels of
energy, the Battery Indicator only provides estimates
of remaining battery life left before charging is
required.
