System description
7
Operating Instructions Radiation sensors R3XX
Response time
t 0.9 = 0.2 s (without damping)
Power supply
U
H
= DC 12...30 V, max. 25 mA, residual ripple  150 mV eff.
Sensor connection
Pin
Signal
Colour
Description
1
–
–
2
–
–
3
R+
rt
Thermistor
4
R–
or
Thermistor
5
U–
sw
Thermopile –
6
U+
bn
Thermopile +
Ambient conditions
Permissible operating temperature
0...+ 60 °C
Permissible storage temperature
-10...+ 70 °C
Climatic class
KSF according to DIN 40040
Mechanical data
Type
TR 40-10
TR 41-10
Housing material
Die-cast aluminium
Plastic
Weight
480 g
520 g
Degree of protection
IP 65

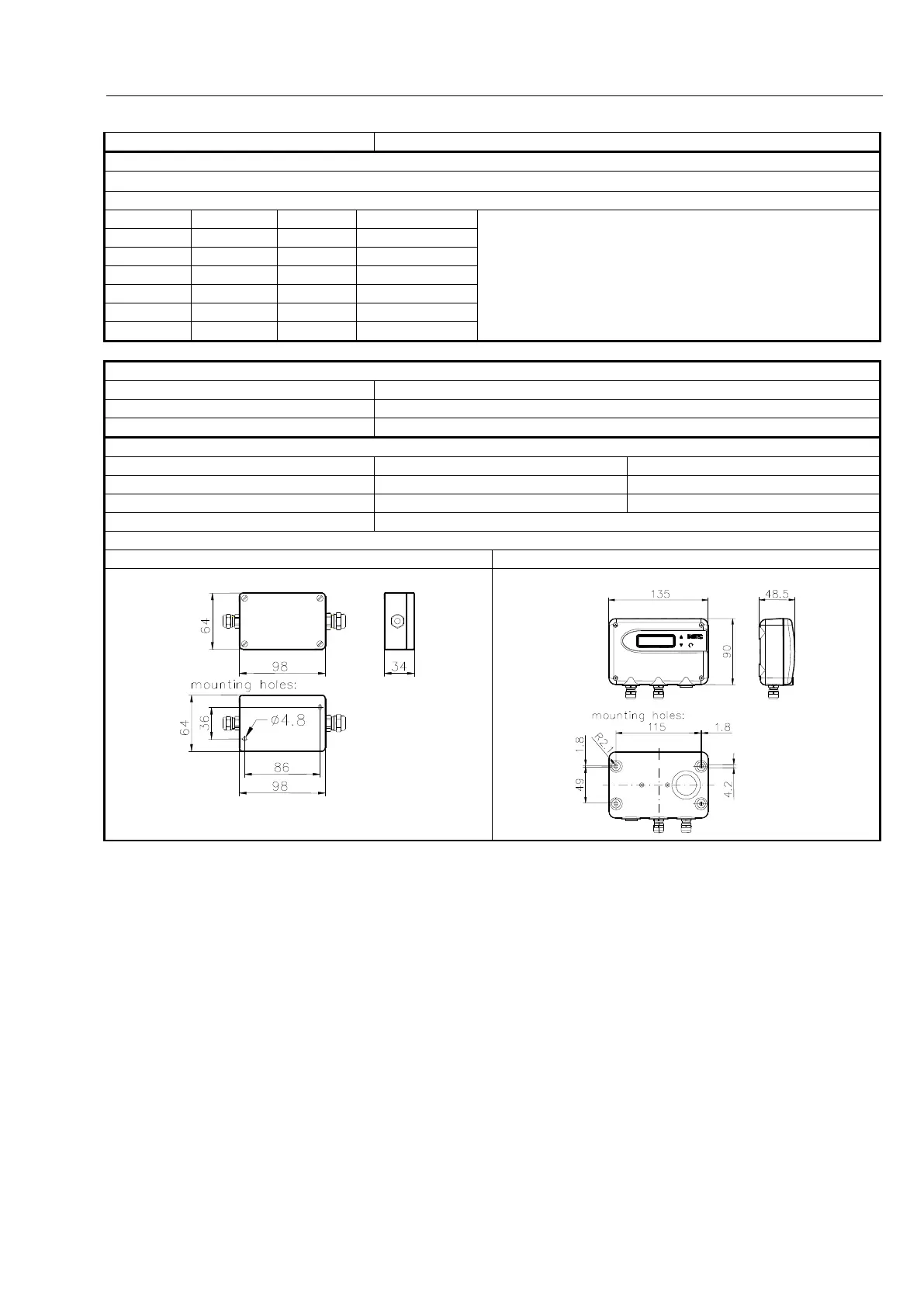

Dimensions
TR 40-10
TR 41-10
