RESOLVER ACQUISITION
With this operation will be stored in the drive the value of the resolver when the turret is in position 1,
this value will be used to verify that the required station is reached by the turret at the end zero
research (also hidden zero research).
This procedure is performed in the factory during the test drive turret and need to be repeated only in
the case that the drive or the motor are substituted or when the motor is removed from the turret.
SEQUENCE
- Make sure the turret is closed in position 1
- Switch on the drive
- Set to ON DIP No. 10. The display will start a count from 0 to 5 "
- At the end of the count back to OFF the DIP No.10
- The SA message on the display means that the data has been saved
- Switch off the drive or make a reset then call a station.

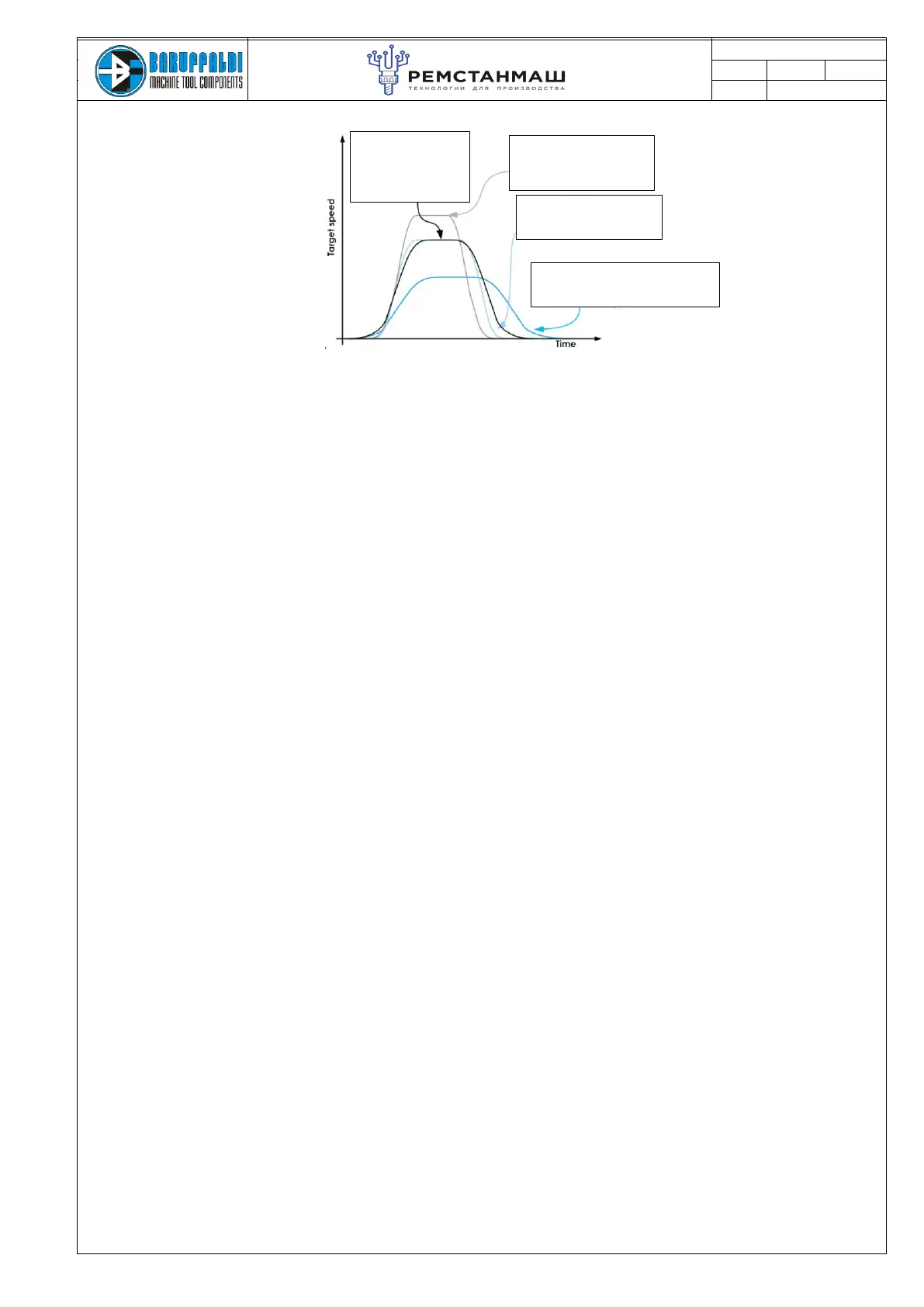

FAST PROFILE
Preferable when the inertia
is low. It allows to obtain
MEDIUM PROFILE
Similar to the universal but
with lower ramp rounding.
LOW PROFILE
Limited speed
Can be used during machine the setup.
UNIVERSAL PROFILE
Very soft acceleration
and deceleration
ramps. Ideal for any
type of inertia.
