Baruffaldi DB-21 - DIPSWITCH SETTING (FOR TURRET TYPE SELECTION); TURRET SELECTION; CUSTOM PROFILE; DYNAMIC PROFILE

M.DRIVE.DB-21.GEN.ENG
Ed.
2021 Rev.04
Pag. 13 di 31

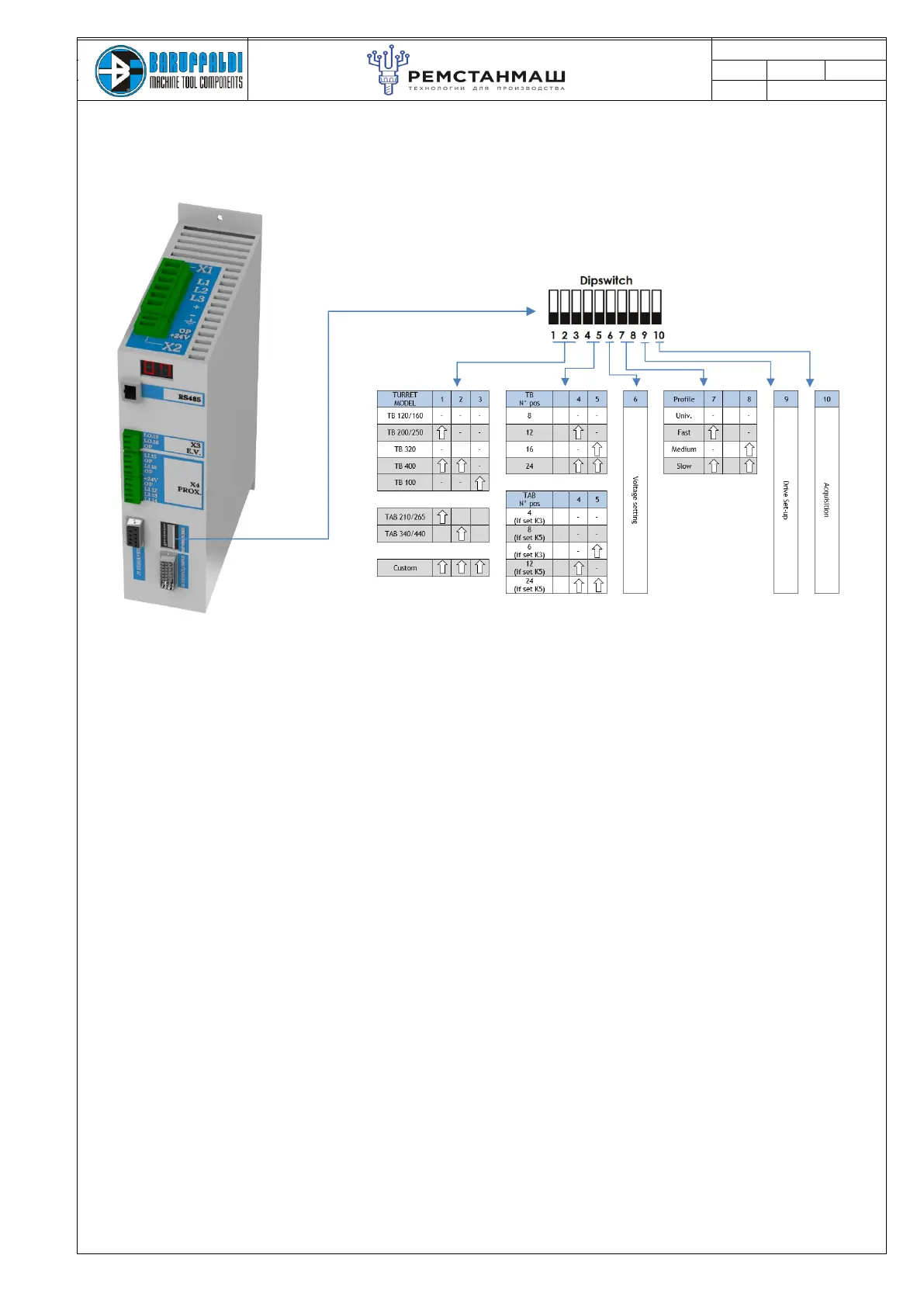

6. DIPSWITCH SETTING (FOR TURRET TYPE SELECTION)
TURRET SELECTION
The setting of the turret type, the number of positions and dynamic profile must be performed before
starting the drive (24Vdc).
CUSTOM PROFILE
For nonstandard applications can be set via software a specific profile setting manually the
transmission
ratio (T.R.), number of stations and dynamic profile, in this case a red label will be applies on the
drive.
In order to replace the drive will be necessary reset the profile via p.c. on the new one.
The custom profile is added to the standard profiles.
DYNAMIC PROFILE
It is possible to optimize the dynamic response of the drive according to the real load condition and
unbalance applied to the turret.
The dynamic profile acts on the values of rounding ramp, target speed, acceleration, deceleration and
compensation of inertia.
