M.DRIVE.DB-21.GEN.ENG
Ed.
2021 Rev.04
Pag. 17 di 31

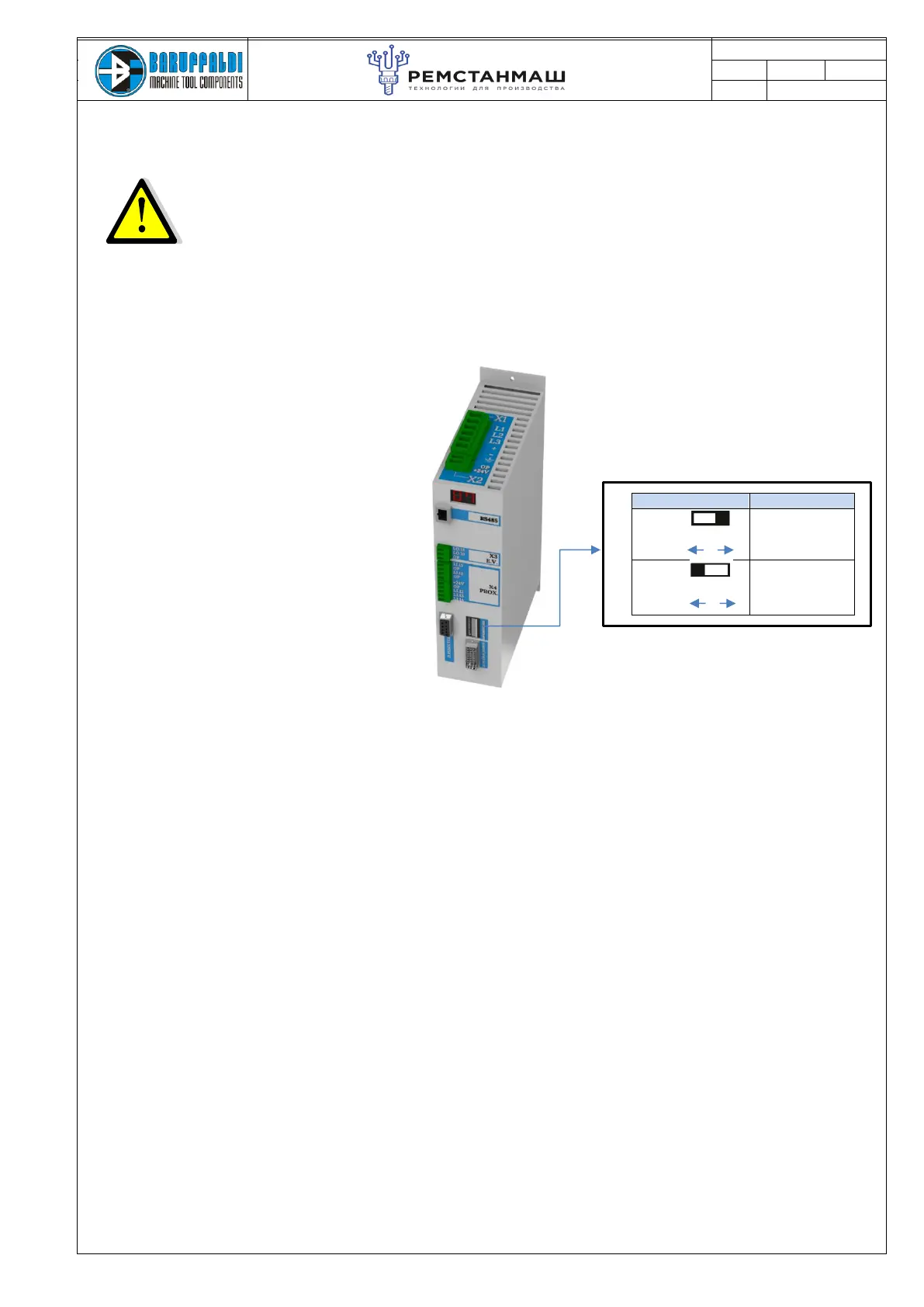

9. DRIVE SET-UP (NEW TURRET INSTALLATION)
CAREFULLY CHECK THE SERVO DRIVE INPUT VOLTAGE SETTING.
A WRONG SETTING OF THE INPUT VOLTAGE WOULD DAMAGE IRREVERSIBLY THE UNIT.
THE DRIVE ARRIVE WITH THE TURRET PRE-SET, PERFORM THE OPERATION SEQUENCE 2a AND
2b ONLY IN CASE OF WRONG PRESELECTION OF THE TURRET SIZE AND TYPE AND EVENTUALLY
CONTACT BARUFFALDI.
DIPSWITCH N° VOLTAGE RANGE
6
400V 50/60Hz
6
230V 50/60Hz
Sequence of operations N°1
(VOLTAGE SETTING)
1. Drive OFF (24Vdc Off)
2. Set OFF dipswitch n°6 if the input voltage
is 400V, set ON dipswitch n°6 if input voltage
is 230V.
3. Drive ON
ON
OFF
ON
OFF
To Next Page
