M.DRIVE.DB-21.GEN.ENG
Ed.
2021 Rev.04
Pag. 29 di 31

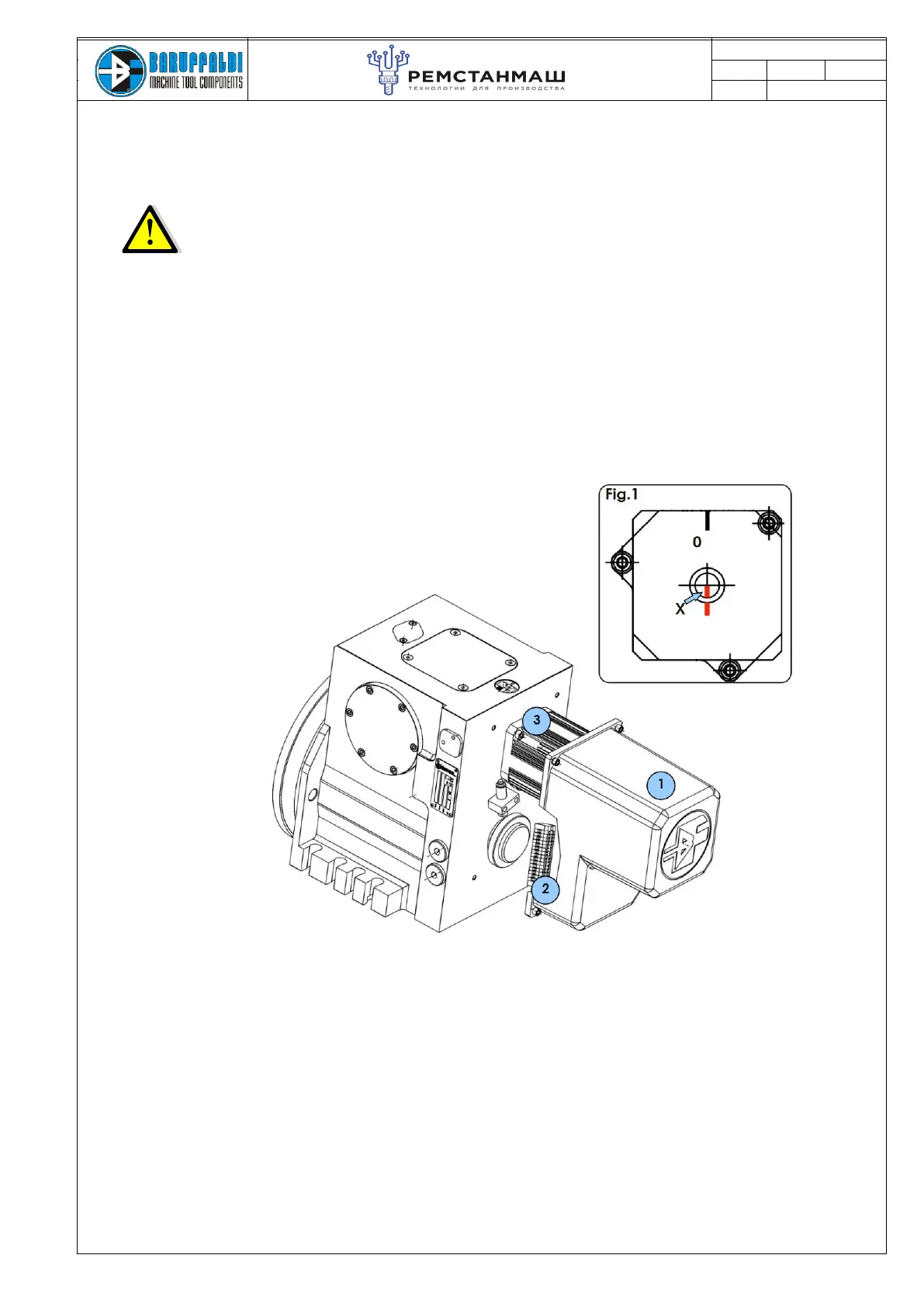

13.3 MOTOR REPLACEMENT
Next sequence must be performed with machine turned OFF, no voltage in
the circuit and without pressure in the air/hydraulic circuit.
- Turret must be locked in the position n°1
- Remove the cover of the motor (1)
- Disconnect the motor wires from the terminal block (2)
- Remove the motor (3)
- Fix the new motor with the mark (X) on its shaft settled down (fig.1)
- Connect the motor wires to the terminal block (2)
- Reassemble the cover (1)
13.4 RESOLVER ACQUISITION
- Set to ON the dipswitch n°10
- Turn the machine on
- At the end of 5" counting re-set the pin n°10 OFF
- The "SA" letters on the display means that the acquisition is finished
- The Drive is now ready to work
