M.DRIVE.DB-21.GEN.ENG
Ed.
2021 Rev.04
Pag. 19 di 31

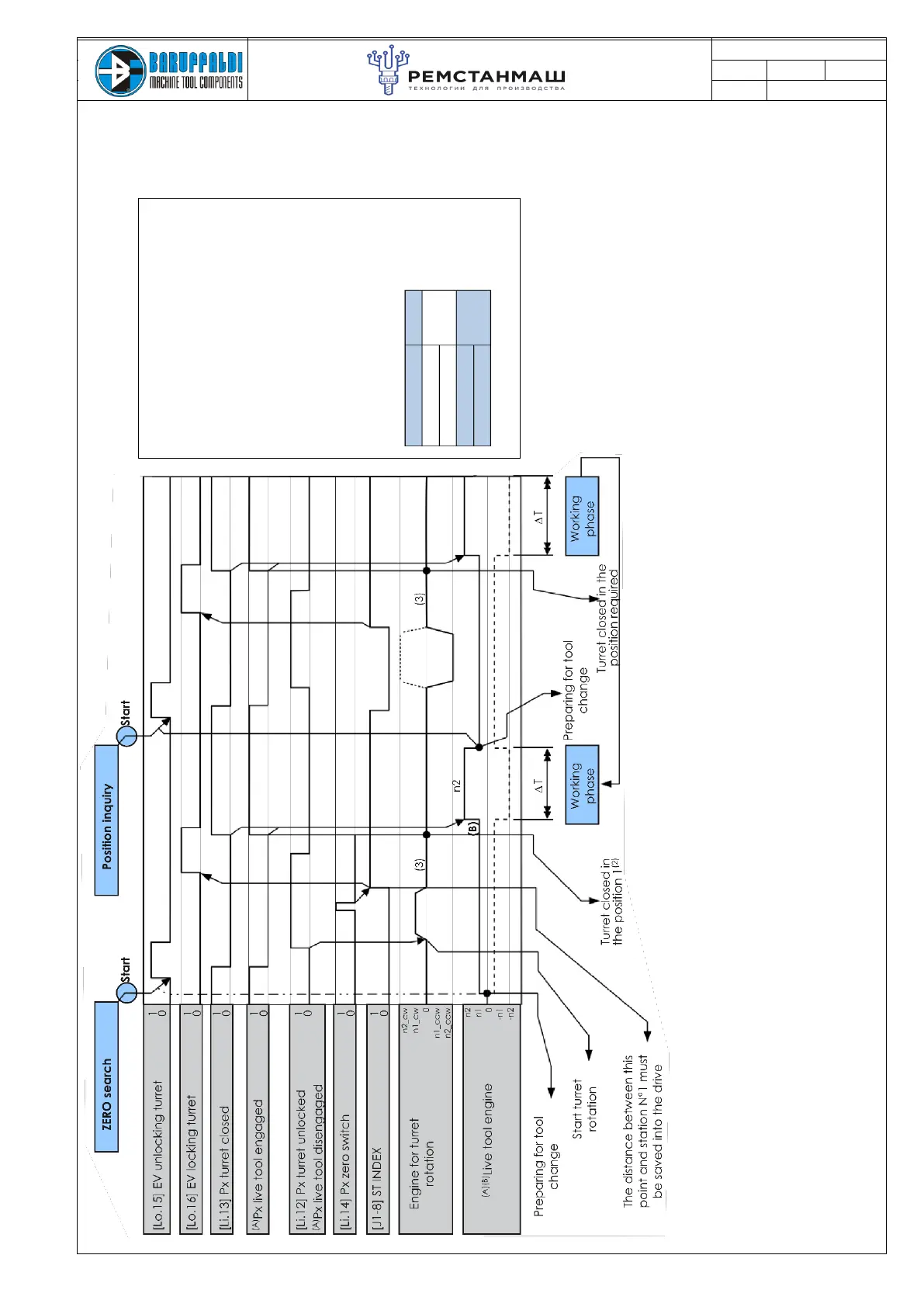

10. DUTY CYCLE (BARUFFALDI LIVE TOOL TOOLING SYSTEM)
(A) Only motorized turrets
(B) Keep the live tool engine at
100÷150rpm during the closing of
the turret
(2) Hidden Zero search: with turret
not indexed (for ie after start up or
a reset) you can directly call a
station, the turret will rotate in the
CW direction at low speed, pass
over through the mechanical
station 1 without stops and goes
straight to the position required.
(3) Engine stays in position control
ΔT Minimum time before the new
position request
Tb120/160 ΔT≥2"
Tb200/250
ΔT≥4"
Tab 210/265
Tb320/400
ΔT≥5
Tab 340/440
(1) Engagement of the proximity live tool switch engaged
The use of the signal of the live tool engaged is optional and at the discretion of the manufacturer of the CNC.
If you wish to handle the signal of live tool engaged, keep in mind that the live tool may not be engaged even if the
turret is closed due to the fact that the teeth of the motor and live tool are attested. This condition is provided,
the effective coupling and therefore also the signal from the proximity switch will arrive as soon as the tool will lean
to the workpiece
