Basic American Zenith 7000 - BED CONTROL OPERATIONS; PATIENT PENDANT OPERATION; STAFF CONTROL PANEL OPERATION

Basic American Medical Products, a division of GF Health Products, Inc. www.grahamfield.com 999-0843-190A Service Manual
13

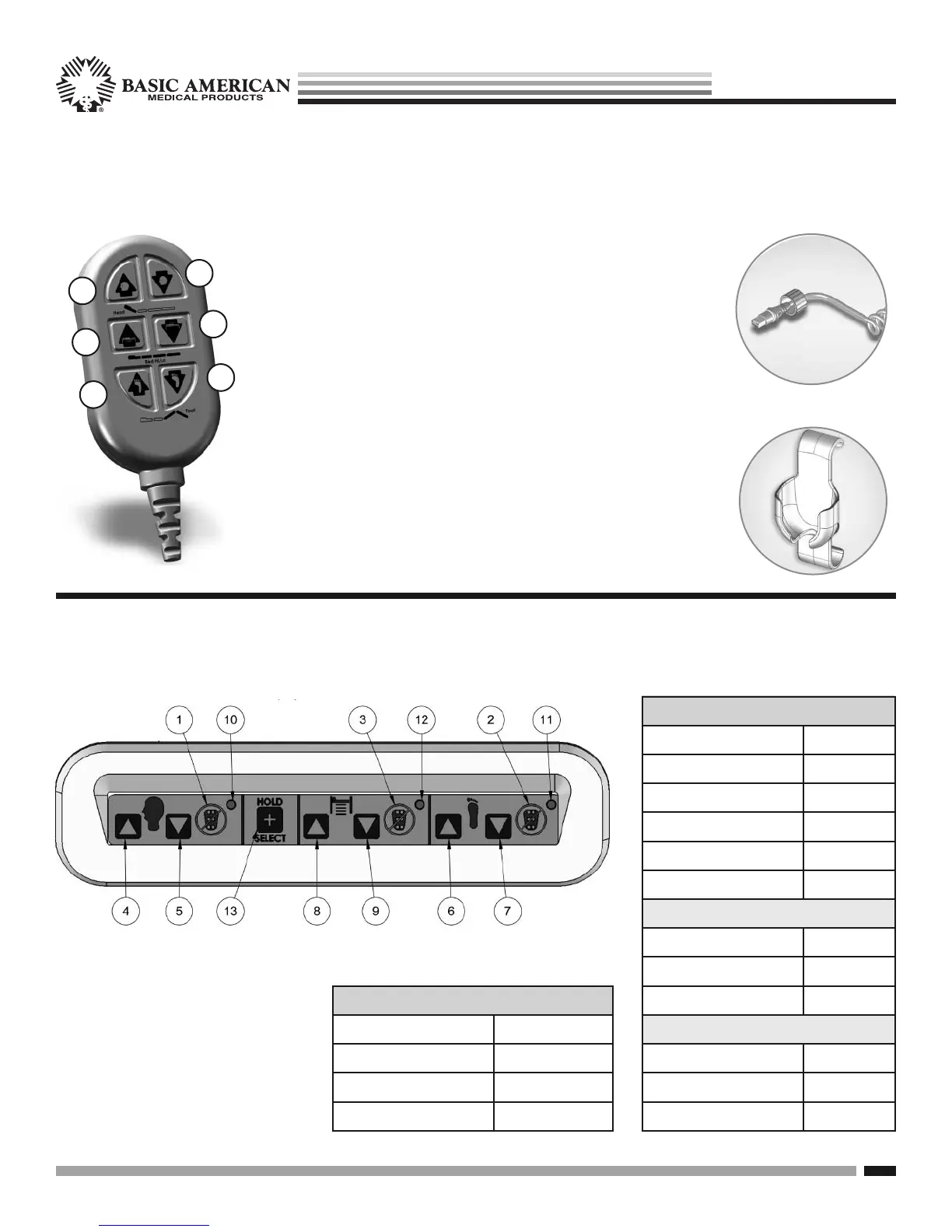

BED OPERATIONS - PATIENT PENDANT/HAND CONTROLLER
BED OPERATIONS FOR NURSE/STAFF CONTROL PANEL
(OPTIONAL FEATURE ON 7000 SERIES)
STAFF CONTROL REFERENCE
Head LED Light Item 10
Foot LED Light Item 11
Hi/Lo LED Light Item 12
Hold & Select Button Item 13
When you purchase your
boards directly from our
company, you have the
option of ordering a Nurse/
Staff Control Assembly
which comes pre-installed
into the footboard at the
manufacturing factory.
The hand controller comes standard on the Zenith 7000 series and can
be plugged into either side of the bed. The plug features a
lock-on cap. A pendant holster for attaching to optional
assist devices is also provided.
STAFF CONTROL OPERATION
Raise Head/Back Deck Push 13 & 4
Lower Head/Back Deck Push 13 & 5
Raise Knee/Foot Decks Push 13 & 6
Lower Knee/Foot Decks Push 13 & 7
Raise Entire Bed (Hi/Lo) Push 13 & 8
Lower Entire Bed (Hi/Lo) Push 13 & 9
TO LOCK OUT HAND CONTROL
Lock Out Head Function Push 13 & 1
Lock Out Foot Function Push 13 & 2
Lock Out Hi/Lo Function Push 13 & 3
TO UNLOCK HAND CONTROL FUNCTION
Unlock Head Function Push 13 & 1
Unlock Head Function Push 13 & 2
Unlock Head Function Push 13 & 3
1. Raise Head/Back Section
2. Lower Head/Back Section
3. Raise entire bed horizontally (Hi/Lo)
4. Lower entire bed horizontally (Hi/Lo)
5. Raise Foot & Knee Sections
6. Lower Foot & Knee Sections
Model #HB00
Part #999-0808-305
(Bed comes shipped with Alligator Clip
attached to pendant cable. To order a
replacement pendant, see page 28.)
Pendant Holster
999-0791-000
(included)
Phone Jack plug end
1
2
4
6
3
5
ZENITH SERIES
