Basic American Medical Products, a division of GF Health Products, Inc. www.grahamfield.com 999-0843-190A Service Manual
8

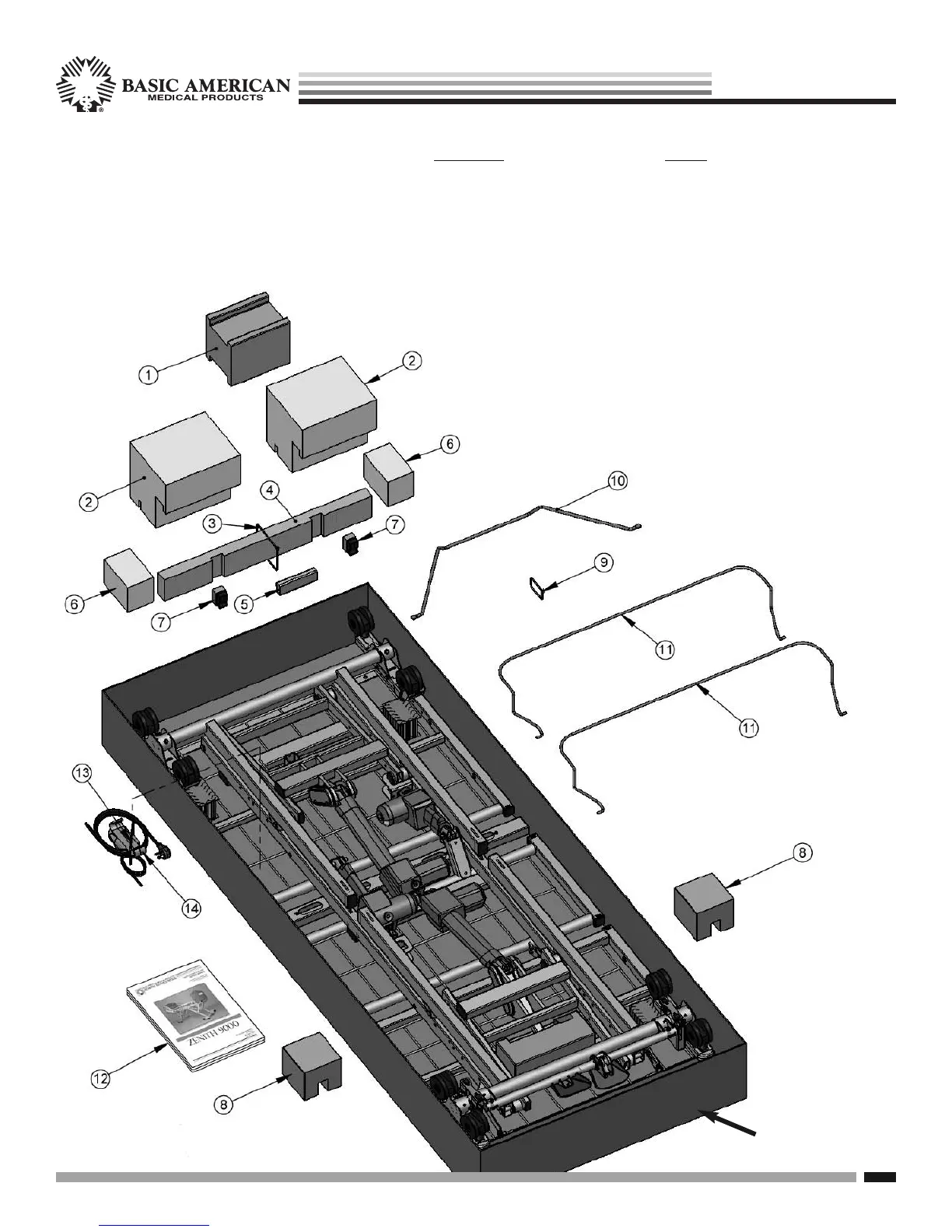

UNPACKING YOUR BED
DISCARD
1. Middle Foam Block
2. Large Block
3. Large Cable Tie - CUT
4. Notched 2 x 4 Board
5. Foam Wrapping
6. Small Side Blocks
7. End Cap with Foam
8. Notched Leg Foam
9. Small Cable Tie - CUT
KEEP
10. Wireform Wallsaver
11. Two Mattress Retainers
12. Service Manual/Documents
14. Pendant Holster
(attached to pendant)
NOTE: END OF POWER CABLE
IS COILED FOR SHIPPING AND
TIED, WITH CABLE TIE, TO GRID
WIRE ALONG WITH PENDANT,
PENDANT CABLE & HOLSTER.
PLEASE CUT AND DISCARD
CABLE TIE (#13) WHEN YOU
UN-PACK YOUR BED.
ALSO
DISCARD TOP
AND BOTTOM
CARTONS
• Make sure all parts/components are included.
• Check all bed components for obvious damage.
• Inspect the Power Supply Cord for any cuts and/or damage.
• Check to see all actuator cords are routed and connected
properly to the control box.
