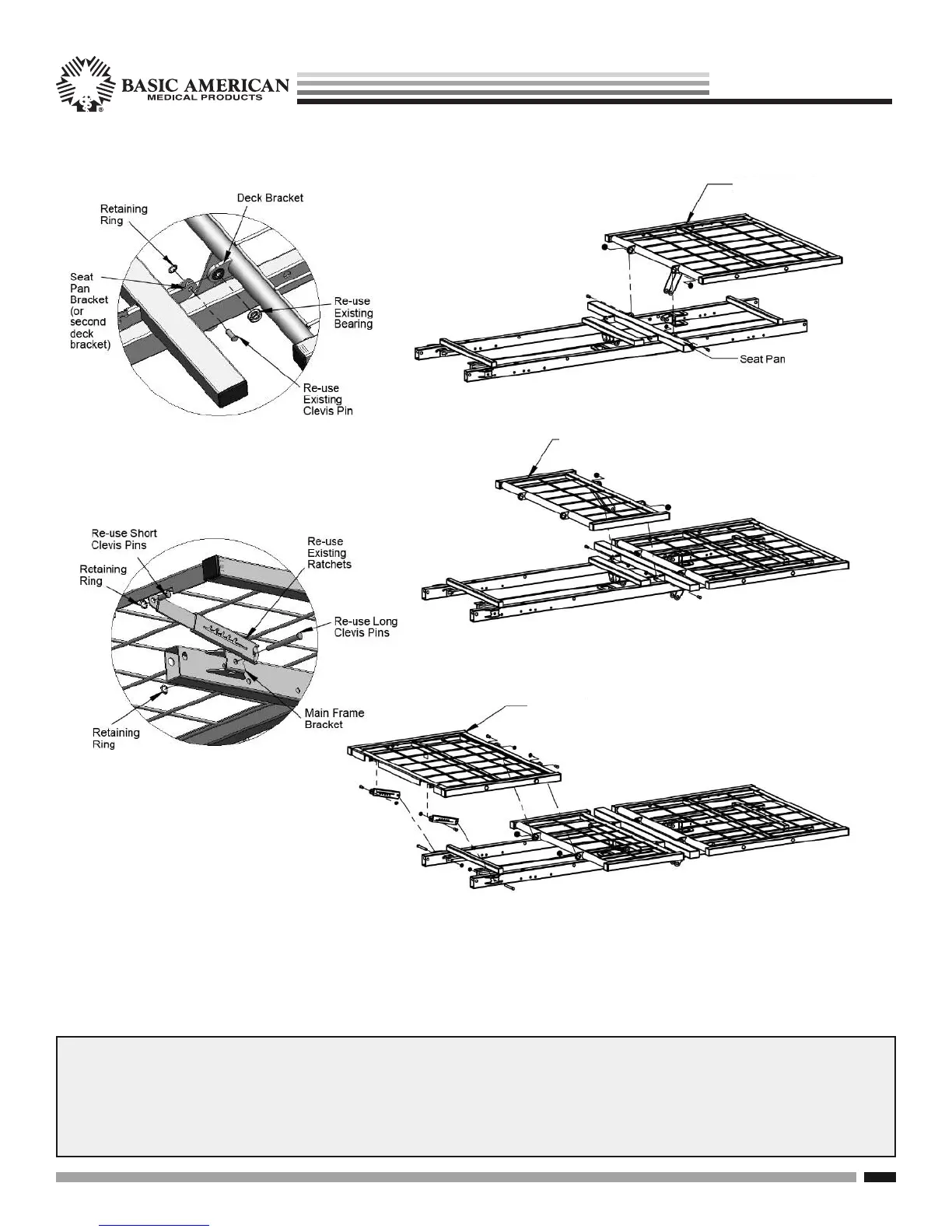

SERVICE/REPLACEMENT PART DIAGRAM - DECKING
1. TO ORDER A REPLACEMENT
HEAD DECK USE SERVICE PACK
# 999-0844-920SP (includes deck,
mounting hardware & installation
instruction sheet).
2. TO ORDER A REPLACEMENT
KNEE DECK USE SERVICE PACK
# 999-0844-940SP (includes deck,
mounting hardware & installation
instruction sheet).
3. TO ORDER A REPLACEMENT
FOOT DECK USE SERVICE PACK
# 999-0844-930SP (includes deck,
mounting hardware & installation
instruction sheet). Re-use existing
edema ratchets and ratchet hardware.
FOOT DECK TO
KNEE DECK
MOUNTING BRACKETS
KNEE DECK
TO MAIN FRAME
SEAT PAN BRACKETS
HEAD DECK
TO MAIN FRAME
SEAT PAN BRACKETS
DETAIL OF DECK
ATTACHMENT
(Similar for all decks)
DETAIL OF EDEMA
RATCHET RE-ATTACHMENT
(Use existing ratchets)
999-0844-920SP
999-0844-940SP
999-0844-930SP
ZENITH SERIES
