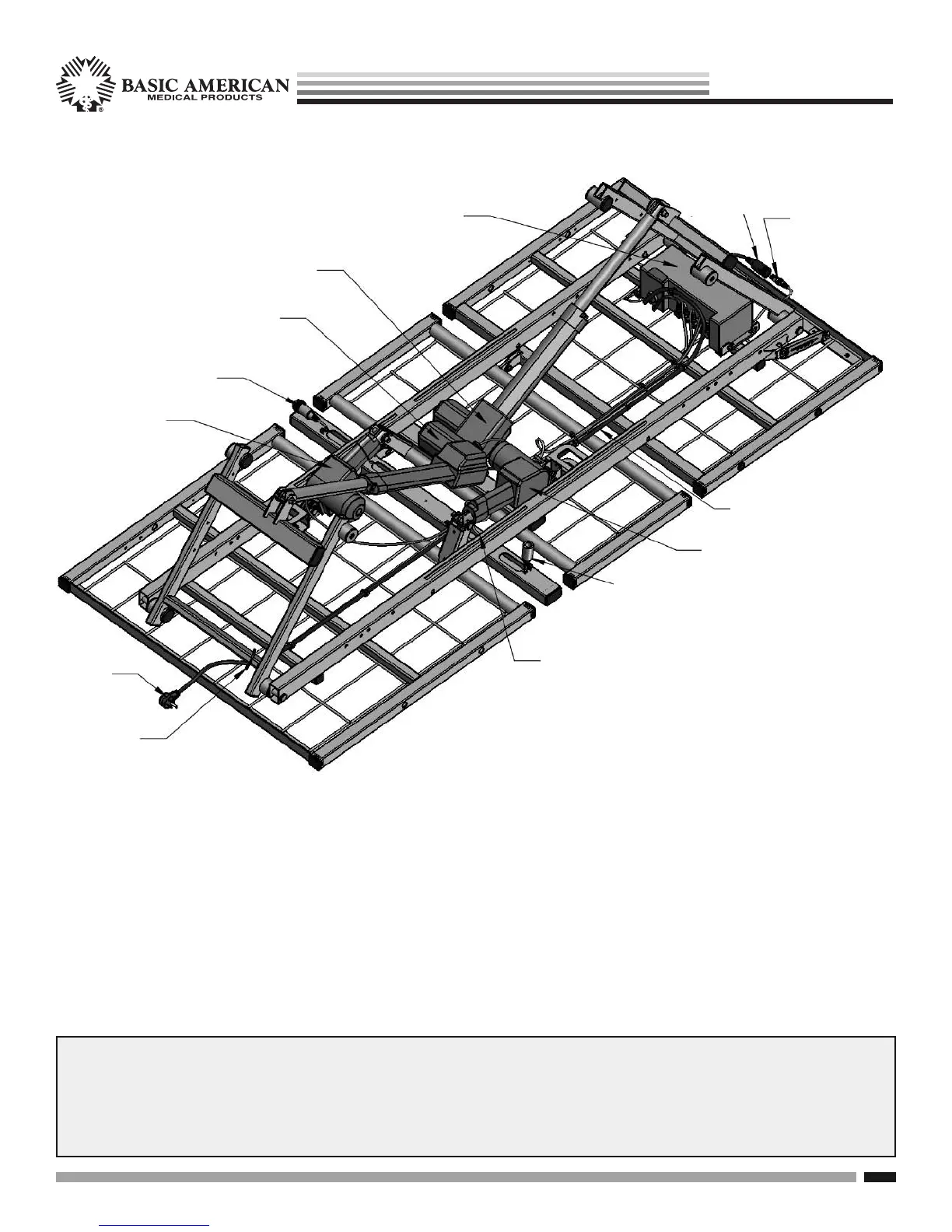

LONGER SIDE OF T-CABLE
WITH PUSH CABLE TIE
SHORTER SIDE
OF T-CABLE WITH
PUSH CABLE TIE
IN SMALL HOLE
CABLE PROTECTION
GROMMET IN SEAT
PAN KEY HOLE
CABLES SECURED TO
ROD WITH CABLE TIES
HEAD MOTOR
IN SMALL HOLE
FOOT/KNEE
HEAD-END
HI/LO MOTOR
FOOT-END
HI/LO MOTOR
FOOT END
OF T-CABLE
(GREY)
CONTROL
CABLE
(BLACK)
CONTROL BOX
MOTOR
POWER
CABLE
CABLE TIE
POWER CORD
TO CROSS BRACE
WHEN ORDERING REPLACEMENT PARTS WITH CUSTOMER SERVICE,
PLEASE HAVE YOUR BED’S SERIAL NUMBER AVAILABLE
TO CONFIRM WHETHER THE PART IS COVERED UNDER WARRANTY.
(SEE PAGE 5 FOR LOCATION OF SERIAL NUMBER ID LABEL)
Basic American Medical Products, a division of GF Health Products, Inc. www.grahamfield.com 999-0843-190A Service Manual
30
SERVICE/REPLACEMENT PART DIAGRAM - ELECTRONICS
1. TO ORDER A REPLACEMENT
HI/LO MOTOR USE SERVICE PACK
# 999-0843-251SP (includes motor,
mounting hardware & installation
instruction sheet).
4. TO ORDER A REPLACEMENT
CONTROL BOX USE SERVICE
PACK # 999-0844-300SP (includes
control box, cable ties, ground screw
& installation instruction sheet).
5. TO ORDER A REPLACEMENT
T-CABLE USE SERVICE PACK
# 999-0844-201SP (includes
T-cable, cable ties, grommets &
installation instruction sheet).
6. TO ORDER A REPLACEMENT
CONTROL CABLE USE PART
# 999-0844-200SP (includes black
control cable and cable ties).
2. TO ORDER A REPLACEMENT
HEAD MOTOR USE SERVICE PACK
# 999-0844-052SP (includes motor,
mounting hardware & installation
instruction sheet).
3. TO ORDER A REPLACEMENT
FOOT MOTOR USE SERVICE PACK
# 999-0844-053SP (includes motor,
mounting hardware & installation
instruction sheet).
ZENITH SERIES
