46 9287500995 Rev B

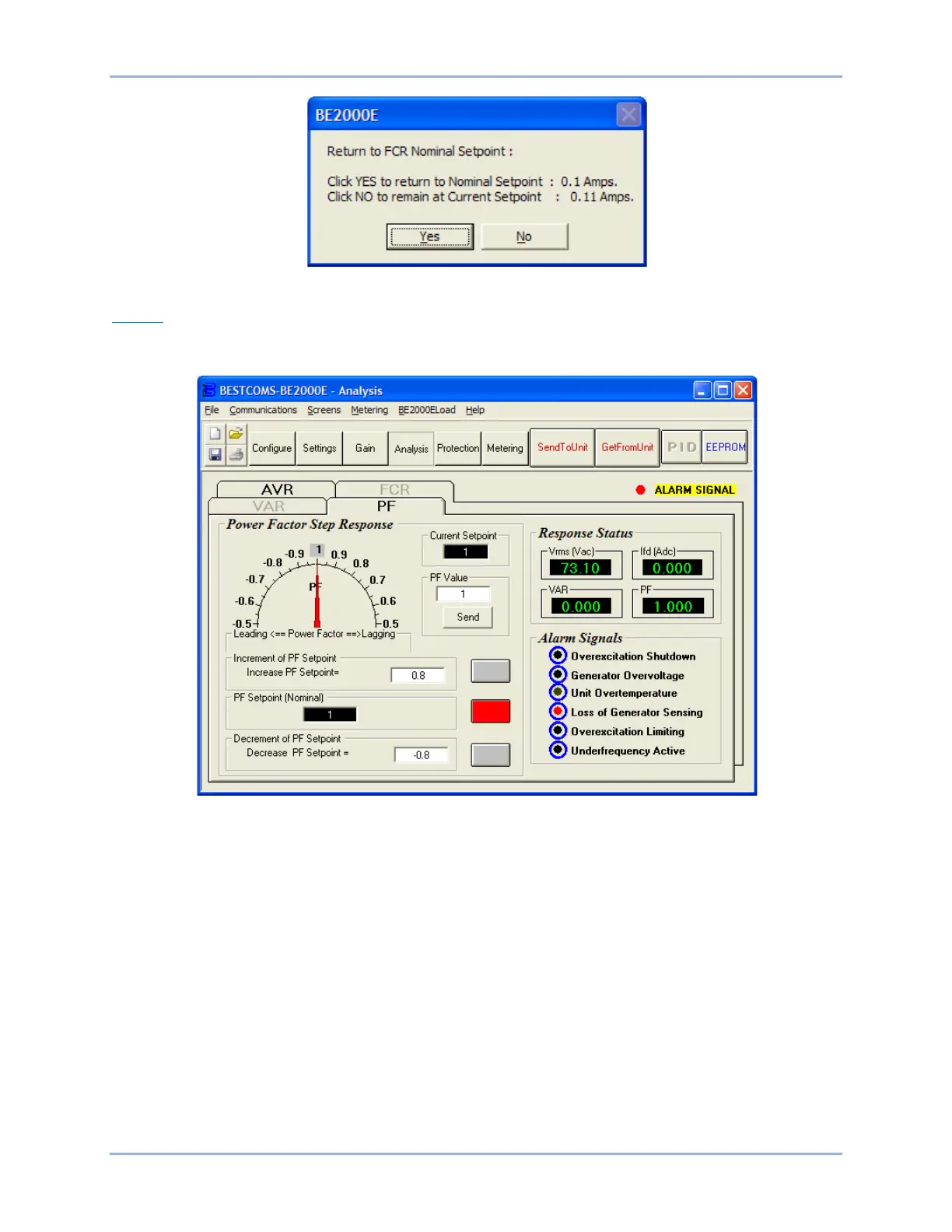

Figure 28. Message Box to Return to FCR Nominal Setpoint
PF Tab
Figure 29 illustrates the settings, sensing values, and alarm signal indicators of the PF tab. Each setting
of the PF tab is described in the following paragraphs.
Figure 29. Analysis Screen, PF Tab
Power Factor Step Response - Power Factor Setpoint (Nominal). This read-only field indicates the PF
setpoint. (The PF setpoint is set by using the Setpoint tab of the Setting Adjustments screen). The value
displayed in the PF Setpoint field is selected by clicking the adjacent button. Clicking this button sends the
PF Setpoint value to the BE2000E and changes the color of the button from gray to red.
Power Factor Step Response - Increment of PF setpoint. This field indicates the increase that occurs to
the PF setpoint when the corresponding increment button is clicked. Any setpoint value within the range
and higher than setpoint value can be input to this filed. The PF setpoint changes to this value when the
adjacent button is clicked. When clicked, the Increment button changes from gray to red to indicate that
the PF setpoint has increased to the value in the field.
Power Factor Step Response - Decrement of PF setpoint. This field indicates the decrease that occurs to
the PF setpoint when the corresponding Decrement button is clicked. Any setpoint value within the range
and lower than setpoint value can be input to this filed. The PF setpoint changes to this value when the
adjacent button is clicked. When clicked, the Increment button changes from gray to red to indicate that
the PF setpoint has decreased to the value in the field.
Power Factor Step Response - Meter. The meter in the PF tab shows the value selected. If a PF setpoint
value is sent by increase, decrease or setpoint button the meter shows the corresponding value and
BESTCOMS™ Software BE2000E
