Batca Fitness Systems 12 Omega 4 Owner's Manual

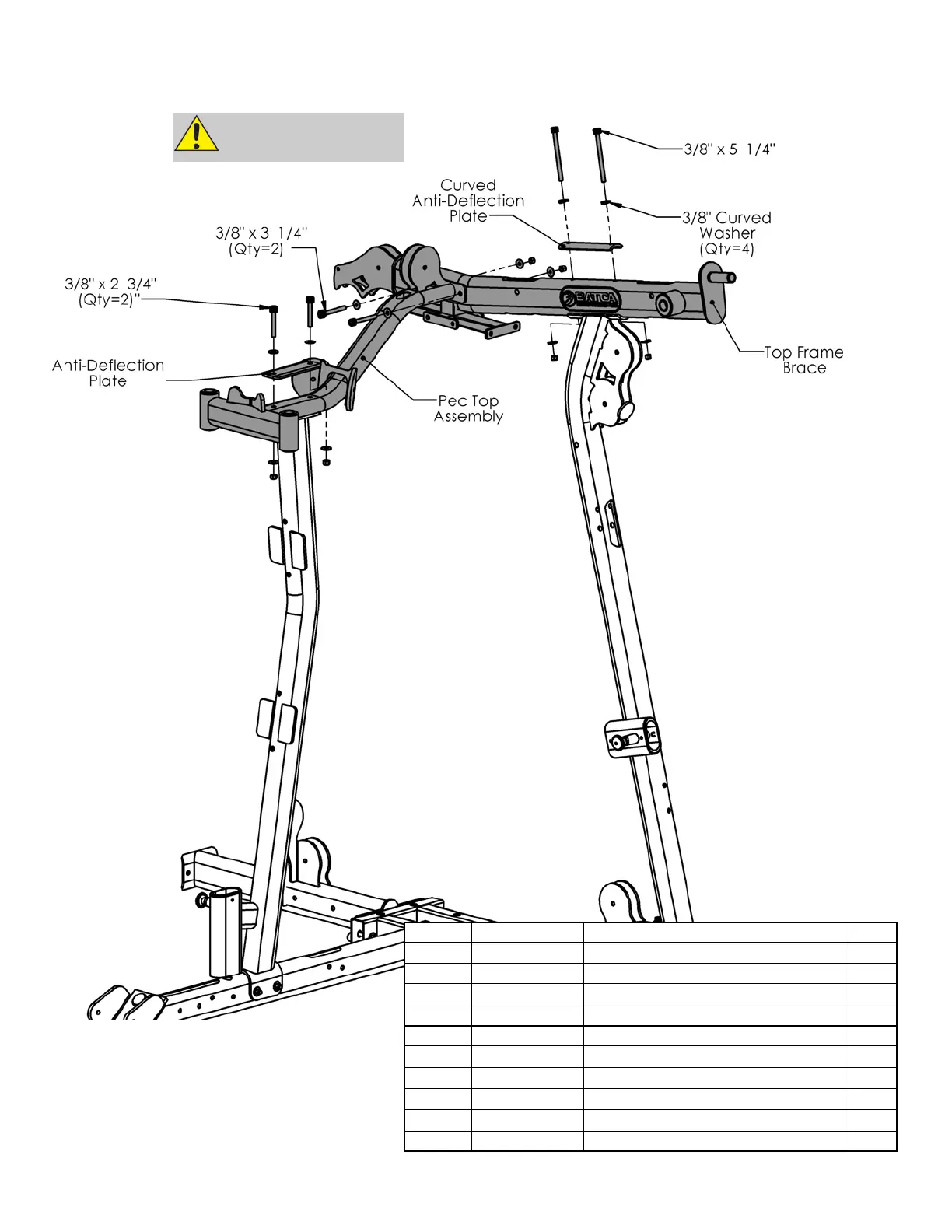

Step 3:
Figure 3
DO NOT TIGHTEN
BOLTS UNTIL STEP 4
All Flat Washers and Nylocks are 3/8”
unless otherwise noted. Anywhere a
washer is against the round side of a
tube there is to be a
3/8” CURVED
WASHER
instead of a
3/8” FLAT
WASHER.
Item # Part # Description Qty
8 BFP-10962 Pec Top Assembly 1
9 BFP-10952 Top Frame Brace 1
10 BFP-51767 Curved Anti-Deflection Plate 1
11 BFP-52143 Anti-Deflection Plate 1
100 BFP-51750 SHCS 3/8” x 2 3/4” 2
103 BFP-51748 SHCS 3/8” x 3 1/4” 2
106 BFP-51756 SHCS 3/8” x 5 1/4” 2
110 BFH-50204 3/8” Curved Washer 4
111 BFH-50146 3/8” Flat Washer 8
112 BFH-50157 3/8” Nylock 6
To Next Page
