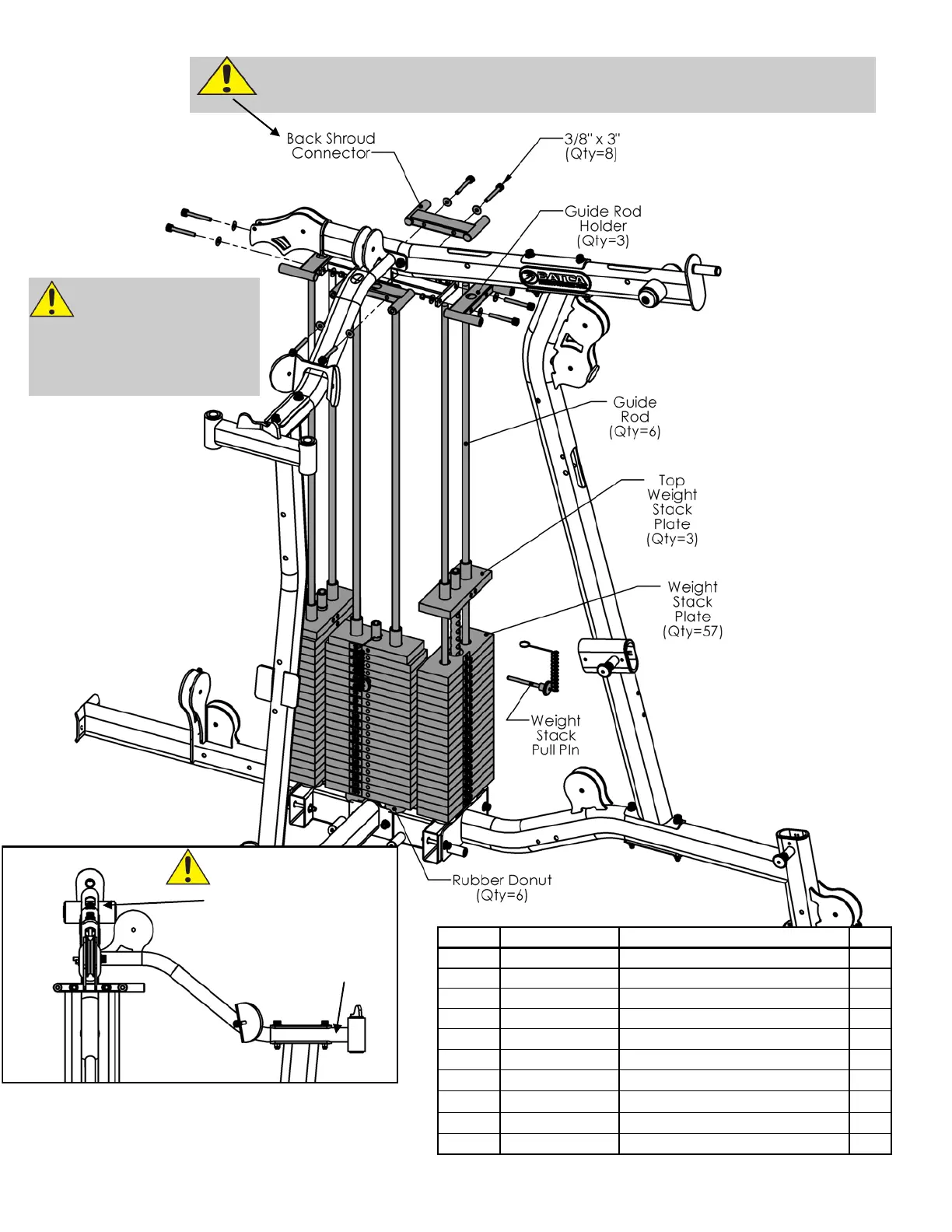

Figure 4
Step 4:
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Item # Part # Description Qty
12 BFP-10953 Guide Rod Holder 3
13 BFP-11018 Back Shroud Connector 1
14 BFM-50260 Guide Rod 6
15 BFM-10299 Top Weight Plate 3
16 BFM-50256 Weight Stack Plate 57
70 BFM-51173 Weight Stack Pull Pin 3
17 BFP-52143 Rubber Donut 6
102 BFH-51747 SHCS 3/8” x 3” 8
111 BFH-50146 3/8” Flat Washer 16
112 BFH-50157 3/8”Nylock 8
Do not install the
BACK SHROUD CONNECTOR
if leg
press was purchased.
If the Leg Press was
purchased do not
tighten bolts until
step 6. If not please make
sure all bolts are tightened
before moving on.
It is crucial that extra care
is taken to ensure the TOP
FRAME BRACE and the PEC
TOP is straight once all of
the hardware has been
tightened. If it is crooked it
WILL cause problems with
the installation of the rest
of the components of this
machine
