Batca omega 4 - STEP 17:

www.batcafitness.com 27 Omega 4 Owner’s Manual
158 11/16””
CAB-14005
Item # Part # Description Qty
120 CAB-14005
Weight Stack to High
Swivel Pulley 1
65 BFP-52165 Double Pulley Plate 2
76 BFH-50174 4 1/2” Pulley 9
78 BFP-51746 1/2” Pulley Spacer 6
94 BFH-50351 1 3/8” Shoulder Bolt 1
97 BFP-51759 SHCS 3/8” x 2” 2
98 BFP-51752 SHCS 3/8” x 2 1/4” 5
100 BFP-51750 SHCS 3/8” x 2 3/4” 3
108 BFH-50267 5/16” Nylock 1
111 BFH-50146 3/8” Flat Washer 12
112 BFH-50157 3/8” Nylock 10
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.

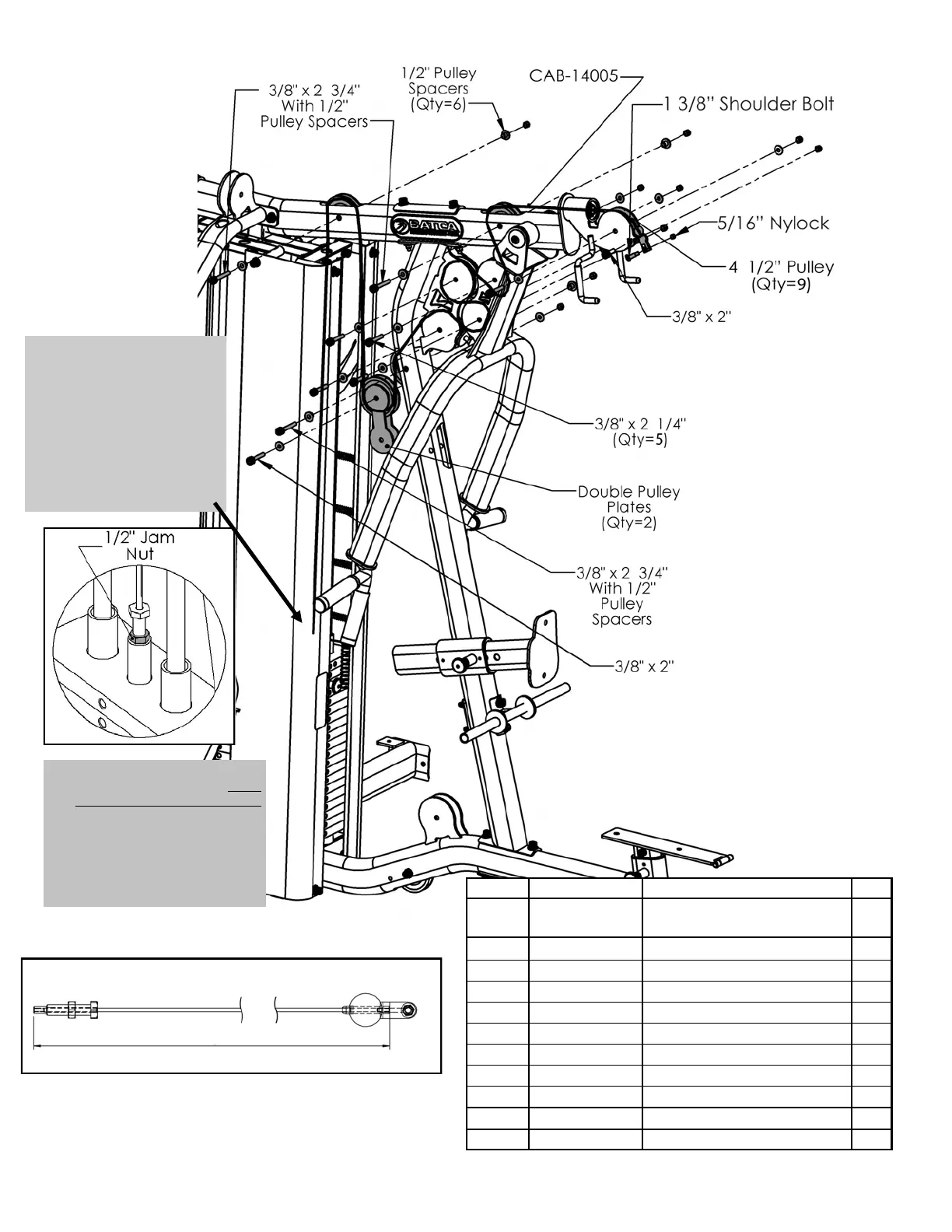

Step 17:
Figure 17
Note: The threaded bolt on
the end of the cable must
be threaded at least 1/2”
the Top Plate of the
weight stack. The bolt
must also be secured with
a 1/2” Jam Nut to ensure a
s a f e a n d p r o p e r
connection.
Start Cable
Routing here.
You must take the
Stop Ball and the
strap end off of
the cable in order
to route it.
