Batca Fitness Systems 30 Omega 4 Owner's Manual

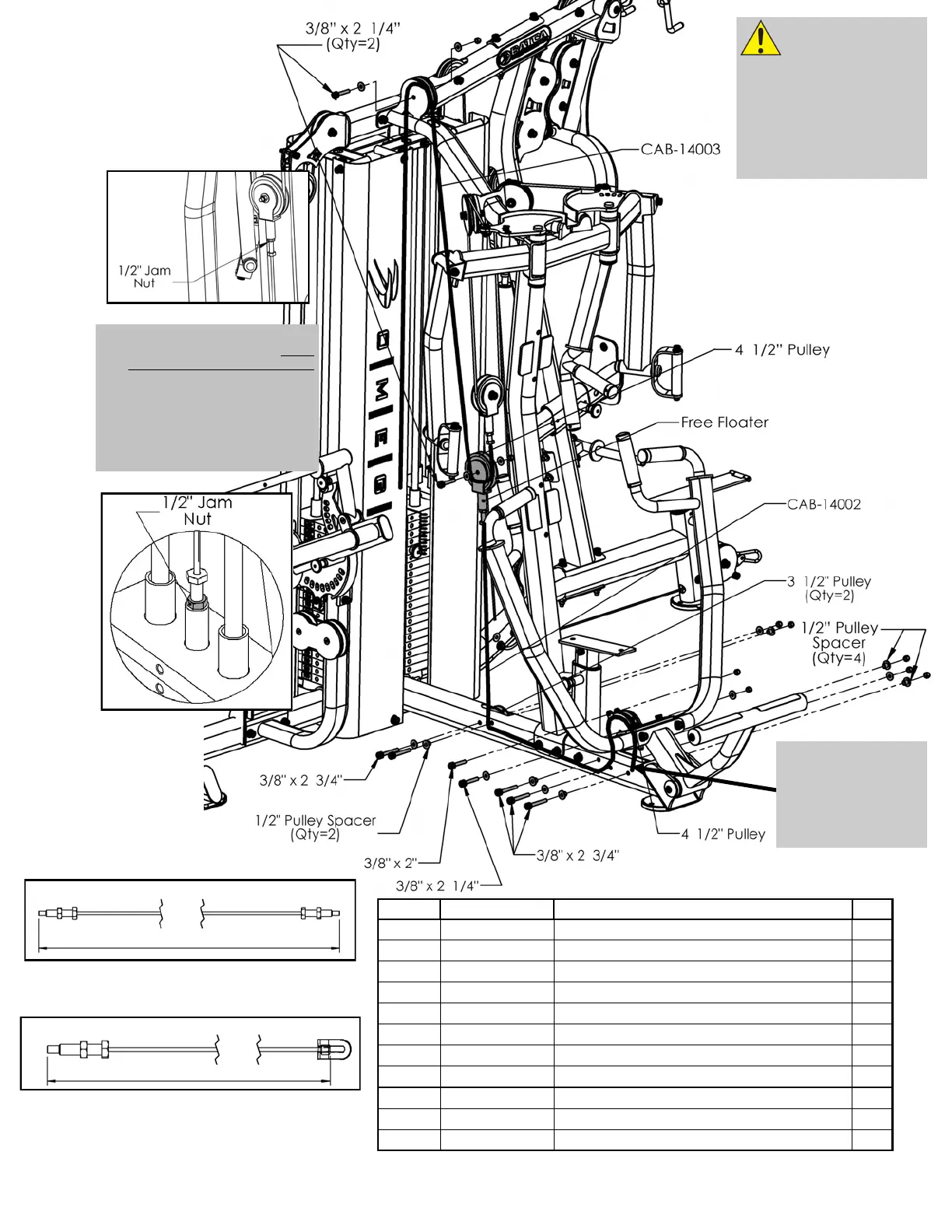

Step 20:
Figure 20
Note: The threaded bolt on
the end of the cable must
be threaded at least 1/2”
the Free Floater and Top
Weight Plate. The bolt
must also be secured with
a 1/2” Jam Nut to ensure a
s a f e a n d p r o p e r
connection.
CAB-14002
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Item # Part # Description Qty
123 CAB-14002 Free Floater to Chest Press 1
124 CAB-14003 Weight Stack to Free Floater 1
67 BFP-10838 Free Floater 1
75 BFH-50173 3 1/2” Pulley 2
76 BFH-50174 4 1/2” Pulley 3
78 BFP-51746 1/2” Pulley Spacer 6
97 BFP-51759 SHCS 3/8” x 2” 1
98 BFP-51752 SHCS 3/8” x 2 1/4” 3
100 BFP-51750 SHCS 3/8” x 2 3/4” 5
111 BFH-50146 3/8” Flat Washer 10
112 BFH-50157 3/8” Nylock 9
65”
112 5/8”
CAB-14003
Every place
that a pulley
is inside a tube
there must be a
pulley spacer in
use instead of a
flat washer.
Take Strap
End off of
cable for
easy routing.
