Operating Instructions
Level measurement
CleverLevel
®
LBFS
Point level detection

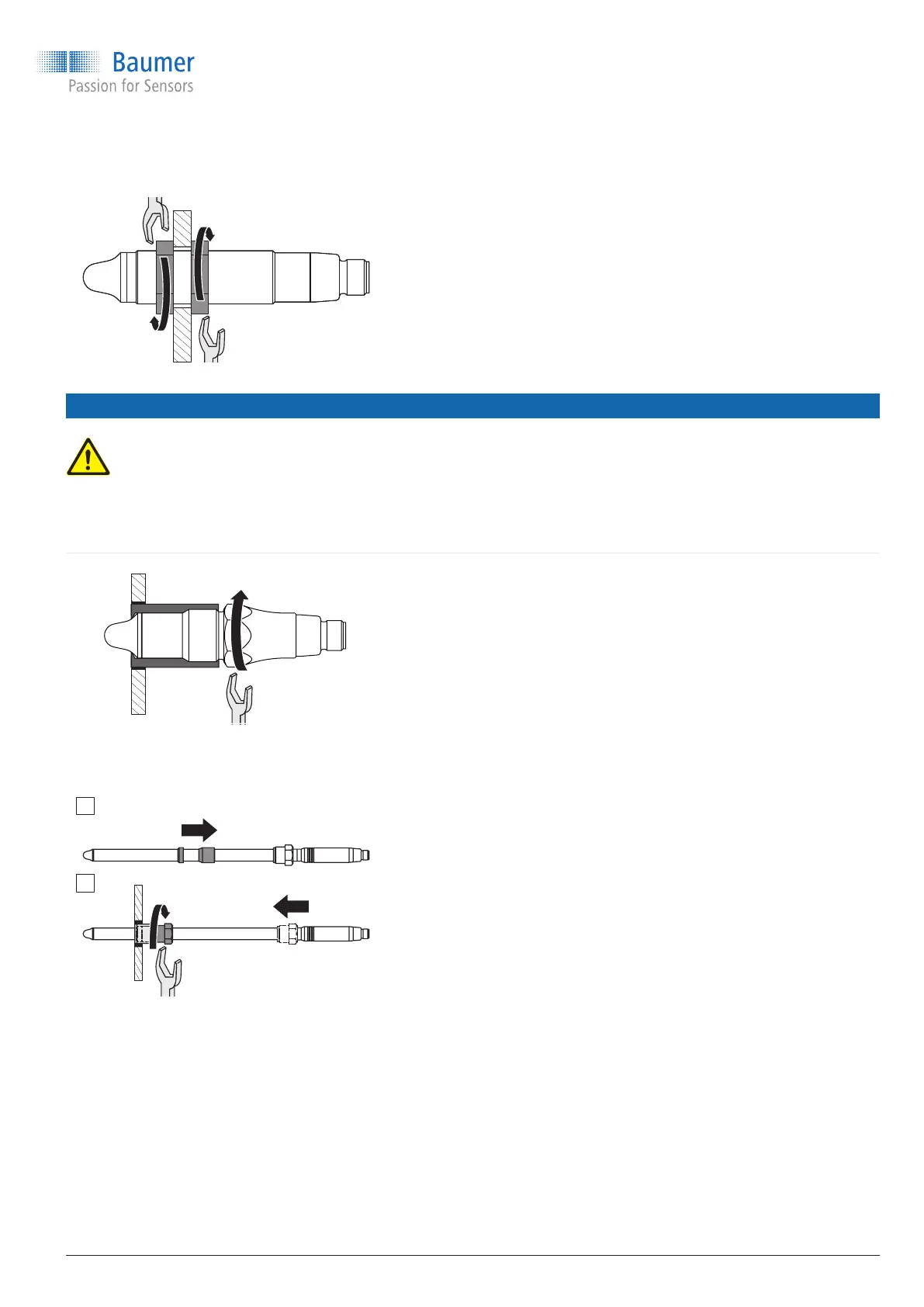

LBFS with the following process connections:
M18x1 ISO 965 (BCID M11)
9 Vessel and pipelines are free of media.
f
Screw in sensor.
f
Tighten the nuts on both sides.
Tightening torque: 15…20 Nm
5.2 Installation for hygiene applications
WARNING
Danger to health from contaminated medium
f
Only use weld-in sleeves or adapters from Baumer.
f
Do not seal process connections with Teon tape (PTFE) or elastomer.
f
Welding work must only be carried out by welders trained in the area of hygiene.
LBFS with the following process connection:
G 1/2 A hygienic (BCID A03)
9 The weld-in sleeve or adapter must be
hygienically mounted and internally ush.
9 Weld seams are smoothed out to Ra < 0.8 µm.
9 Leakage hole points downwards.
f
Screw in sensor.
Tightening torque: 10…15 Nm
1
2
LBFS with the following process connection:
G 1/2 A hygienic with adjustable connection
(BCID A03)
9 The weld-in sleeve or adapter must be
hygienically mounted and internally ush.
9 Weld seams are smoothed out to Ra < 0.8 µm.
9 Leakage hole points downwards.
9 The clamping rings must be in faultless condition
(if they are deformed, replace both clamping
rings).
f
Push the wide clamping ring on to the guide
tube.
f
Push the narrow clamping ring on to the guide
tube.
f
Position the sensor.
f
Adjust the dip depth.
Projecting length: 15…228 mm
f
Tighten the screw-in pin.
Tightening torque: 10…15 Nm
www.baumer.com
7 / 48
