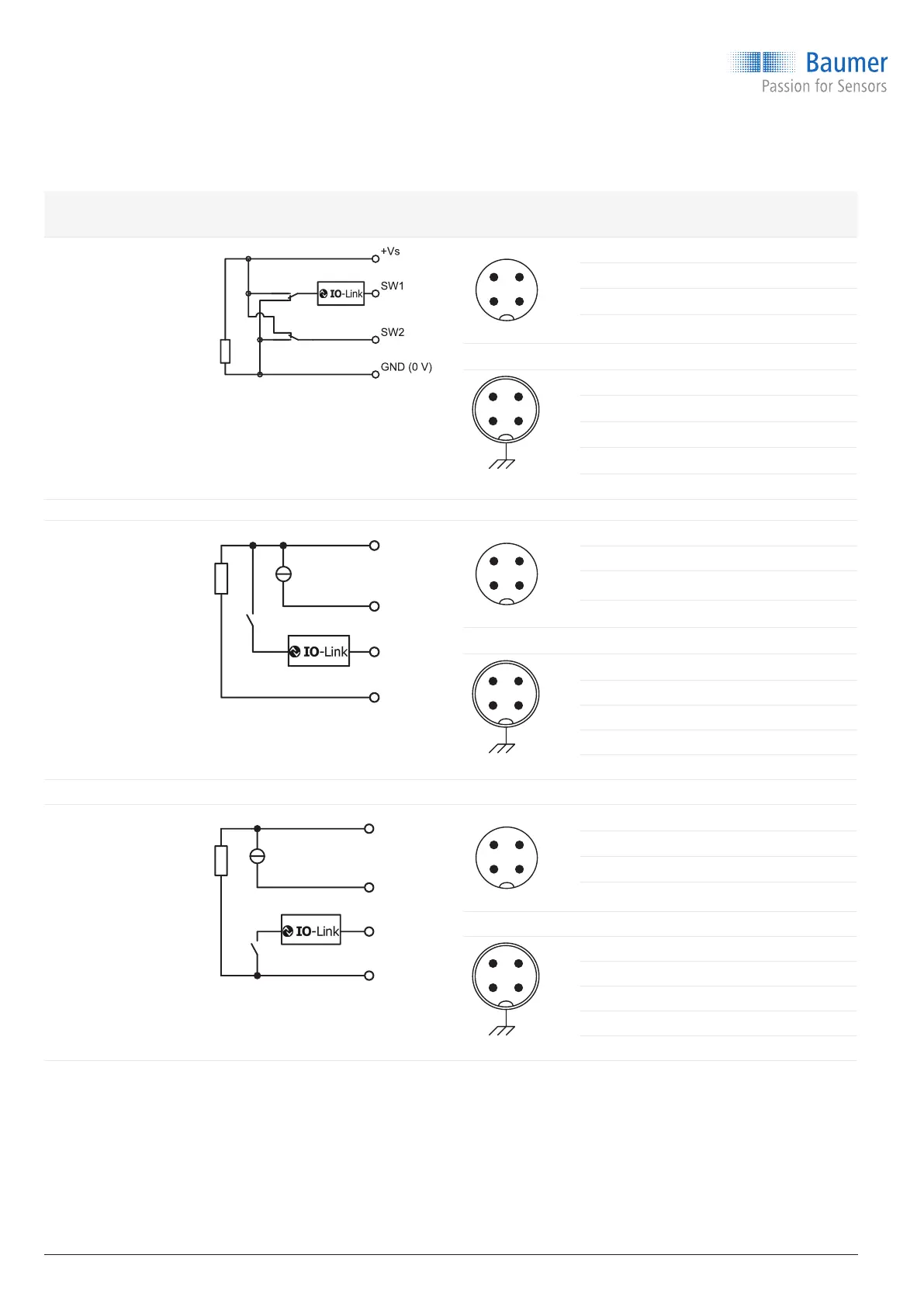

Adaptive trigger – hygienic/industrial
Output type Equivalent circuit Electrical
connection
Function Pin assignment
Programmable
output
IO-Link
Digital (push-pull)
4 3
1 2
+ Vs 1
SW1 (IO-Link) 4
SW2 2
GND (0 V) 3
4
3
1
2
+ Vs 1
SW1 (IO-Link) 4
SW2 2
GND (0 V) 3
Frame ground Plug thread
Programmable
output
IO-Link
PNP + Analog
4 ... 20 mA
lout
SW1
GND (0 V)
+Vs
4 ... 20 mA
4 3
1 2
+ Vs 1
SW1 (IO-Link) 4
Iout 2
GND (0 V) 3
4
3
1
2
+ Vs 1
SW1 (IO-Link) 4
Iout 2
GND (0 V) 3
Frame ground Plug thread
Programmable
output
IO-Link
NPN + Analog
4 ... 20 mA
lout
SW1
GND (0 V)
+Vs
4 ... 20 mA
4 3
1 2
+ Vs 1
SW1 (IO-Link) 4
Iout 2
GND (0 V) 3
4
3
1
2
+ Vs 1
SW1 (IO-Link) 4
Iout 2
GND (0 V) 3
Frame ground Plug thread
