6. Approvals
The EHEDG certicate is only valid in connection with the appropriate installation parts.
These are marked with the "EHEDG Certied" logo.
The 3-A Sanitary Standard requirements are only met with the appropriate installation parts.
These are marked with the 3-A logo.
For more information about approvals and certication, please see the product page on www.baumer.com.

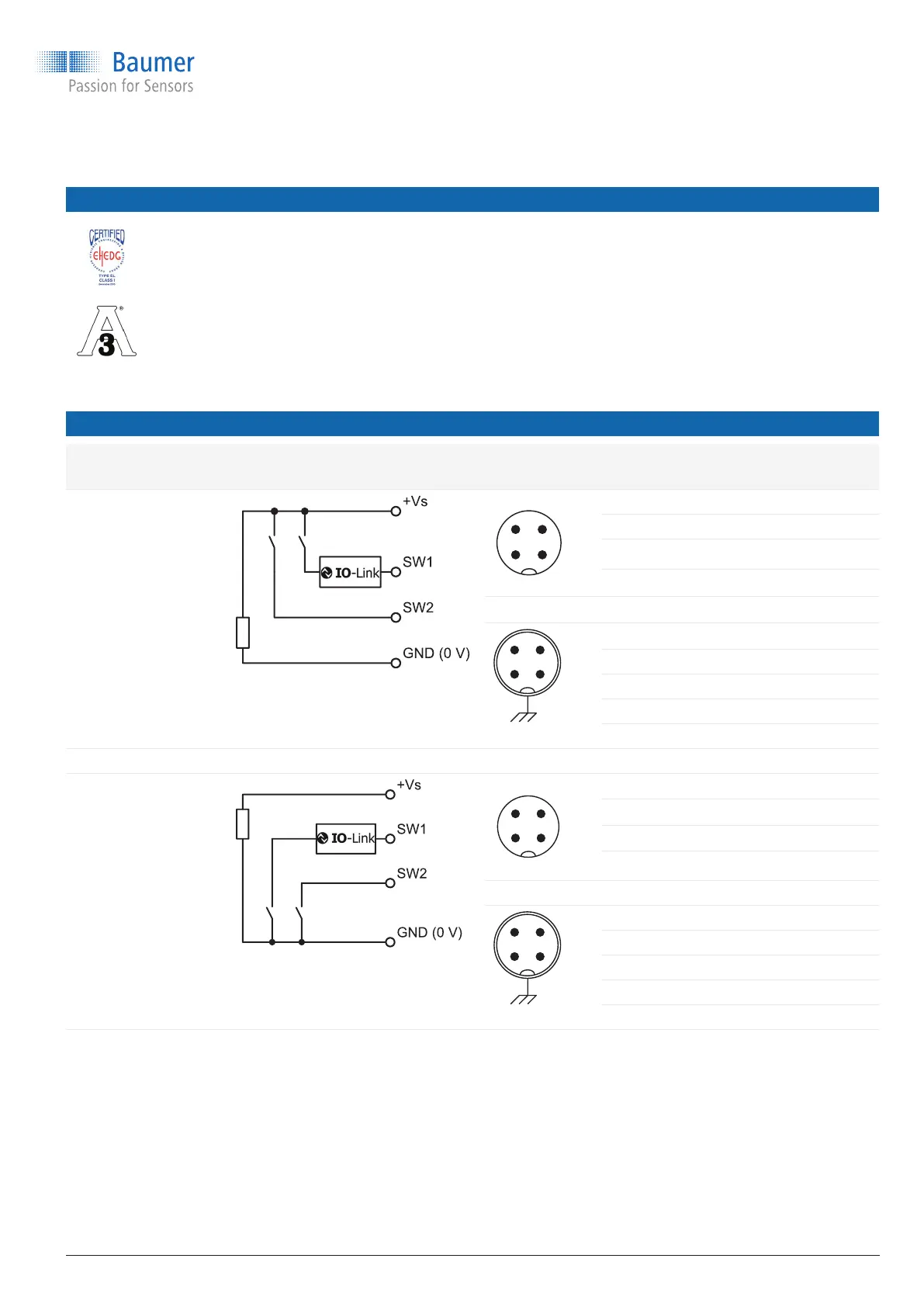

7. Electrical connection
Output type Equivalent circuit Electrical
connection
Function Pin assignment
Programmable
output
IO-Link
PNP
4 3
1
2
+ Vs 1
SW1 (IO-Link) 4
SW2 2
GND (0 V) 3
4
3
1
2
+ Vs 1
SW1 (IO-Link) 4
SW2 2
GND (0 V) 3
Frame ground Plug thread
Programmable
output
IO-Link
NPN
4 3
1 2
+ Vs 1
SW1 (IO-Link) 4
SW2 2
GND (0 V) 3
4
3
1
2
+ Vs 1
SW1 (IO-Link) 4
SW2 2
GND (0 V) 3
Frame ground Plug thread
