2 System description
2.1 Description
- Preset counter with 2 preset values and scaling factor, 6-digits
- Secondary counter with preset value and multiplier, 6-digits
- Totalizing counter, 8-digits
- Time meter, 6-digits

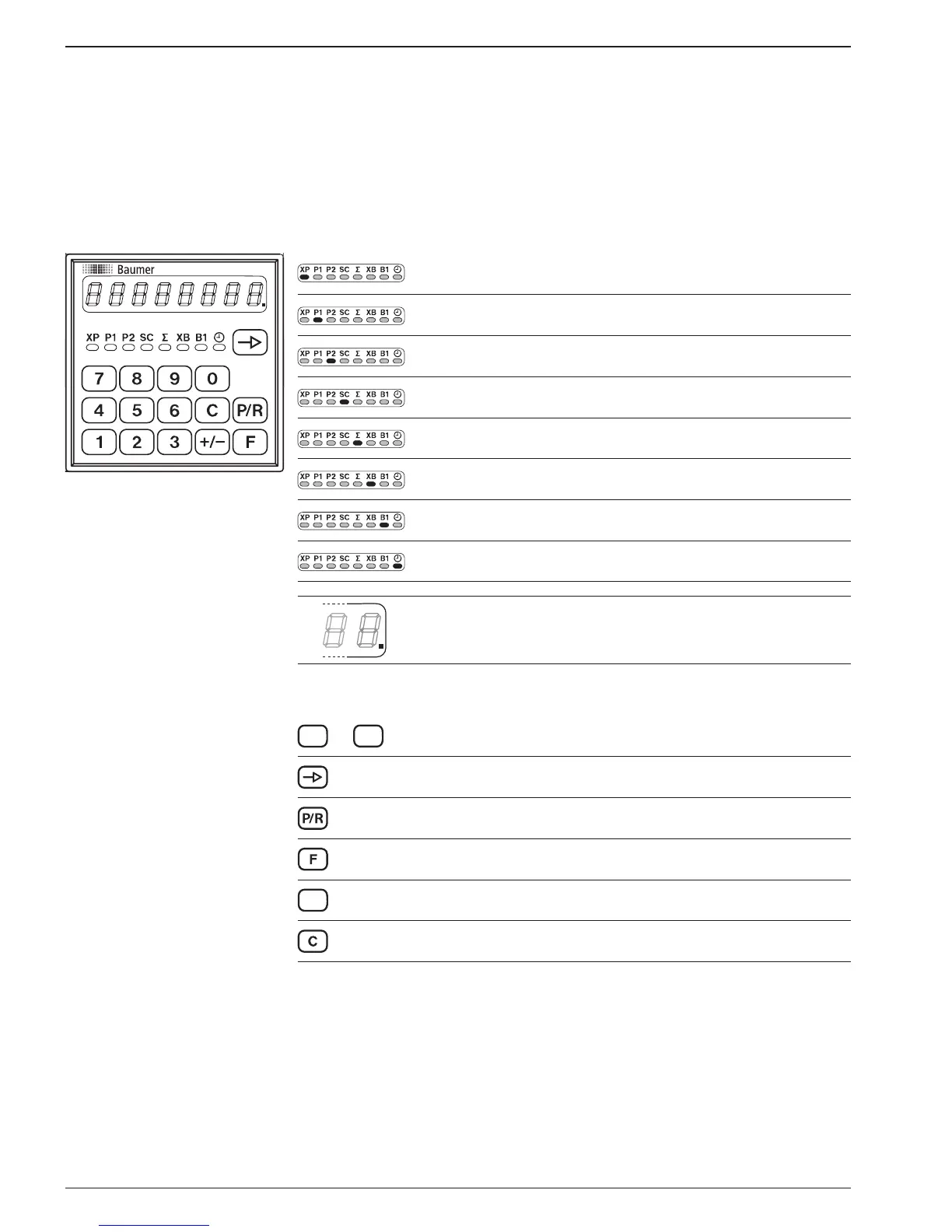

LED symbol display
72
72
67.7
18.5
108
105
1-6
7
Current main counter status
Preset value 1, main counter
Preset value 2, main counter
Start count, main counter (XP)
Totalizing counter
Counter status, batch counter
Preset value, batch counter
Current value, time meter
Output signal indicator: One or more active output
signals are visualized by a luminous decimal point.
Control panel
0
...
9
Numerical keypad
Selector key for function display
Selector key for programming/operating mode
Function key
+/-
Sign key
Reset key
