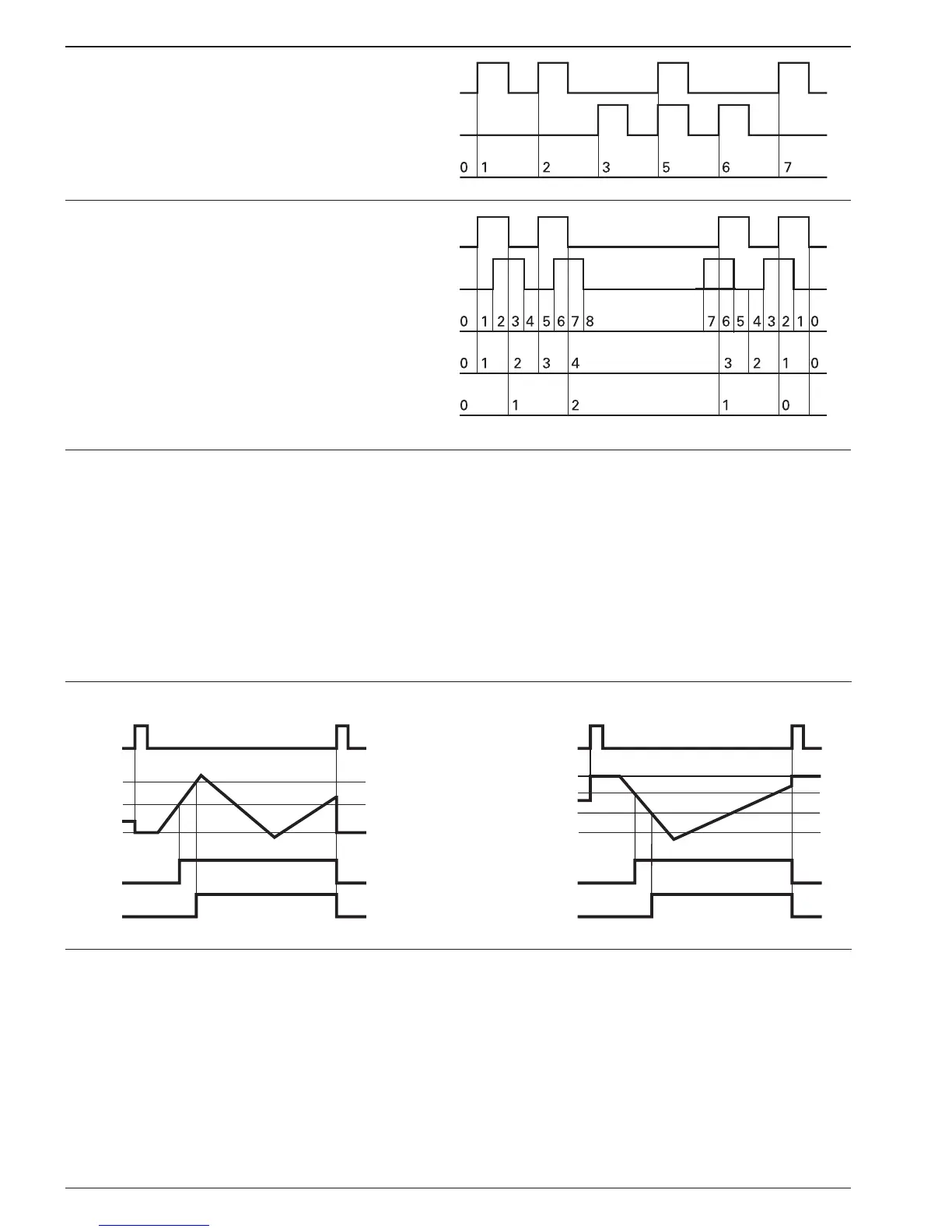

Totalizing, tracks A and B
adding (A+B)
The operating mode and con-
sequent counting direction are
selected in the programming
mode.
Track A
Track B
Counting Add.
Up/down counting with two
counting signals,
phase-offset by 90
o
. The coun-
ting direction is automatically
identified from the leading/
lagging 90° phase offset. The
internal phase discriminator
performs the necessary eva-
luation. One, two or fourfold
evaluation is possible.
Track A
Track B
Counting 4x
Counting 2x
Counting 1x
5.3 Output responses (output modes)
Signal output response is determined by the following:
- Programming of the preset value, start count value, output time,
output logic and output function,
- external resetting,
- external counting direction control.
The diagramms below show the output signal responses.
Adding operating mode Subtracting operating mode
Step preset with continuous signal, without automatic reset (start count value at zero)
RESET
VW (P2)
VW (P1)
O
OUT 1
OUT 2
RESET
VW (P1)
VW (P2)
O
OUT
1
OUT 2
SC
