Voltage supply Recommended external fusing
24 VAC ±10 % 50/60 Hz T 400 mA
48 VAC ±10 % 50/60 Hz T 400 mA
115 VAC ±10 % 50/60 Hz T 100 mA
230 VAC +6/ -10 % 50/60 Hz T 100 mA
DC voltage connection Connect an interference-free voltage supply, i.e. do not use it for
the parallel connection of drive systems, contactors, solenoid
valves, etc. Supplying lines must be separated from lines providing
load current.
➜ Connect the DC voltage according to the terminal diagram.
Voltage supply DC Recommended external fusing
24 VDC ±10 % max. 5 % RW T 400 mA
Fire protection: Operate the instrument using the recommended
external fusing indicated in the terminal diagram. EN 61010 specifies
that 8 A/150 VA (W) must never be exceeded in the event of a fault.

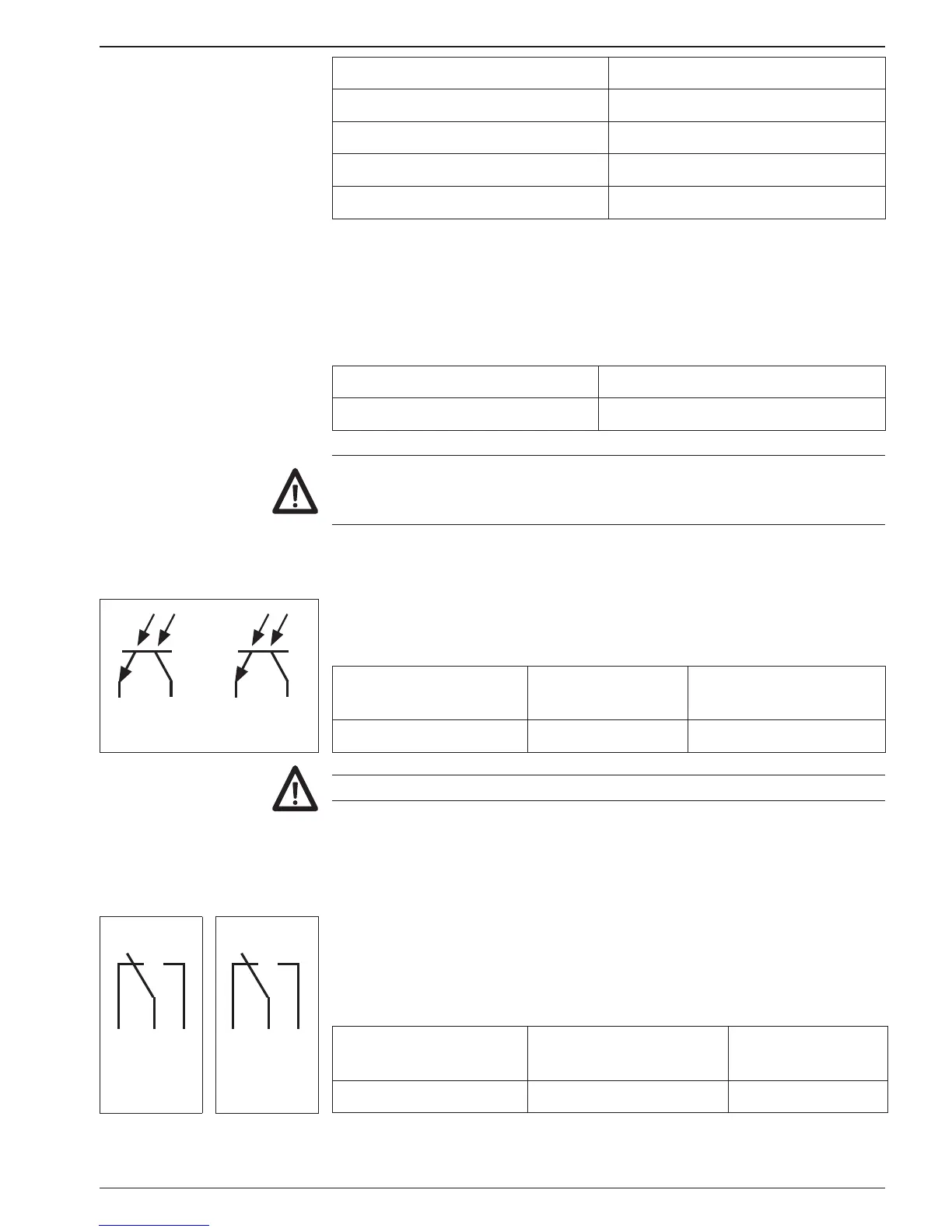

3.2 Assigning the electronic outputs
13 12
preset 2
11 10
preset 1
The electronic outputs (terminals 10, 11 and 12, 13) are optocoupler
outputs with separately assigned collector and emitter terminals.
Preset values are assigned in lines 33 of the program.
Max. switching
voltage
Max. switching
current
Max. residual voltage
+40 V 15 mA <1 V
The electronic outputs are not short-circuit proof.
➜ Assign terminals 10, 11 and 12, 13 accordingly.
3.3 Assigning the signal outputs (relay contacts)
20 21 22
preset 1
23 24 25
preset 2
Terminals 20, 21, 22 and 23, 24, 25 are no-potential changeover
contacts. The signal outputs can be assigned in accordance with
the adjoining wiring diagram.
Assignment of the relays as NO or NC contacts is effected in line
33 of the program.
Max. switching rating Max. switching
voltage
Max. switching
current
150 VA/30 W 250 V 1 A
