NE214
www.baumer.com
41

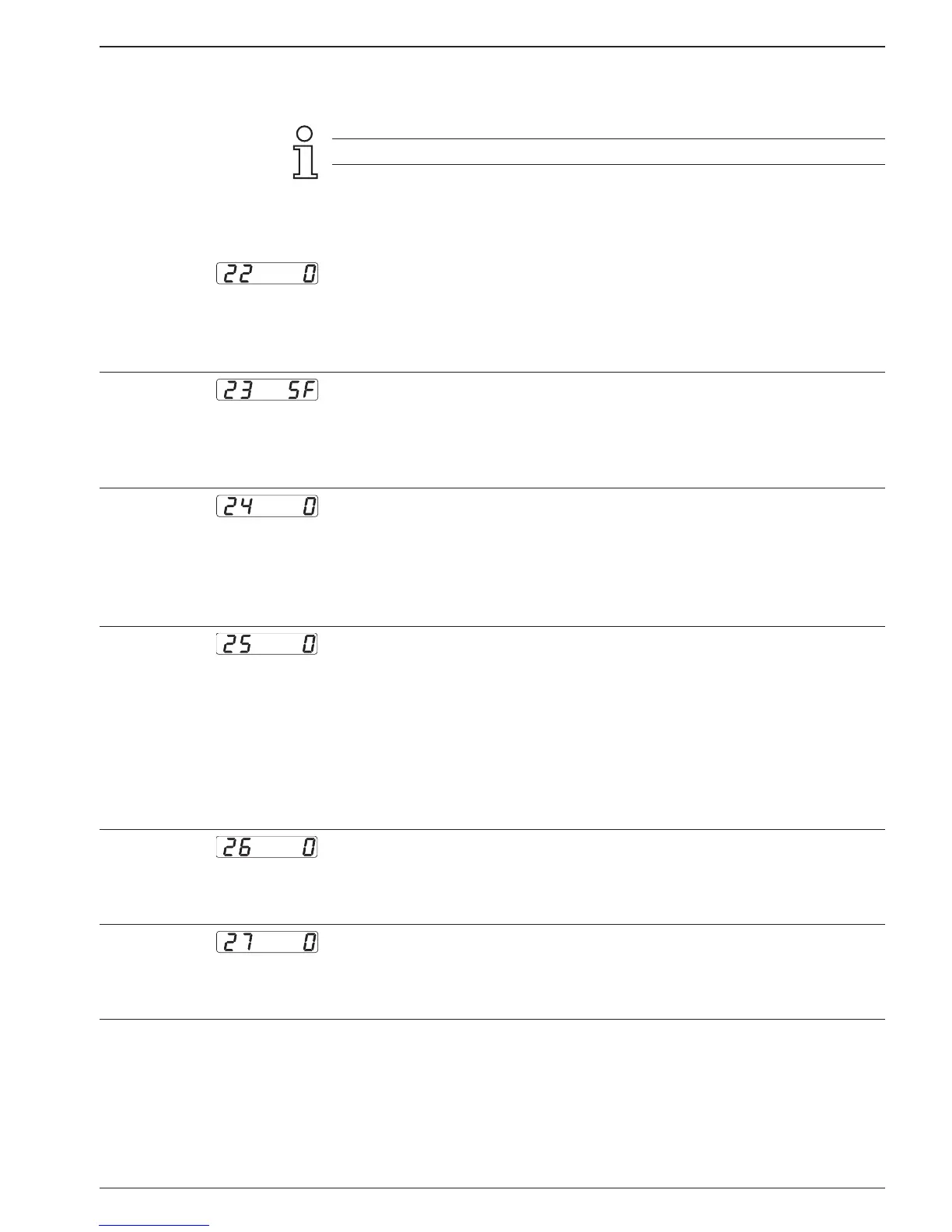

Programming segment 3
Programming segment 3 begins with programming line 22.
Programming lines are displayed in sequence in all these segments.
The factory setting is marked in each case with a *.
● Programming lines are displayed in succession.
The input is stored when the next line is called up.
Line 22 Operating modes
0 * Step preset
1 Main preset
2 Parallel comparsion
3 P1 Self-adjusting preset
Line 23
Scaling factor main counter
Scaling range 0.0001 to 9999.99
0 * 1.0000
1 0.0001
2 9999.99
Line 24
Decimal point (applies to XP, P1, P2, SC, ∑)
0 * No decimal point
1 00000.0
2 0000.00
3 000.000
4 00.0000
Line 25
Counting mode
0 * Track A and UP/DOWN signal on track B
1 Differential counting, track A adding, track B subtracting (A-B)
2 Totalizing, tracks A and B adding (A+B)
3 Track A 90° track B, single evaluation
4 Track A 90° track B, twofold evaluation
5 Track A 90° track B, fourfold evaluation
● To set track A 90° B, the input frequencies for both tracks must
be adjusted to 10 kHz (lines 26 and 27).
Line 26
Main counter frequency, track A
0 * 10 kHz
1 25 Hz
2 3 Hz
Line 27
Main counter frequency, track B
0 * 10 kHz
1 25 Hz
2 3 Hz
