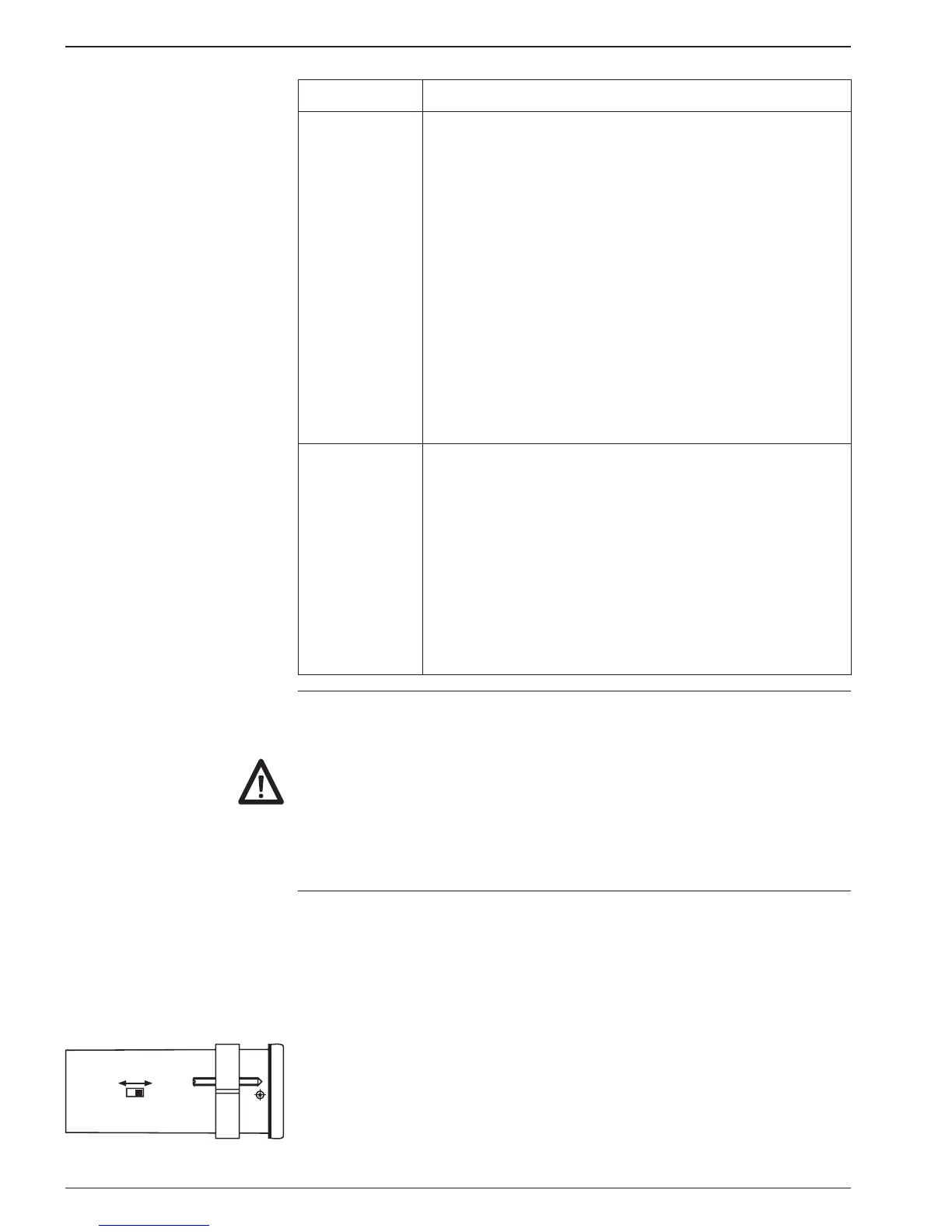

Connecting assignment
Terminal Function
1
2
3
4
5
6
7
8
9
10
11
12
13
Not assigned
Voltage supply (-)
Voltage supply (+)
Sensor supply 0 V
Sensor supply +24 V
Signal input track A
Signal input track B
Reset
Signal stop
Preset 1 (collector)
Preset 1 (emitter)
Preset 2 (collector)
Preset 2 (emitter)
14
15
16-19
20-22
23-25
27
28
29
30
Reserved for option RS485 T,R-
Reserved for option RS485 T,R+
Reserved for option RS232 or RS422
Reserved for option relay output limit value 1
Reserved for option relay output limit value 2
Reserved for option analog output
Reserved for option analog output
(jumper to U)
Reserved for option analog output (I)
Reserved for option analog output (U)
For protection against shock hazards as specified in EN 61010, stran-
ded conductors may only be connected using wire end ferrules with
insulating caps. Terminals which are not assigned in the factory must
not be otherwise assigned by the user. We recommend shielding
all encoder connecting leads and earthing the shield at one end.
Earthing at both ends is recommend to avoid RF interference or if
equipotential bonding conductors are installed over long distances.
Sensor connecting leads should not be laid in the same trunking as
the mains power supply cable and output contact leads.
3.1 Connecting the voltage supply
AC voltage connection It is possible to switch between two different alternating voltage
ratings by means of the voltage selector switch at the side of the
unit. The higher of the two alternating voltage ratings (48 VAC or
230 VAC) is preset by the factory.
115 VAC
(24 VAC)
230 VAC
(48 VAC)
➜ Set the required alternating voltage with the voltage selector
switch.
➜ Connect the supply voltage to connections 2 and 3 in accor-
dance with the terminal diagram.
