Connections on the front side
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
192
of 328
7.15
Encoder
evaluation
HIPERFACE
®
The encoder evaluation is provided with a HIPERFACE
®
-interface.
The encoders, which meet the following te
chnical specifications, can be used:
Voltage supply 10 V
DC
Signal level HIPERFACE
®
- specification of the process data
channel (~1 V
SS
; REFSIN/REFCOS 2.5V)
Current input Max. 250 mA

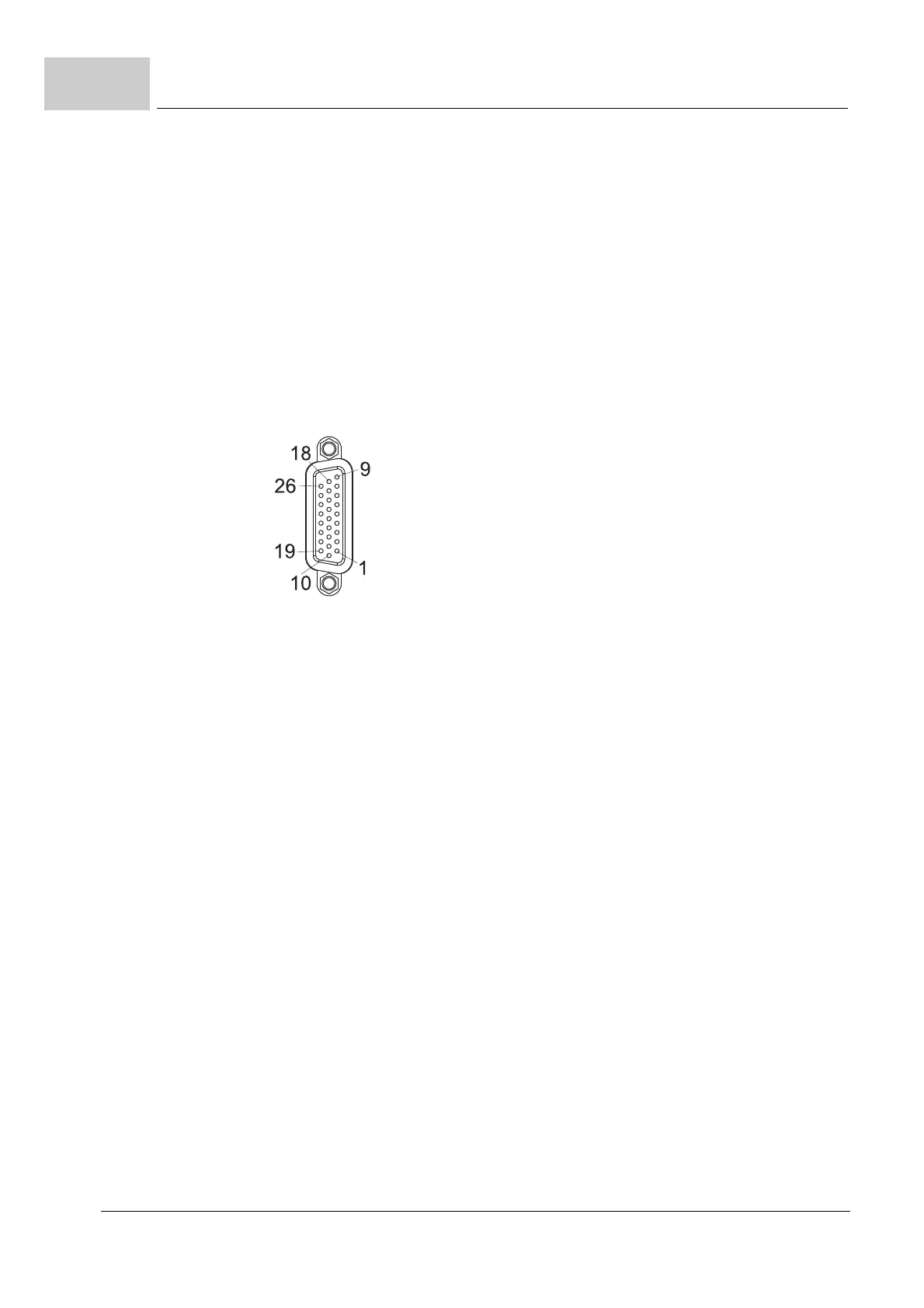

D-sub-connector
26-pin
1 GND encoder supply
2 +10 V encoder supply
3 re
served *
4 COS +
5 COS -
6 SIN +
7 SIN -
8 re
served *
9 re
served *
10 re
served *
11 re
served *
12 re
served *
13 re
served *
14 re
served *
15 re
served *
16 re
served *
17 T
emperature +
18 T
emperature -
19 RS48
5 Data +
20 RS48
5 Data -
21 re
served *
22 re
served *
23 re
served *
24 re
served *
25 re
served *
26 re
served *
* do not occupy
