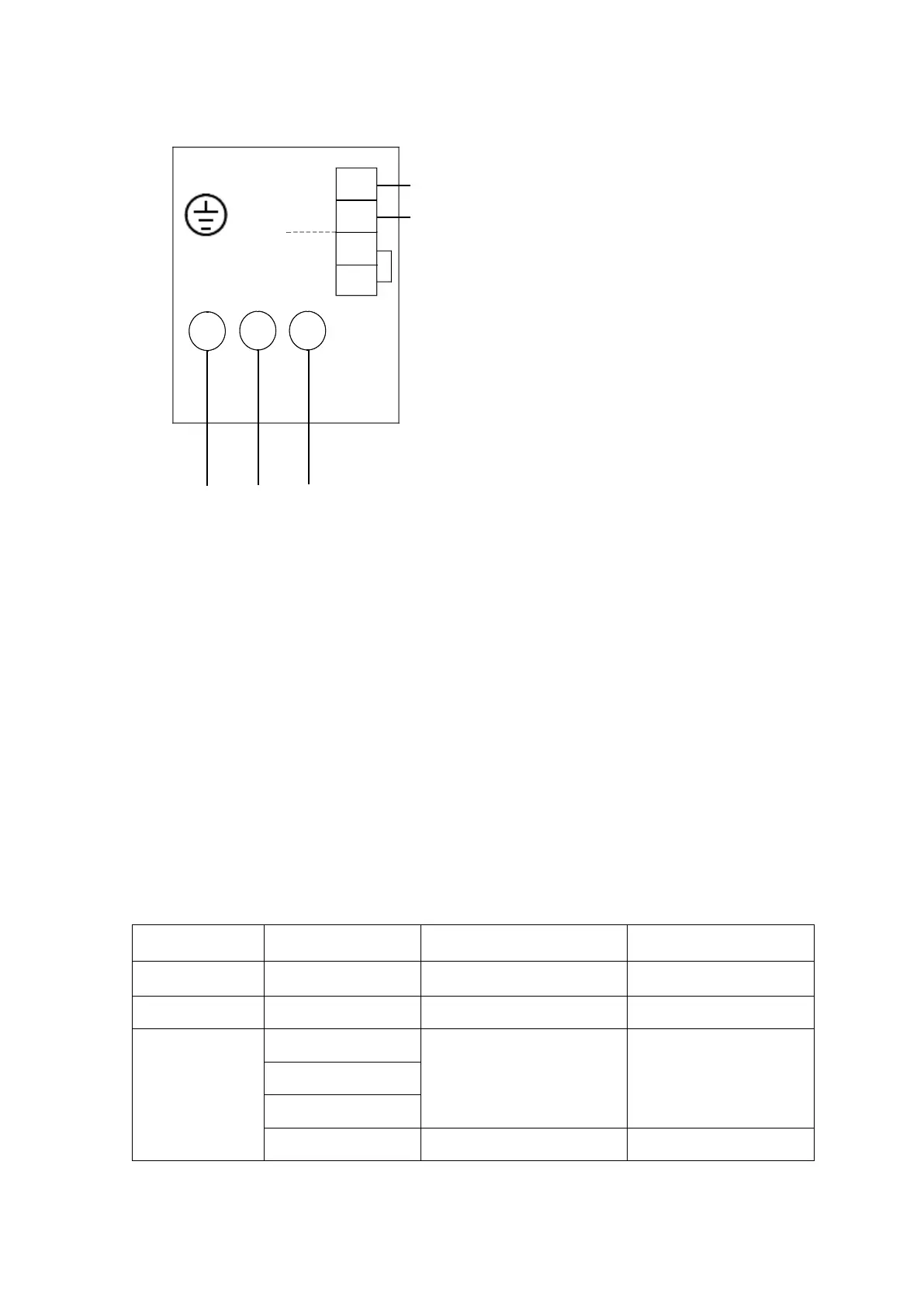

Figure 3B: Pole assignment with thermal sensor and brake at a motor size of 132
Attention:
At the temperature sensor KTY 84 the polarity must be considered while connecting. Please, comply
with the safety notes in Chapter 4
Table 4 shows the cable leads of the terminal boxes and the main connector pin assignment together
with the permissible torque specification.
On the connections for the cable leads we recommend the use of EMC connectors.
When tightening the terminal screws, it is recommended to hold against the conductor, to keep the
terminal board free from torsion forces.
Terminal box
size
Cable entries
Number of main
connection terminals
Terminal torques in Nm
□156
1 x M40 + 1 x M25
3 x M6
3,0
□196
1 x M50 + 1 x M25
3 x M8
6,0
□258
2 x M25 + 1 x M25
3 x M8
6,0
2 x M40 + 1 x M25
2 x M63 + 1 x M25
2 x M63 + 1 x M25
3 x M10
10,0
Table 4: Terminal box versions
L1
U
L2
L3
V
W
K -
K +
Reserv
e
gelb/ yellow
schw./blac
k
K +
K -
schw./blac
k
gelb/ yellow
