Baumuller DSD2 Series User Manual

TAM 00699 31
DSD2 045 – 132 04/2018
Three-phase synchronous motor English
9.6 Coolantconsistency
The coolant must satisfy the following specifications:
Conditions
Unit
Value
Maximum permissiblesystempressure
bar
6
Temperature of coolant- for motor
°C
10 to 25
pH value (at 20 °C)
---
6.5 to 9
Overall hardness
mmol / l
1.43 to 2.5
Chloride - Cl-
mg / l
< 200
Sulfate - SO
4
²-
mg / l
< 200
Oil
mg / l
< 1
Permissible particle size of solid foreign objects,
particles (e.g., sand)
mm
< 0.1
Table 8: Coolant consistency
Clean water that is free of dirt and suspended matter must be used as a coolant.
9.7 Min. coolant temperature against ambient temperature and humidity

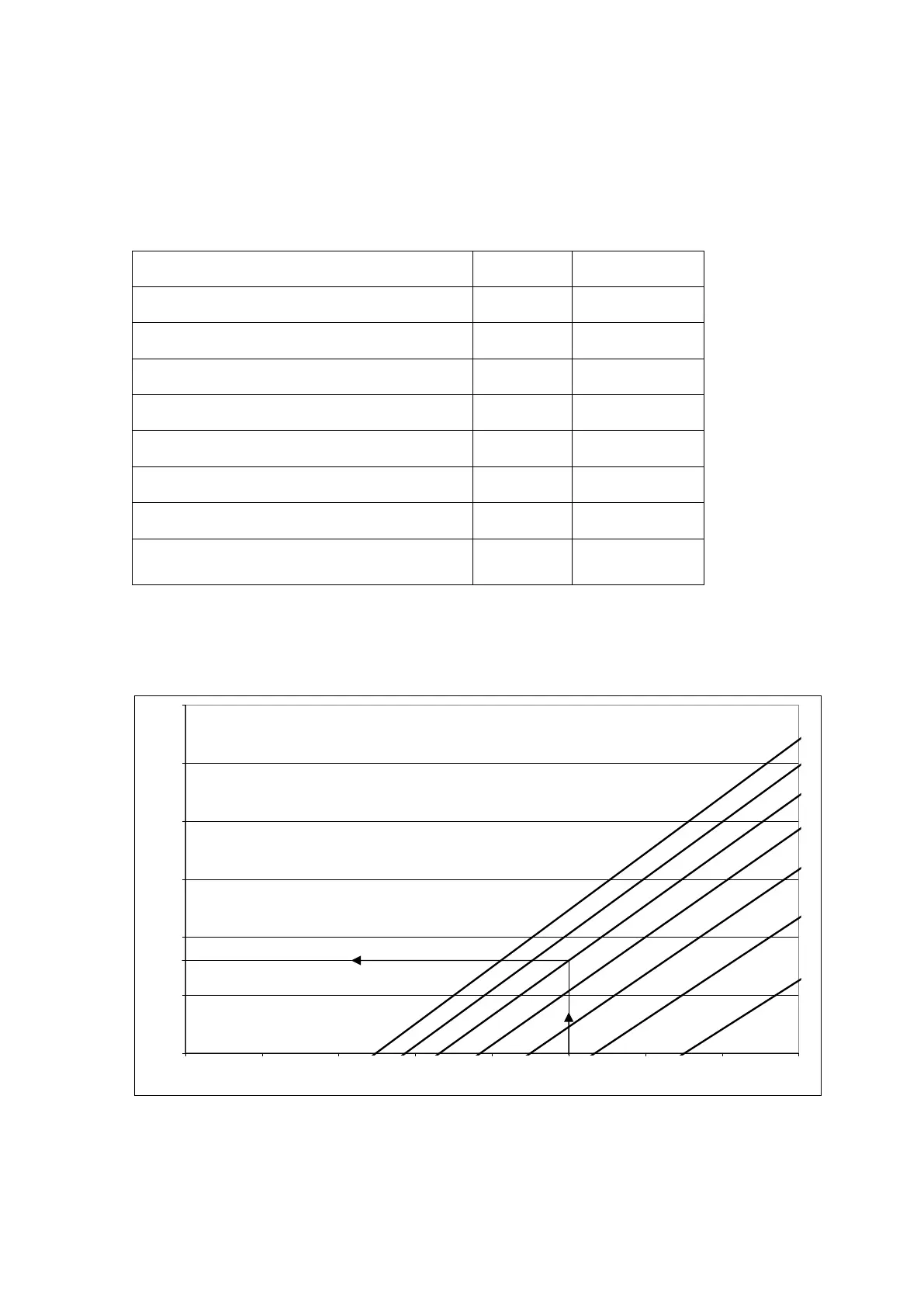

Figure 12: Determination of the coolant temperature
The allowed coolant temperature depends on relative humidity and ambient temperature. For example
with an ambient temperature of 25 °C and a relative humidity of 65 % the minimum coolant temperature is
25% rel. humidity
35% rel. humidity
45% rel. humidity
55% rel. humidity
65% rel. humidity
75% rel. humidity
85% rel. humidity
10
15
20
25
30
35
40
0 5 10 15 20 25 30 35 40
ambient temperature (°C)
min. coolant temperature (°C)
