Baumuller DSD2 Series - Type Plate

TAM 00699 7
DSD2 045 – 132 04/2018
Three-phase synchronous motor English
2.3 Type plate
The type plate is used to identify each electric motor. The unique motor number is clearly shown on each
type plate and is essential for internal tracking procedures. It must be possible to read the type plate at all
times. Never remove the type plate from your motor.
Type plate data:

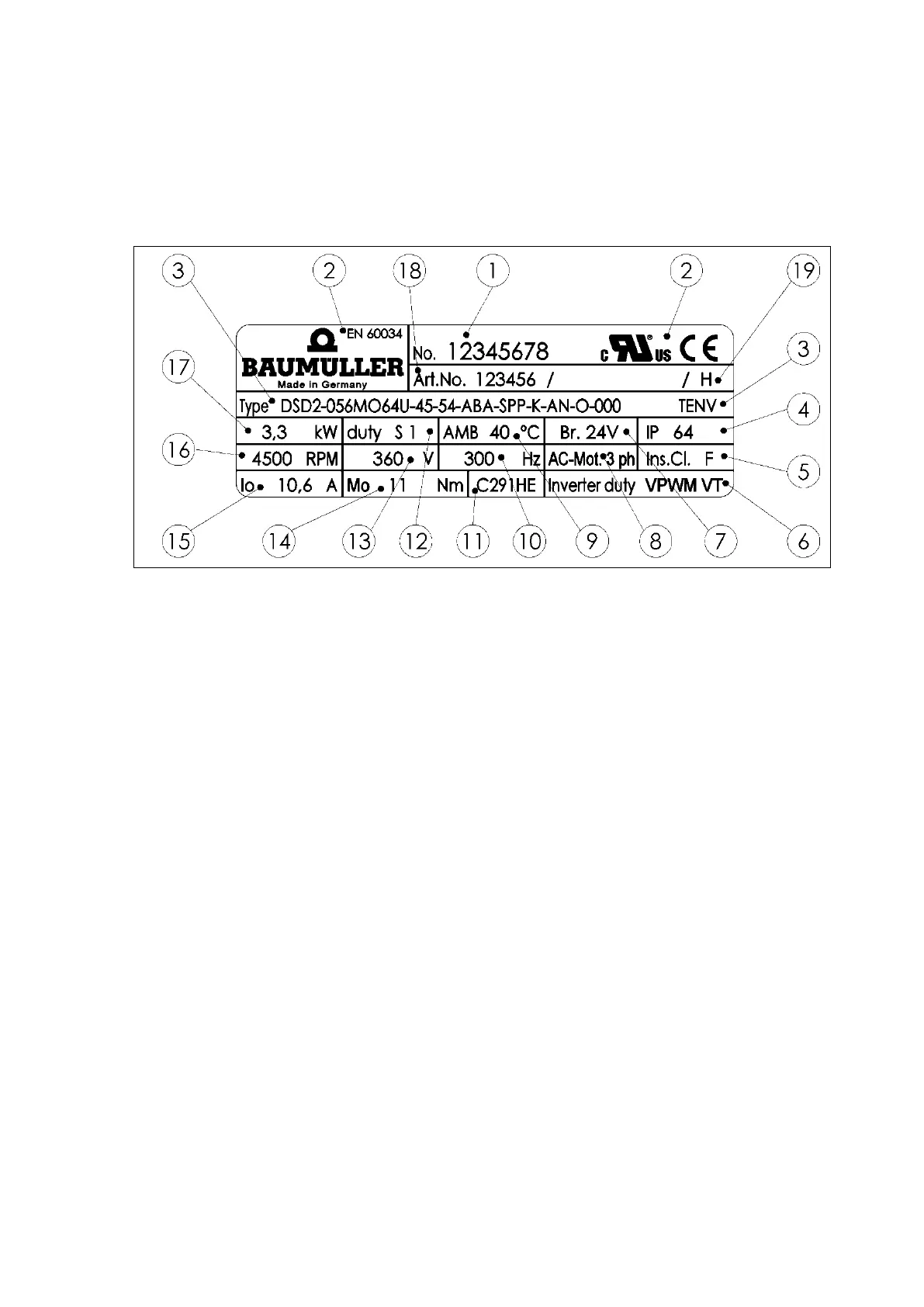

Figure 1: Type plate
1 →
Motor number
2 →
Standards and approbation
3 →
Motor type / designation
4 →
Motor protection class
5 →
Heat category (class of insulation VDE)
6 →
Motor is powered with converter
7 →
(optional) Supply voltage of the brakes DC
8 →
Motor type: 3-phase motor
9 →
Permitted ambient temperature
10 →
Rated frequency
11 →
Isolation system UL
12 →
Motor operating type
13 →
Rated voltage U
N
14 →
Standstill torque Mo
15 →
Standstill current lo
16 →
Rated speed n
N
17 →
Rated output P
N
18 →
Article number
19 →
Kind of balancing
