Baxi 124 Combi - 5.0 Dimensions and Fixings

12

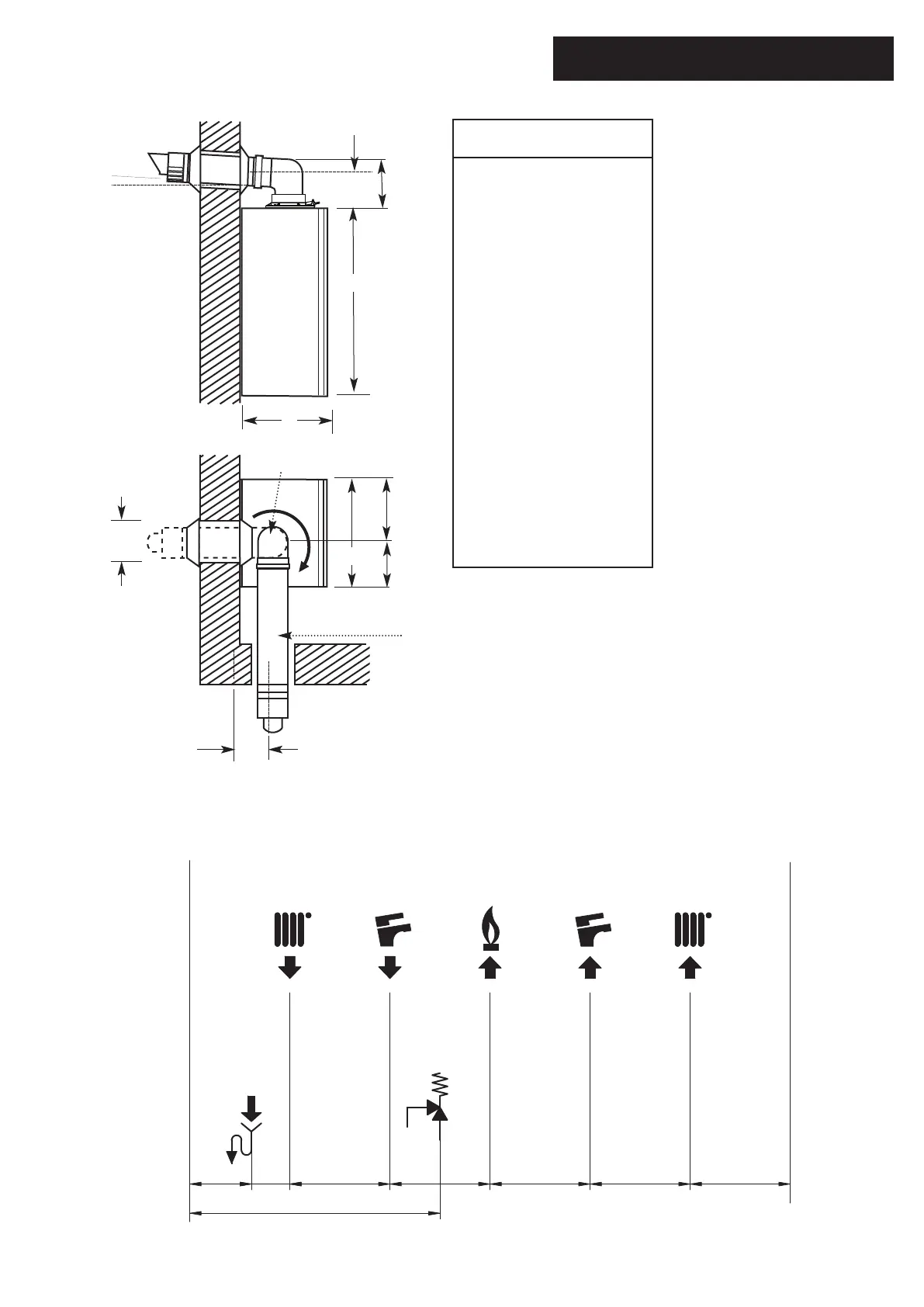

5.0 Dimensions and Fixings
© Baxi Heating UK Ltd 2017
360° Orientation
Flue Ø 100mm
D
C
B
A
E
G
F
At least 1.5°
H
J
Heating
Flow
(22mm)
Hot Water
Outlet
(15mm)
Gas
Inlet
(22mm)
Cold Water
Inlet
(15mm)
Heating
Return
(22mm)
Pressure
Relief
Valve
(15mm)
Condensate
Drain
40 mm
25
mm
65 mm 65 mm 65 mm 65 mm 65 mm
162,5 mm
Boiler
Side
Boile
r
Side
Dimensions
A 700mm
B 300mm*
*This can be reduced to 290mm by
removing the boiler control access flap
C 390mm
D 116mm Ø Min.
E 160mm
(207mm for 80/125mm
flue systems)
F 130mm
G 106mm
H 228mm
J 162mm
There must be no part of the air duct
(white tube) visible outside the property.
