23
9.0 Installation
© Baxi Heating UK Ltd 2016
9.1 Unpacking & Initial Preparation
IMPORTANT
RISK ASSESSMENT - Before commencing the installation
it is recommended that the ‘Five Steps to Risk
Assessment’ document published by the HSE is consulted,
and an assessment performed as described.
GAS SUPPLY - The gas supply, gas type and pressure
must be checked for suitability before connection (see
Section 7.4).
1. Remove the banding and the cardboard sleeve. Remove the
polystyrene top piece and installation kit (Fig. 17).
2. After considering the site requirements (see Section 7.0)
position the fixing template (Fig. 19) on the wall ensuring it is
level both horizontally and vertically.
3. Mark the position of the two most suitable fixing slots for
the wall plate.
4. Mark the position of the centre of the flue hole (rear exit).
For side flue exit, mark as shown (Fig. 18).
5. If required, mark the position of the gas and water pipes.
Remove the template.
6. Cut the hole for the flue (minimum diameter 116mm).
7. Drill the wall as previously marked to accept the wall plugs
supplied. Secure the wall plate using the fixing screws.
8. Using a spirit level ensure that the plate is level (Fig. 19a)
before finally tightening the screws.
9.2 Flushing
1. Ensure that the system is thoroughly flushed and treated in
accordance with guidance given in Section 6.2 & BS 7593.
9.3 Fitting The Boiler
1. Remove the sealing caps from the boiler connections.
NOTE: A small amount of water may drain from the boiler
once the caps are removed.
2. Lift the boiler using the lower polystyrene. The boiler should
be lifted by TWO PEOPLE. Engage the mounting bracket at
the top rear of the boiler on the wall plate (Fig. 20) (see Safe
Manual Handling page 5).
3. Identify the valves prior to fitting to the boiler (Fig. 21).
4. Insert the sealing washers between the valves, boiler
connections and copper tails.
5. Tighten all the connections.

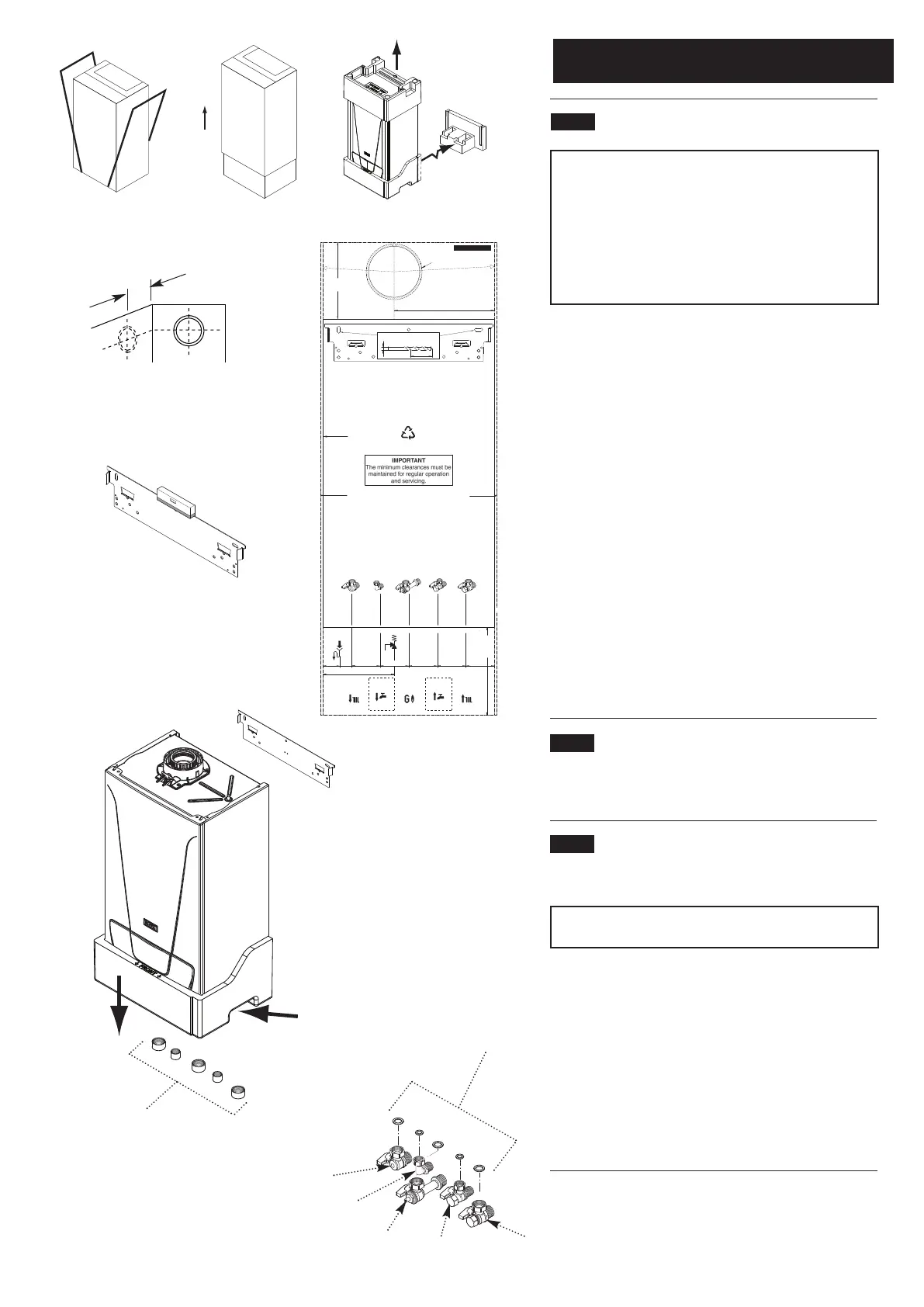

Fig. 21
130mm
For Side Flue Exit
Fig. 18
Fig. 19
Fig. 17
Pressure
Relief
Valve
(15mm)
Condensate
Drain
Part No. 7659616-01 (4/16)
5 mm Minimum
Side Clearance
5 mm Minimum
Side Clearance
116mm Dia Minimum
Aperture For Flue Tube
Side Flue
Centre Line
Vertical Flue
Centre Line
175 mm
Minimum
Clearance
Profile of
Outercase
228 mm
170mm
Minimum
Clearance
Boiler Wall Mounting Plate
Fixing Slots
38.5mm
26.5
mm
65mm 65mm 65mm 65mm 65mm
Ø 8 mm
50 mm
162.5 mm (PRV)
Hot Water
Outlet
(15mm)
Combi Only
Not System
Cold Water
Inlet
(15mm)
Heating
Return
(22mm)
Heating
Flow
(22mm)
Gas
Inlet
(22mm)
Combi Only
Not System
Part No. 7659616
200mm
Recommended
SNAP OFF
Fig. 19a
Fig. 20
Remove Sealing Caps from
under the Boiler before lifting
into position
Sealing Washers
Heating
Flow
Heating
Return
DHW
Outlet
Cold Water
Inlet
Gas
LIFT HERE
BOTH SIDES
