1.0 Introduction
© Baxi Heating UK Ltd 2017
1.1 Description
1. The Baxi Combi 100 Range are fully automatic gas fired wall
mounted condensing combination boilers. They are room sealed
and fan assisted, and will serve central heating and mains fed
domestic hot water.
2. The boiler is set to give a maximum output of :-
24 models - 24 kW DHW
21.2 kW CH Pnc (Condensing)
28 models - 28 kW DHW
25.3 kW CH Pnc (Condensing)
3. The boiler is factory set for use on Natural Gas (G20). It can
be adapted to operate on Propane (G31) - see Section 10.1
‘Gas Type Check’.
4. The boiler is suitable for use only on fully pumped sealed
heating systems. Priority is given to domestic hot water.
5. The boiler data badge gives details of the model, serial
number and Gas Council number and is situated on the control
box. It is visible when the case front panel is removed (Fig. 2).
6. The boiler model, serial number and Gas Council number are
also shown on the information label behind the boiler control
flap (Fig. 1). This is for user reference.
7. The boiler is intended to be installed in residential/domestic
environments on a governed meter supply only.
8. The boiler must be installed with one of the purpose
designed flues such as one of the standard horizontal telescopic
flue kits detailed in the Flue Installation Guide .
9. All systems must be thoroughly cleansed, flushed and
treated with inhibitor (see section 6.2).
1.2 Optional Extras
Various timers, external controls, etc. are available as optional
extras. Full details are contained in the relevant sales literature.
1.3 Contents of Pack
The pack contains:-
• Boiler
• Valve & Copper Tail Set
• Template
• Fittings & Literature Pack
NOTE: These Installation & Servicing Instructions MUST be
read in conjunction with the Flue Installation Guide supplied
in the Literature Pack.

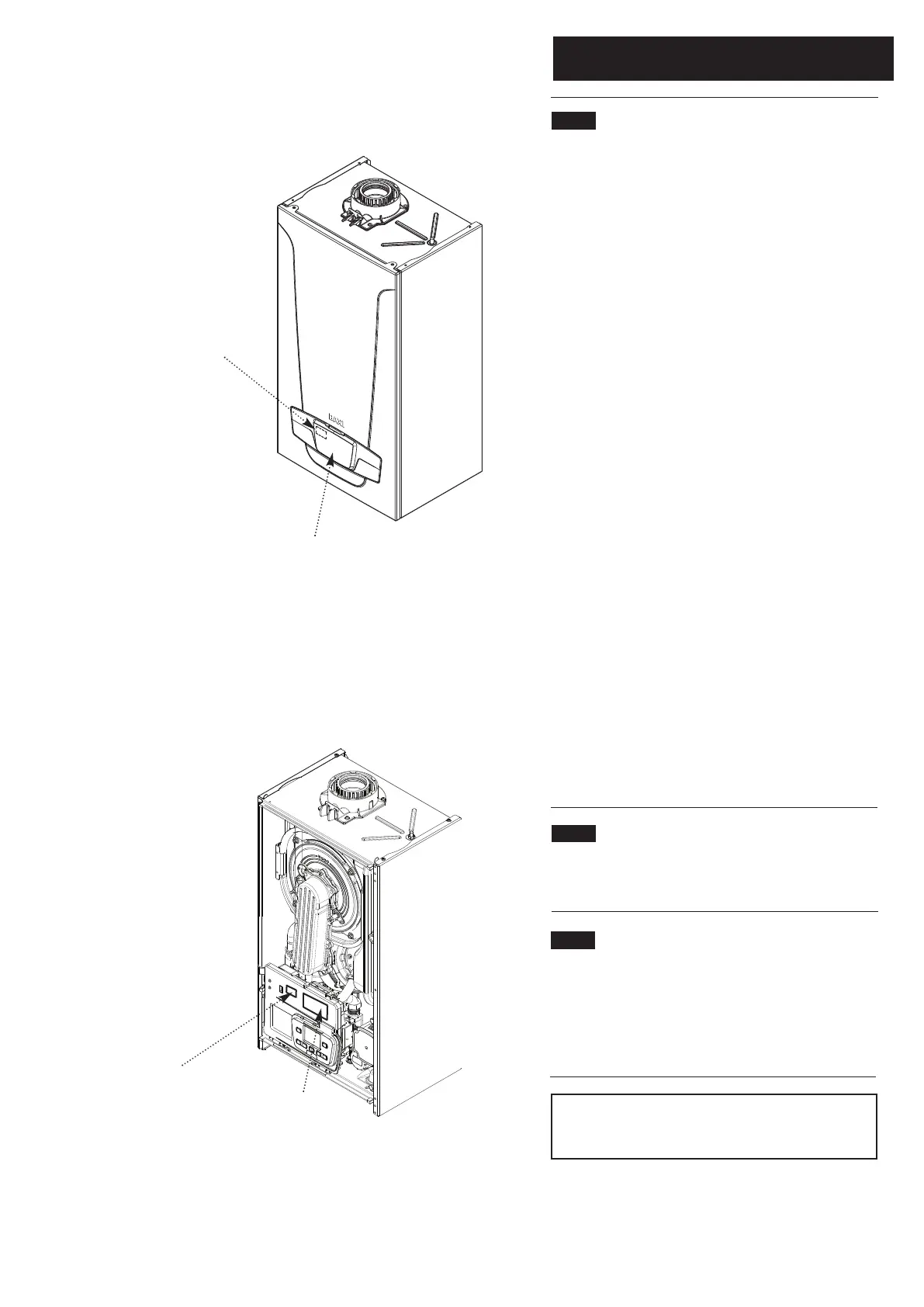

Fig. 1
Control Flap
Fig. 2
Information Label
Data Badge
Gas Type Label
